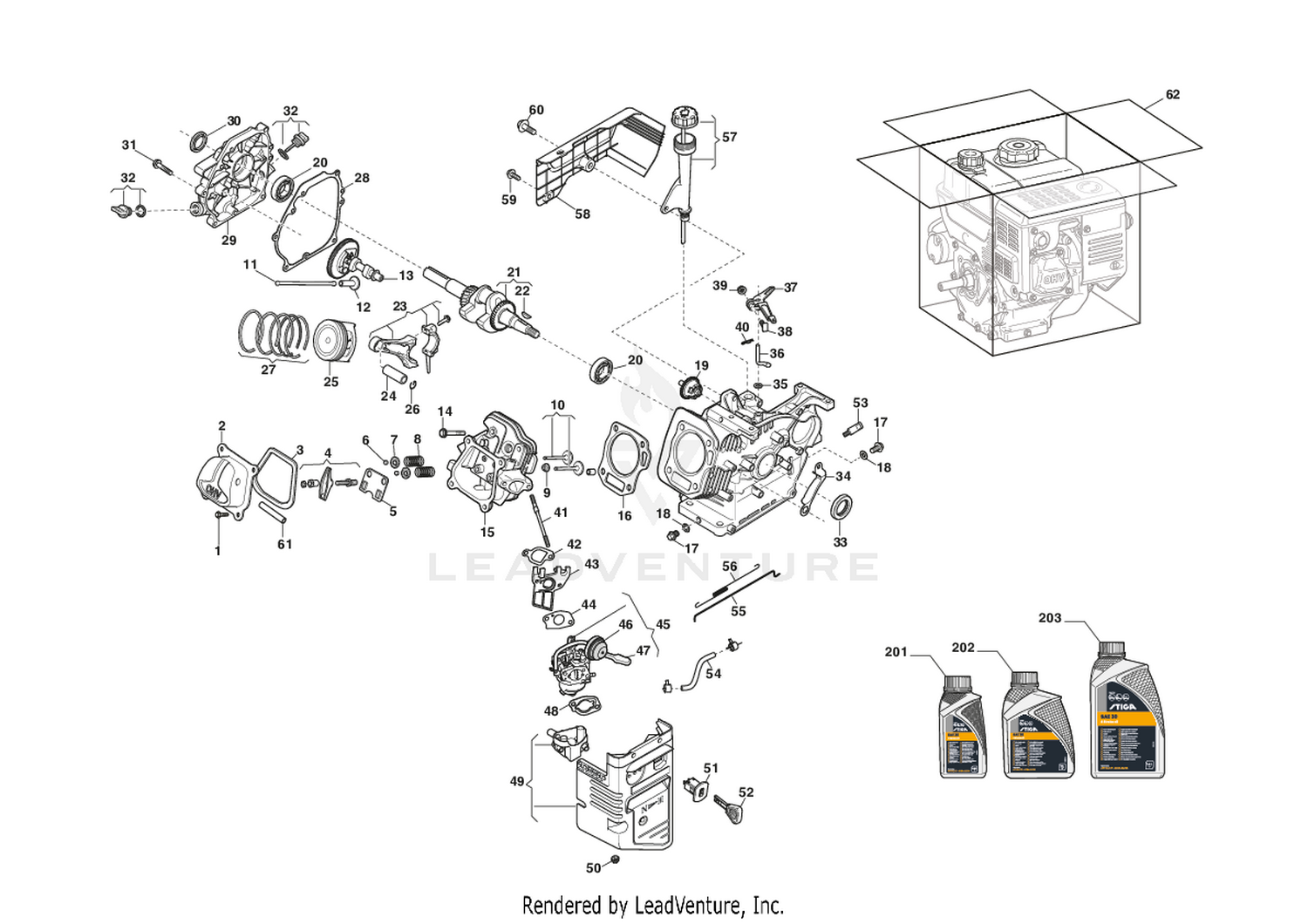

Engine WS 210 - Piston, Crankshaft

Engine WS 210 - Piston, Crankshaft

Parts (68)

RefPart NumberDescription
1 118551334/0 Screw Price: Call Us
2 118550784/0 Cover Price: Call Us
3 118551163/0 Gasket Price: Call Us
4 118550273/0 Valve Arm Set Price: Call Us
5 118550622/0 Plate This part replaces 118550475/0. Price: Call Us
6 118551166/0 Valve keeper Price: Call Us
7 118551167/0 Retainer Price: Call Us
8 118550896/0 Spring Price: Call Us
9 118551117/0 Seal This part replaces 118551168/0. Price: Call Us
10 118551203/0 Valve Assy, Intake + Exhaust Price: Call Us
11 118550474/0 Push Rod Price: Call Us
12 118550623/0 Valve Lifter Price: Call Us
13 118551528/0 Camshaft Price: Call Us
14 118551200/0 Screw Price: Call Us
15 118551162/0 Cylinder Head Price: Call Us
16 118550783/0 Gasket Price: Call Us
17 118550460/0 Drain Plug bolt Price: Call Us
18 118550793/0 Washer , Drain Plug Price: Call Us
19 118550787/0 Speed Governor Assy Price: Call Us
20 118550280/0 Ball Bearing Price: Call Us
21 118552581/0 Crankshaft This part replaces 118550800/0. Price: Call Us
22 118550288/0 Woodruff Key Price: Call Us
23 118550519/0 Connecting Rod Price: Call Us
24 118550786/0 Piston Pin Price: Call Us
25 118551526/0 Piston Price: Call Us
26 118551201/0 Washer, Piston Pin Price: Call Us
27 118551527/0 Piston, Ring Set Price: Call Us
28 118550782/0 Crankcase Gasket Price: Call Us
29 118551292/0 Crankcase Cover Price: Call Us
30 118551338/0 Oil Seal Price: Call Us
31 118551199/0 Screw Price: Call Us
32 118551160/0 Oil Tank Cap Price: Call Us
33 118550792/0 Oil Seal Price: Call Us
34 118550795/0 Plate Price: Call Us
35 118550858/0 Washer Price: Call Us
36 118550459/0 Shaft, Governor Arm Price: Call Us
37 118551314/0 Arm Governor Price: Call Us
38 118550805/0 Screw Price: Call Us
39 112292102/0 Nut Price: Call Us
40 118550856/0 Cotter Pin Price: Call Us
41 118551142/0 Stud This part replaces 118551335/0. Price: Call Us
42 118551174/0 Carburetor Gasket Price: Call Us
43 118552373/0 Carburettor insulator Price: Call Us
44 118551173/0 Carburetor Gasket Price: Call Us
45 118551529/0 Carburetor Price: Call Us
46 118551184/0 Air Purge Pump Price: Call Us
47 118550886/0 Choke Lever Price: Call Us
48 118552368/0 Spacer Price: Call Us
49 118551320/0 Air Cleaner Assy Price: Call Us
50 118550806/0 Nut Price: Call Us
51 118552433/0 Starting Switch Price: Call Us
52 118550639/1 Switch Key Price: Call Us
53 118550794/0 Valve Assy Price: Call Us
54 118551342/0 Fuel Hose Price: Call Us
55 118550493/0 Governor Rod Price: Call Us
56 118550492/0 Spring Price: Call Us
57 118551291/0 Oil Filler Assy Price: Call Us
58 118551346/0 Cover Price: Call Us
59 118550816/0 Screw Price: Call Us
60 9942-0825-16 Screw Price: Call Us
61 118551339/0 Breather Pipe Price: Call Us
62 118551356/2 Engine Assembled - WS 210 Price: Call Us
201 1111-9234-01 Engine oil, SAE 30 - 0,6 L Price: Call Us
201 1111-9237-01 Engine oil, 10W-30 - 0,6 L Price: Call Us
202 1111-9235-01 Engine oil, SAE 30 - 1 L Price: Call Us
203 1111-9236-01 Engine oil, SAE 30 - 1,4 L Price: Call Us
203 1111-9238-01 Engine oil, 10W-30 - 1,4 L Price: Call Us
203 1111-9242-01 Engine oil, 5W-30 - 1,4 L Price: Call Us
