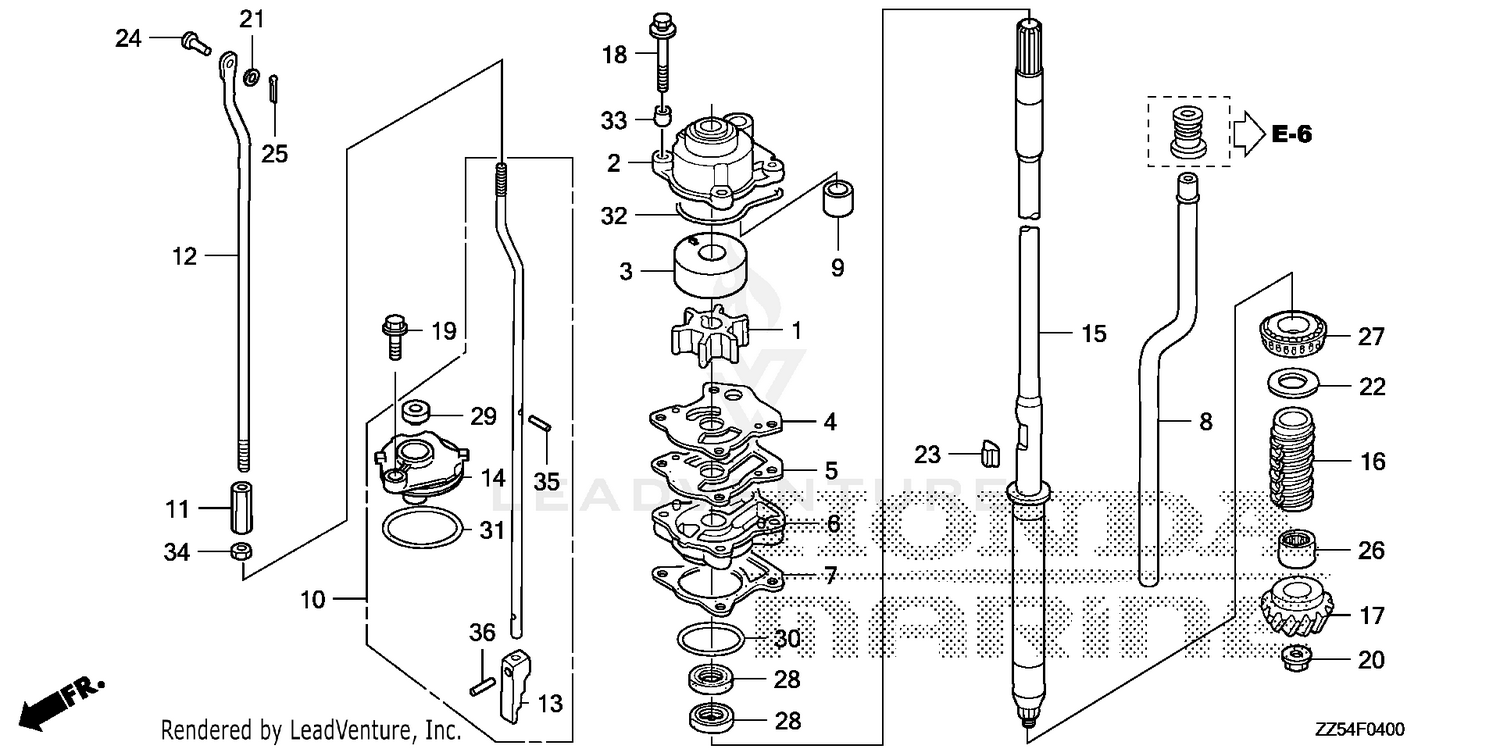

| Ref | Part Number | Description |
|---|
| 1 |
19210-ZV5-003 |
IMPELLER, PUMP Price: $34.98 |
| 2 |
19221-ZV5-000 |
HOUSING, IMPELLER Price: $36.28 |
| 3 |
19223-ZV5-000 |
LINER, PUMP Price: $19.80 |
| 4 |
19231-ZV5-000 |
COVER, IMPELLER Price: $16.32 |
| 5 |
19233-ZV5-000 |
GASKET B, IMPELLER Price: $8.86 |
| 6 |
19241-ZV5-000 |
HOUSING, WATER PUMP Price: $36.28 |
| 7 |
19242-ZV5-000 |
GASKET, WATER PUMP Price: $8.86 |
| 8 |
19251-ZV5-701 |
SEE PART DETAILS - PRI; TUBE, WATER Price: $58.06 |
| 9 |
19253-ZV5-000 |
RING, WATER TUBE SEAL Price: $5.94 |
| 10 |
24310-ZV5-702 |
ROD, SHIFT (L) Price: $108.70 |
| 11 |
24312-ZV5-000 |
JOINT, SHIFT ROD Price: $21.78 |
| 12 |
24320-ZV5-000 |
ROD A, SHIFT Price: $42.88 |
| 13 |
24341-ZV5-701 |
SEE PART DETAILS - PRI; ROD, PUSH Price: $79.70 |
| 14 |
24343-ZW4-000 |
HOLDER, SEAL Price: $68.86 |
| 15 |
41112-ZV5-701 |
SHAFT, VERTICAL (L) Price: $572.06 |
| 16 |
41116-ZV5-000 |
SLINGER, OIL Price: $16.34 |
| 17 |
41131-ZV5-000 |
GEAR, PINION Price: $151.66 |
| 18 |
90103-ZY1-000 |
BOLT-WASHER (6X40) Price: $8.00 |
| 19 |
90105-ZW9-000 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $3.94 |
| 20 |
90303-ZV5-000 |
NUT, SPECIAL FLANGE (12MM) Price: $8.86 |
| 21 |
90452-GK4-600 |
SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) Price: $1.76 |
| 22 |
90518-ZV5-000 |
SHIM, GEAR (40X46X0.10) (A) Price: $8.54 |
| 22 |
90519-ZV5-000 |
SHIM, GEAR (40X46X0.15) (B) Price: $8.54 |
| 22 |
90520-ZV5-000 |
SHIM, GEAR (40X46X0.30) (C) Price: $8.54 |
| 22 |
90521-ZV5-000 |
SHIM, GEAR (40X46X0.50) (D) Price: $8.54 |
| 23 |
90752-ZV5-003 |
KEY, WOODRUFF Price: $10.34 |
| 24 |
90754-921-010 |
PIN (5X17) Price: $11.94 |
| 25 |
90756-921-000 |
PIN, COTTER (1.6MM) Price: $1.98 |
| 26 |
91052-ZV5-003 |
BEARING, NEEDLE (7/8X11/8X1) Price: $40.72 |
| 27 |
91054-ZV5-003 |
BEARING (25X47X15) Price: $42.54 |
| 28 |
91251-ZV5-003 |
SEAL, WATER (17X30X7) Price: $9.86 |
| 29 |
91253-ZW4-003 |
SEAL, WATER (7MM) Price: $7.14 |
| 30 |
91351-740-003 |
O-RING (41.7X3.5) Price: $3.08 |
| 31 |
91353-ZV5-003 |
O-RING (47X3.1) Price: $4.06 |
| 32 |
91356-ZV5-000 |
O-RING, WATER PUMP Price: $5.32 |
| 33 |
91555-ZV5-000 |
COLLAR, IMPELLER HOUSING Price: $5.32 |
| 34 |
94002-08490-0S |
NUT, HEX. (8MM) Price: $1.94 |
| 35 |
94305-20122 |
PIN, SPRING (2X12) (Honda Code 1441591). Price: $2.18 |
