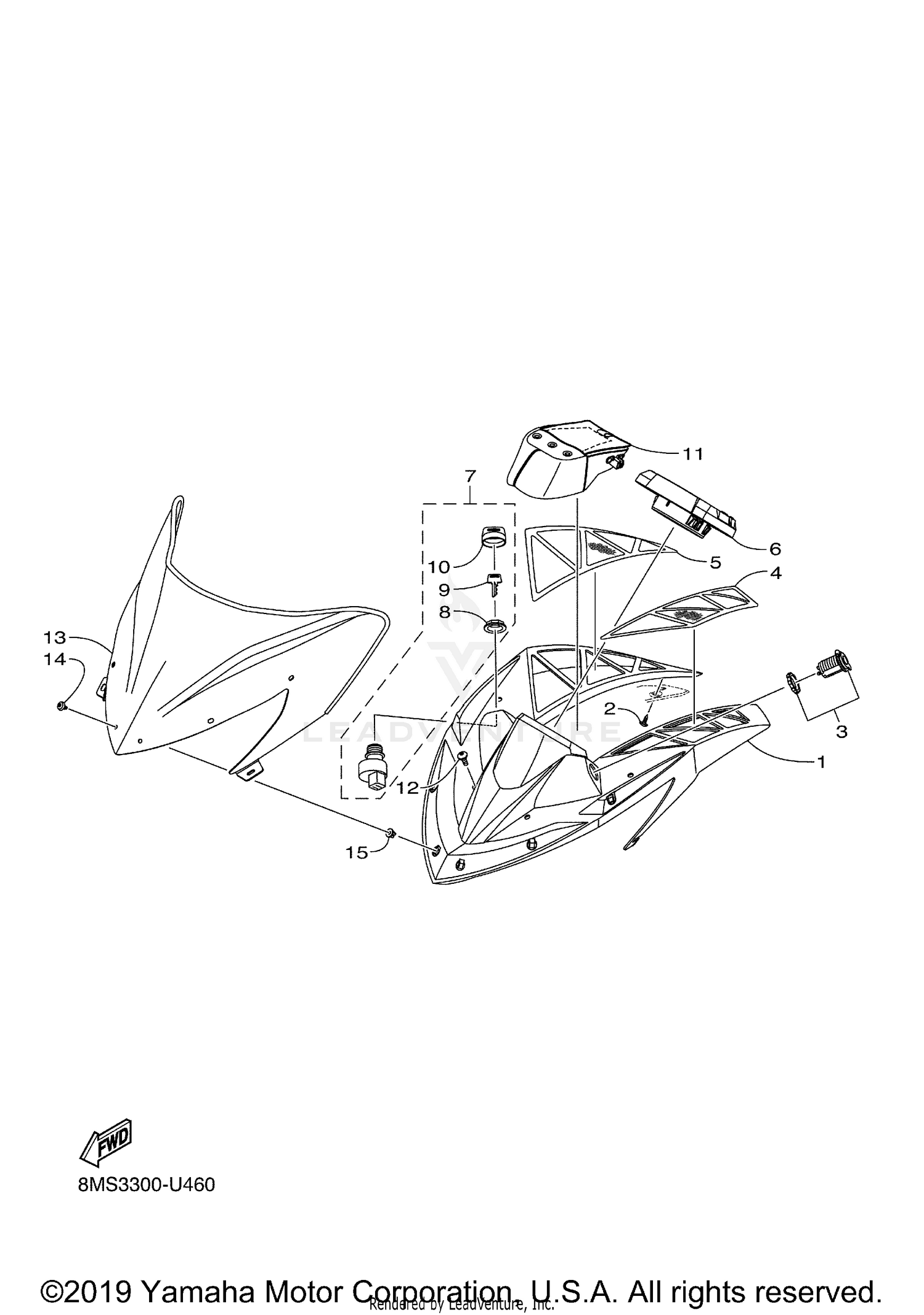

INSTRUMENT PANEL
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8MS-K7712-00-00 | PANEL, INSTRUMENT Price: $198.99 |
| 2 | 8KC-RA290-00-00 | SCREW Price: $2.25 |
| 3 | 8JP-H254B-00-00 | TERMINAL COMP. Price: $33.99 |
| 4 | 8MT-K715D-00-00 | SCREEN, INTAKE DUCT 1 Price: $52.99 |
| 5 | 8MT-K715E-00-00 | SCREEN, INTAKE DUCT 2 Price: $52.99 |
| 6 | 8JR-H3501-10-00 | SPEEDOMETER ASSY Price: $641.99 |
| 7 | 8JP-H2510-00-00 | MAIN SWITCH ASSY Price: $59.99 |
| 8 | 8JP-H2569-00-00 | NUT, MAIN SWITCH Price: $2.35 |
| 10 | 8JP-H2577-01-00 | CAP, KEY Price: $21.99 |
| 11 | SMA-8LR53-00-00 | BAG GOGGLE HOLDER This part replaces 8MT-RAY39-00-00. Price: $77.99 |
| 12 | 8JP-RA253-00-00 | SCREW, M6-1.0X18 Price: $2.30 |
| 13 | 8MR-K7210-30-00 | WINDSHIELD COMP. Price: $239.99 |
| 14 | 8JP-RA280-10-00 | SCREW, TAPPING M6X12 Price: $2.25 |
