Parts Catalog

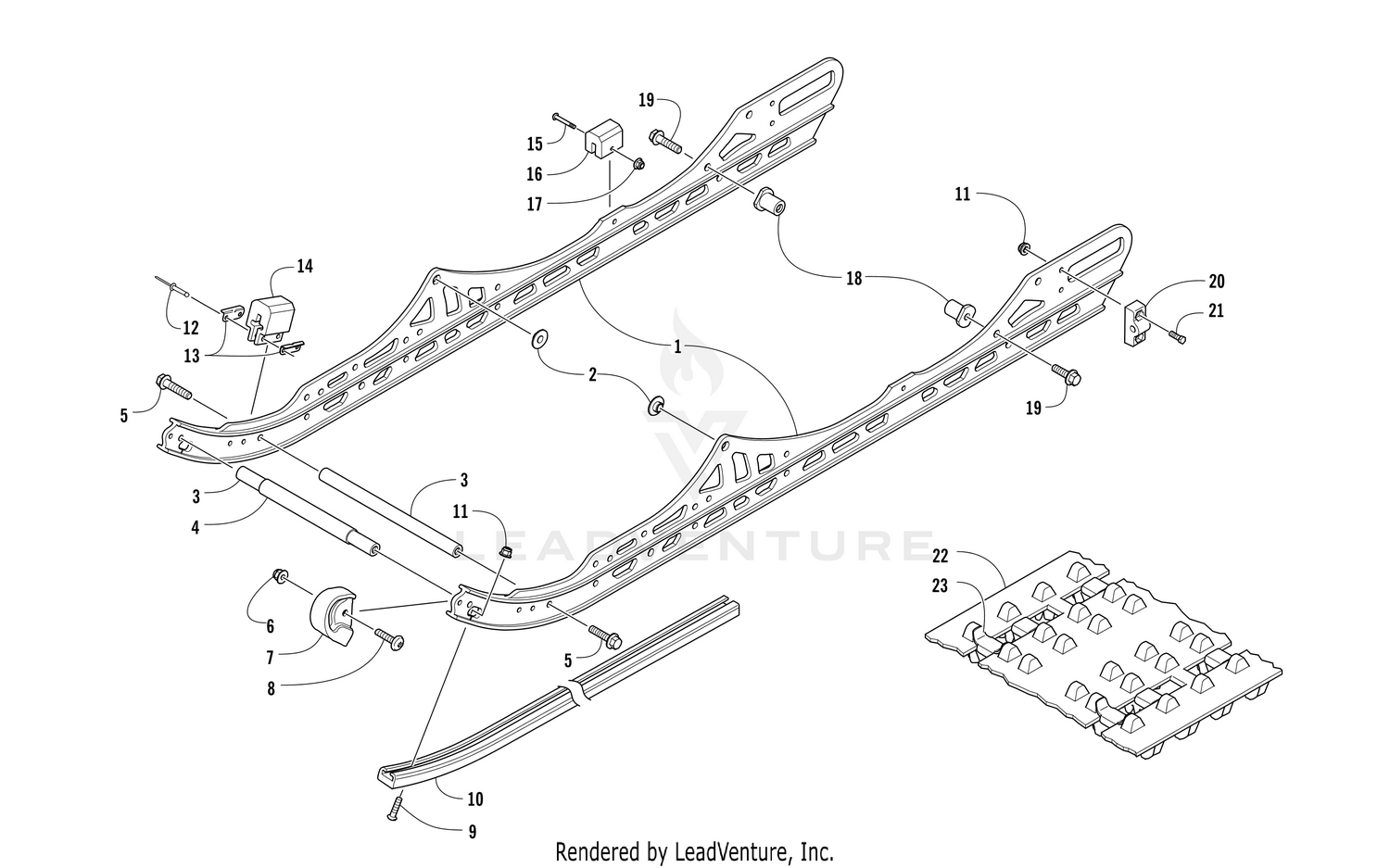

SLIDE RAIL AND TRACK ASSEMBLY [105553]

Parts (22)

Ref	Part Number	Description
0	2704-085	Complete Skid Frame Assembly Price: $4,753.75
1	3604-572	Rail, Formed Price: $316.95
2	3604-266	Insert, Rail Price: $3.51
3	3604-268	Axle Price: $31.95
4	2604-281	Spacer Price: $1.99
5	8408-826	Screw, Cap Price: $0.46
6	8427-602	Nut, Hex Price: $0.23
7	4604-093	End Cap, Slide Rail Price: $7.08
8	8476-625	Screw, Machine Price: $1.92
9	0123-859	Screw, Machine Price: $1.18
10	3604-186	Wearstrip, Slide Rail - Black Price: $32.95
11	8047-366	Nut, Lock Price: $0.46
12	8060-633	Rivet, Blind - DH Price: $1.20
13	0604-967	Bracket, Retaining Price: $3.75
14	0604-918	Pad, Shock Price: $14.49
15	8470-540	Screw, Machine Price: $1.45
16	1604-429	Pad, Shock Price: $7.23
17	8427-502	Nut, Lock Price: $1.07
18	3604-979	Axle Price: $3.75
19	8408-031	Screw, Cap Price: $2.30
20	0704-352	Block Price: $50.95
21	8002-042	Screw, Cap Price: $0.48
