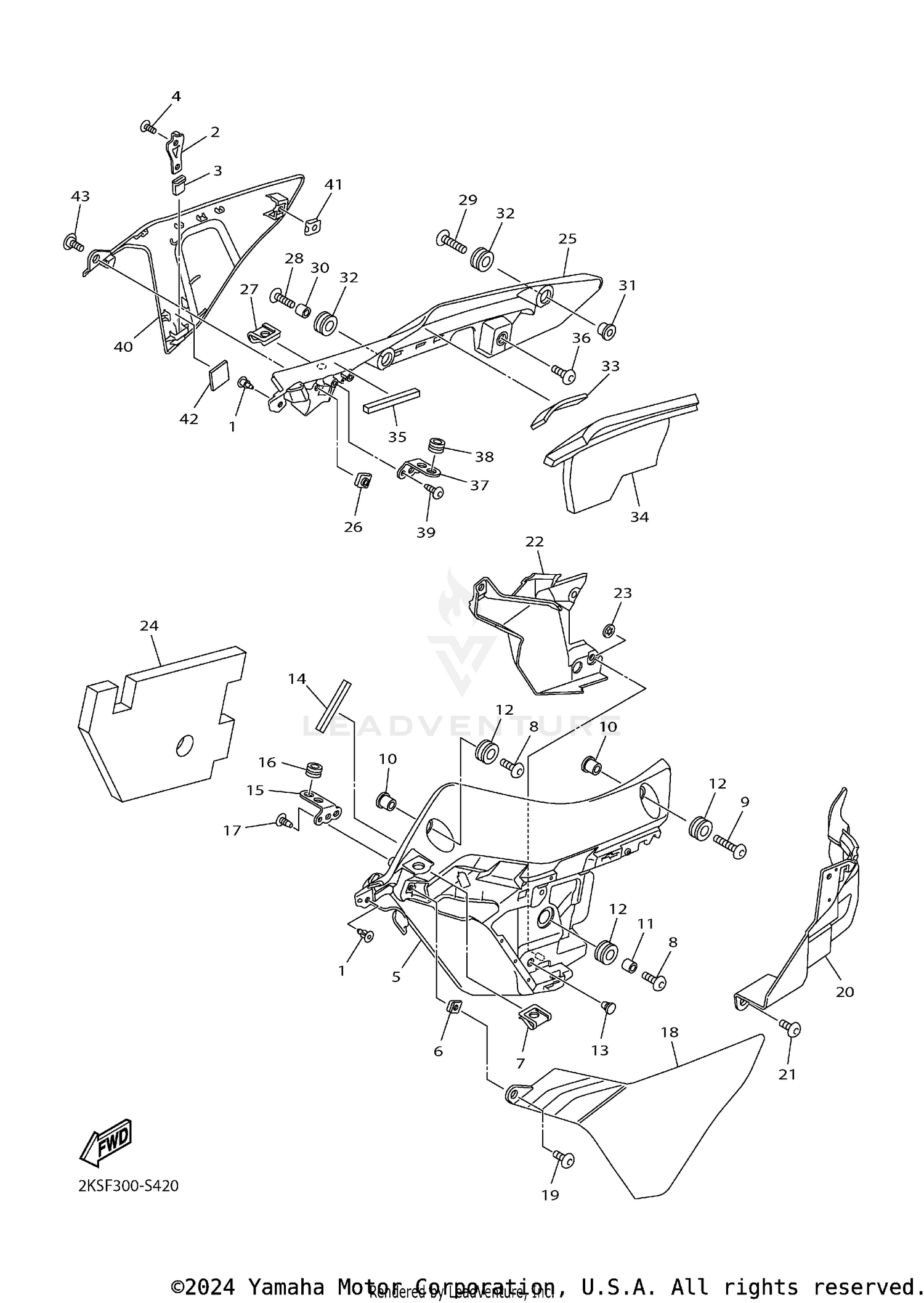

| Ref | Part Number | Description |
|---|
| 1 |
90269-06008-00 |
RIVET Price: $9.49 |
| 2 |
2CR-2833J-00-00 |
BRACKET 12 Price: $7.49 |
| 3 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 4 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 5 |
2CR-2836A-01-00 |
BRACKET 1 Price: $39.99 |
| 6 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 7 |
4XV-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 8 |
90149-06302-00 |
SCREW Price: $6.49 |
| 9 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 10 |
90387-06308-00 |
COLLAR Price: $6.49 |
| 11 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 12 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 13 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 14 |
2C0-28247-00-00 |
DAMPER 4 Price: $4.80 |
| 15 |
2CR-2833G-00-00 |
BRACKET 10 Price: $4.90 |
| 16 |
90480-10517-00 |
GROMMET Price: $9.49 |
| 17 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 19 |
90111-05045-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 20 |
2CR-2843J-01-00 |
COVER 3 Price: $18.99 |
| 21 |
90111-05045-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 22 |
2CR-2836F-00-00 |
BRACKET 3 Price: $16.49 |
| 23 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 24 |
2CR-28415-01-00 |
DAMPER 1 This part replaces 2CR-28415-00-00. Price: $65.99 |
| 25 |
2CR-2836E-00-00 |
BRACKET 2 Price: $35.99 |
| 26 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 27 |
4XV-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 28 |
90149-06302-00 |
SCREW Price: $6.49 |
| 29 |
90111-06030-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 30 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 31 |
90387-06308-00 |
COLLAR Price: $6.49 |
| 32 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 33 |
90520-04012-00 |
DAMPER, PLATE Price: $2.40 |
| 34 |
2CR-28455-00-00 |
DAMPER, 4 Price: $5.99 |
| 35 |
2C0-28247-00-00 |
DAMPER 4 Price: $4.80 |
| 36 |
90111-05045-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 37 |
2CR-2833H-00-00 |
BRACKET 11 Price: $4.35 |
| 38 |
90480-10517-00 |
GROMMET Price: $9.49 |
| 39 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 41 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 42 |
3TB-28217-00-00 |
DAMPER 1 Price: $5.99 |
