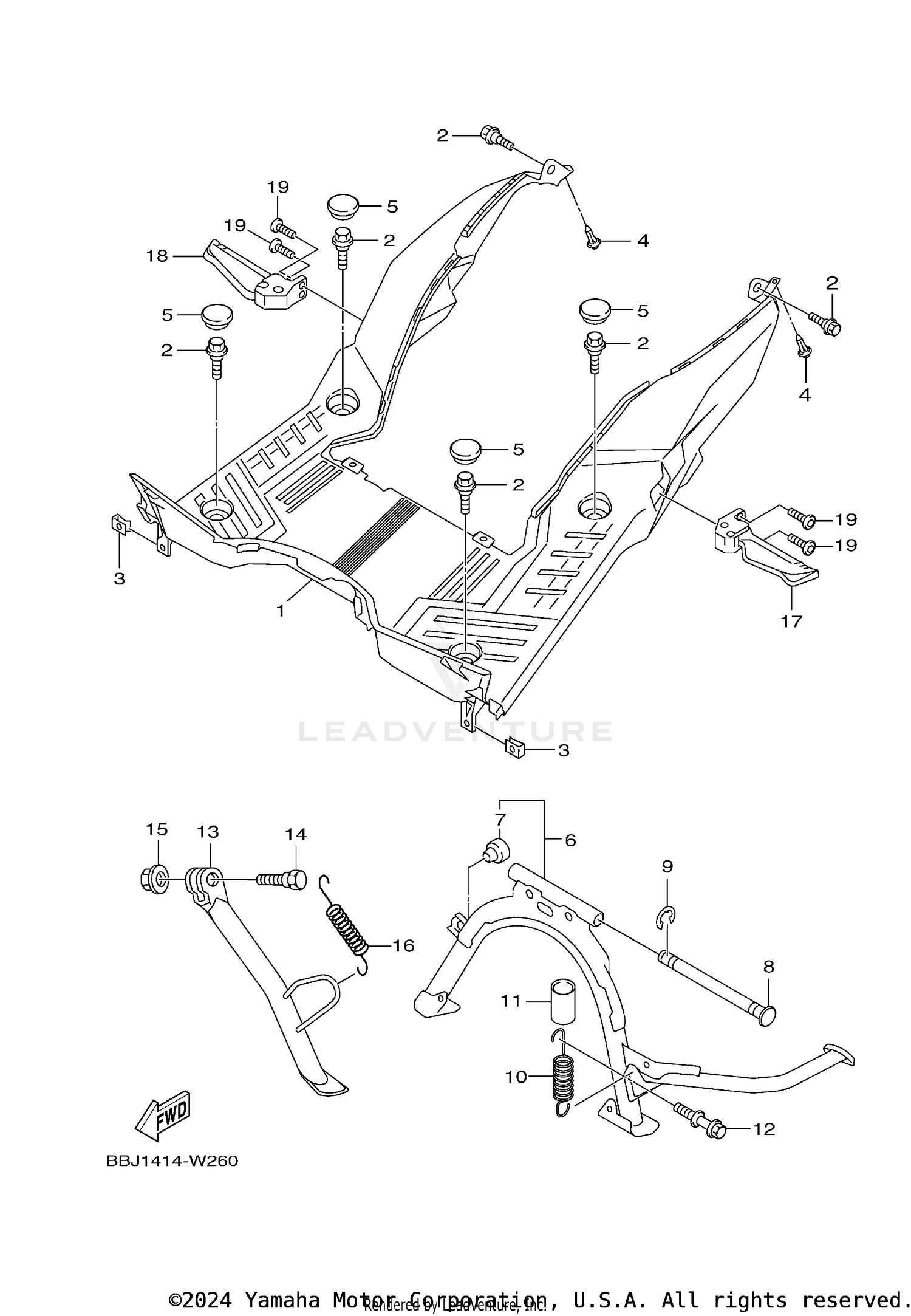

STAND & FOOTREST
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BBJ-F7481-00-00 | BOARD, FOOTREST Price: $46.99 |
| 2 | 90109-06885-00 | BOLT Price: $2.35 |
| 3 | 90183-05827-00 | NUT, SPRING Price: $1.65 |
| 4 | 90269-06803-00 | RIVET Price: $0.60 |
| 5 | 5HK-F7475-00-00 | CAP 1 Price: $0.80 |
| 8 | 2BM-F7112-00-00 | SHAFT, MAIN STAND Price: $4.00 |
| 9 | 99080-09600-00 | CIRCLIP (E) (99001-09600-00) This part replaces 99002-09600-00. Price: $3.20 |
| 10 | 90506-35807-00 | SPRING, TENSION Price: $5.49 |
| 11 | B8R-F247C-00-00 | HOSE 3 Price: $2.35 |
| 12 | 5ML-F7254-00-00 | HOOK Price: $2.35 |
| 14 | 90109-10005-00 | BOLT Price: $3.20 |
| 15 | 90185-10120-00 | NUT, SELF-LOCKING This part replaces 90185-10110-00. Price: $6.49 |
| 16 | 90506-26815-00 | SPRING, TENSION Price: $4.80 |
| 17 | BBJ-F7431-00-00 | FOOTREST, REAR 1 Price: $29.99 |
| 18 | BBJ-F7441-00-00 | FOOTREST, REAR 2 Price: $29.99 |
