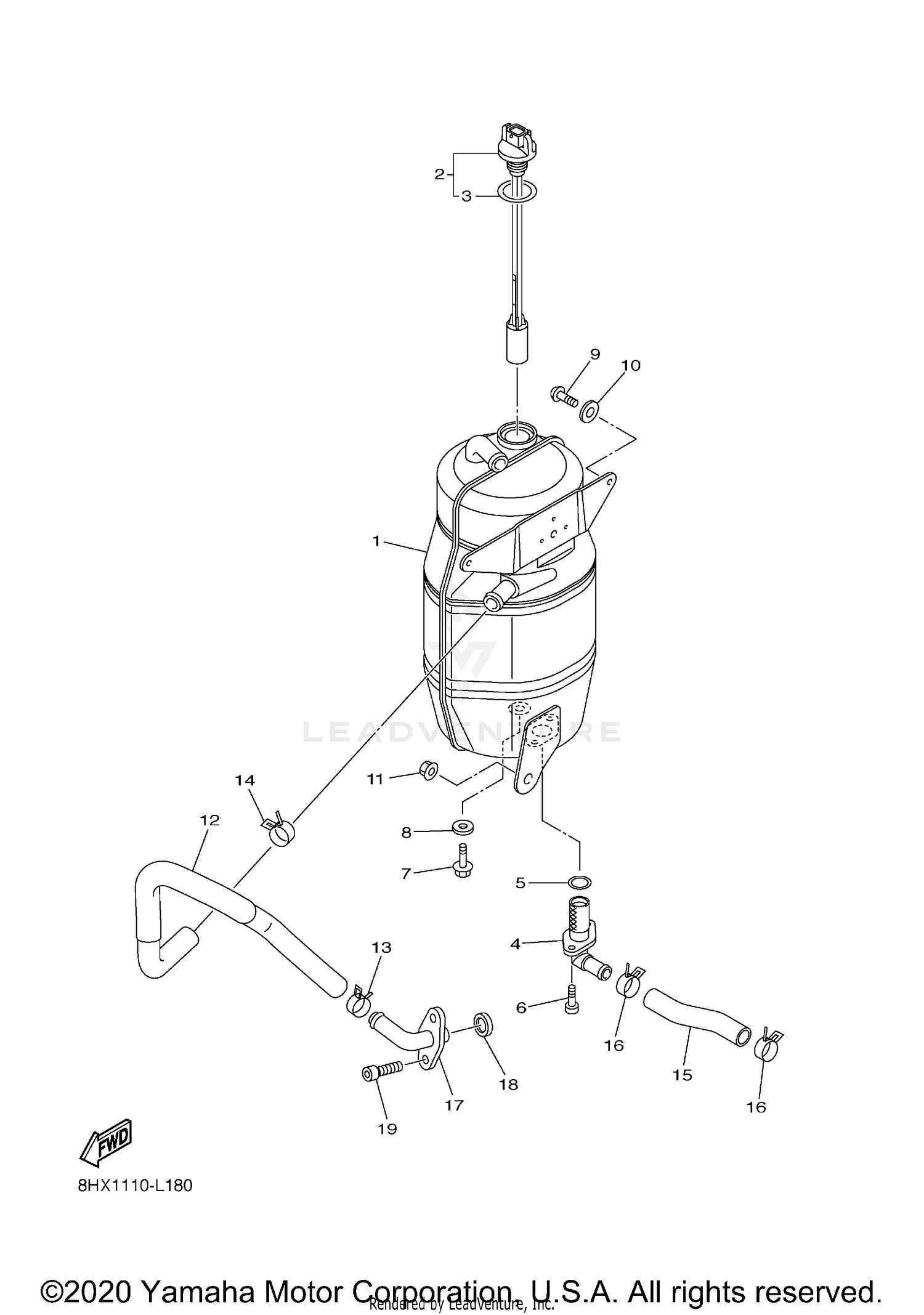

OIL TANK
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8HV-21751-00-00 | TANK, OIL Price: $806.99 |
| 2 | 8GL-85720-00-00 | OIL LEVEL GAUGE ASSY Price: $65.99 |
| 3 | 8FP-85075-00-00 | O-RING Price: $12.49 |
| 4 | 8GL-13406-00-00 | OIL PIPE COMP. 2 Price: $131.99 |
| 5 | 93210-24001-00 | O-RING Price: $9.49 |
| 6 | 91312-06016-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 7 | 95817-08012-00 | BOLT, FLANGE This part replaces 95802-08012-00. Price: $5.49 |
| 8 | 90430-08204-00 | GASKET Price: $8.99 |
| 9 | 92012-06016-00 | BOLT, BUTTON HEAD Price: $9.49 |
| 10 | 90201-06078-00 | WASHER, PLATE Price: $6.49 |
| 11 | 95602-08200-00 | NUT, SELF-LOCKING Price: $3.20 |
| 12 | 8GM-13464-00-00 | HOSE, OIL 1 Price: $52.99 |
| 13 | 90467-22097-00 | CLIP Price: $10.49 |
| 14 | 90467-22097-00 | CLIP Price: $10.49 |
| 15 | 8HF-13465-00-00 | HOSE, OIL 2 Price: $13.49 |
| 16 | 90467-22097-00 | CLIP Price: $10.49 |
| 17 | 8ES-13115-00-00 | CONNECTOR, SUCTION PIPE Price: $47.99 |
| 18 | 93210-16629-00 | O-RING Price: $8.49 |
