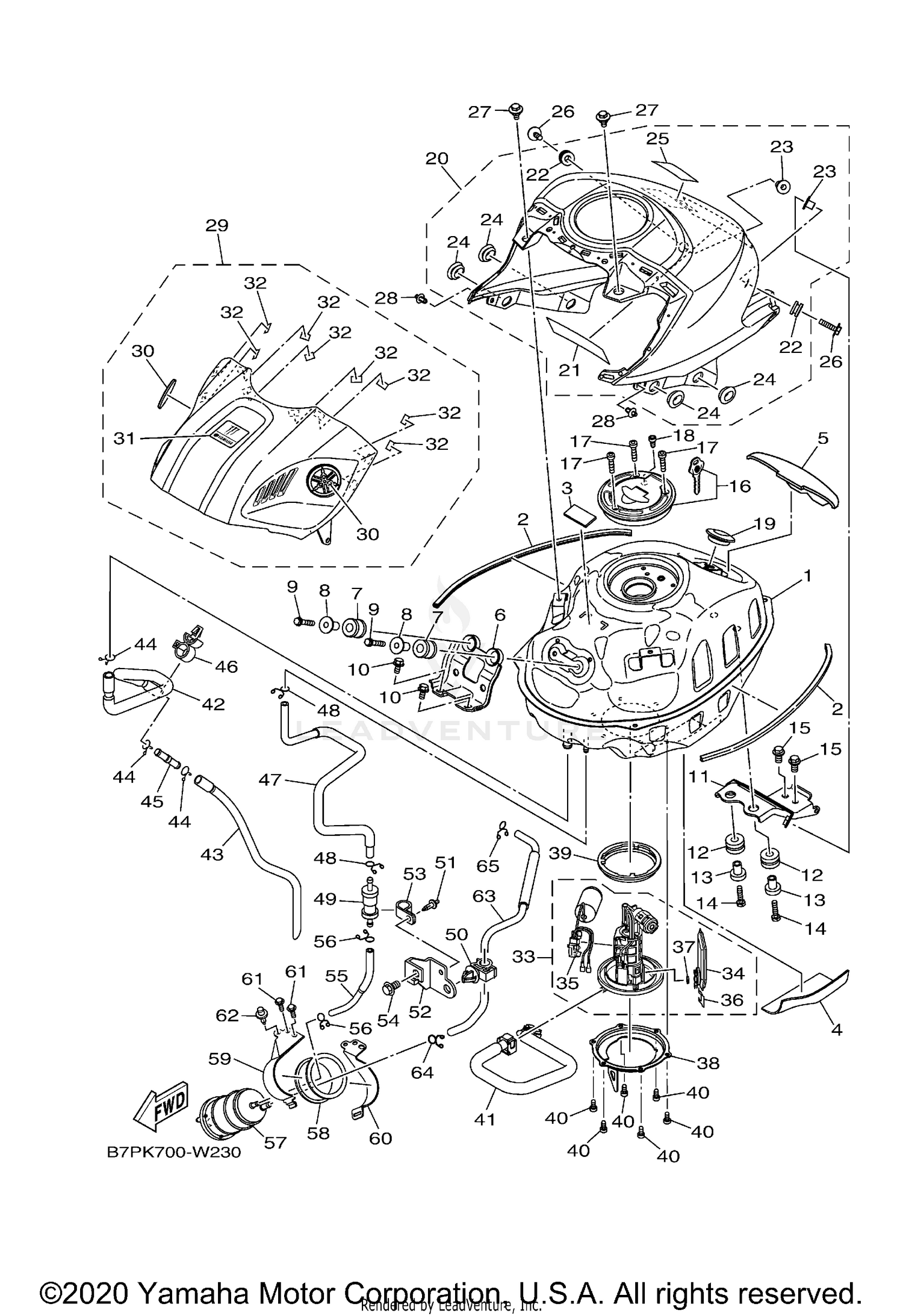

| Ref | Part Number | Description |
|---|
| 1 |
BS7-F4110-00-00 |
FUEL TANK COMP. Price: $255.99 |
| 2 |
BS7-F4188-00-00 |
MOLD, FUEL TANK Price: $14.49 |
| 3 |
5D9-H2126-00-00 |
PAD, BATTERY (5D91) Price: $0.80 |
| 4 |
90520-02843-00 |
DAMPER, PLATE Price: $1.75 |
| 5 |
BS7-F414E-00-00 |
SEAL 2 Price: $11.49 |
| 6 |
BS7-F412Y-00-00 |
BRACKET, TANK FITTIN Price: $36.99 |
| 7 |
90480-18813-00 |
GROMMET Price: $1.25 |
| 8 |
90387-068M3-00 |
COLLAR Price: $3.55 |
| 9 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 97022-06030-00. Price: $3.90 |
| 10 |
95817-06012-00 |
BOLT, FLANGE Price: $1.95 |
| 11 |
BS7-F4191-10-00 |
BRACKET, FUEL TANK 1 Price: $19.49 |
| 12 |
90480-15807-00 |
GROMMET Price: $1.30 |
| 13 |
90387-068S8-00 |
COLLAR Price: $1.30 |
| 14 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 97022-06030-00. Price: $3.90 |
| 15 |
95022-08014-00 |
BOLT, FLANGE Price: $9.49 |
| 16 |
BS7-WF461-00-00 |
CAP ASSY WITH LOCK Price: $106.99 |
| 17 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05806-00. Price: $10.49 |
| 18 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 19 |
90480-01806-00 |
GROMMET Price: $2.35 |
| 21 |
90520-03841-00 |
DAMPER, PLATE Price: $1.95 |
| 22 |
90480-12808-00 |
GROMMET Price: $2.45 |
| 23 |
90387-06899-00 |
COLLAR Price: $3.50 |
| 24 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 25 |
1TP-2118K-A2-00 |
LABEL, CAUTION This part replaces 1TP-2118K-A1-00. Price: $8.49 |
| 26 |
90119-06309-00 |
BOLT, WITH WASHER Price: $1.65 |
| 27 |
90109-068B2-00 |
BOLT (B9B1) Price: $0.50 |
| 28 |
90269-06816-00 |
RIVET Price: $1.70 |
| 30 |
1WD-F413B-10-00 |
EMBLEM Price: $22.99 |
| 31 |
BS7-F4244-21-00 |
GRAPHIC, FUEL TANK 1 (BS73) This part replaces BS7-F4244-20-00. Price: $1.80 |
| 32 |
31B-F8307-00-00 |
SEAL Price: $2.35 |
| 33 |
BS7-E3907-01-00 |
FUEL PUMP COMP. Price: $239.99 |
| 34 |
3C1-E3915-00-00 |
FILTER Price: $19.49 |
| 35 |
BS7-H5752-00-00 |
SENDER UNIT ASSY, FU Price: $105.99 |
| 36 |
3C1-F4519-00-00 |
CLIP Price: $4.85 |
| 37 |
3C1-24512-00-00 |
GASKET Price: $24.99 |
| 38 |
BS7-F4491-00-00 |
BRACKET, FUEL PUMP Price: $10.49 |
| 39 |
3C1-F4486-00-00 |
O-RING Price: $37.99 |
| 40 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 41 |
1WD-E3971-02-00 |
PIPE, FUEL 1 Price: $59.99 |
| 42 |
1WD-F4312-00-00 |
PIPE 2 Price: $13.49 |
| 43 |
1WD-F4314-01-00 |
PIPE 4 (2YD6) This part replaces 1WD-F4314-00-00. Price: $15.49 |
| 44 |
90467-15012-00 |
CLIP Price: $9.49 |
| 45 |
1WD-F4376-00-00 |
PIPE, JOINT 1 Price: $15.99 |
| 46 |
90464-16012-00 |
CLAMP Price: $8.49 |
| 47 |
2MS-F4314-01-00 |
PIPE 4 Price: $30.99 |
| 48 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 49 |
1DW-F4180-02-00 |
ROLL OVER VALVE ASSY Price: $78.99 |
| 50 |
90464-10008-00 |
CLAMP Price: $3.80 |
| 51 |
90269-05008-00 |
RIVET Price: $3.65 |
| 52 |
2MS-F419F-00-00 |
BRACKET, CANISTOR Price: $8.99 |
| 53 |
90464-15014-00 |
CLAMP Price: $3.65 |
| 54 |
95027-08012-00 |
BOLT, FLANGE Price: $10.49 |
| 55 |
2MS-F4315-00-00 |
PIPE 5 Price: $9.49 |
| 56 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 57 |
2MS-F4170-00-00 |
CANISTER ASSY Price: $127.99 |
| 58 |
2MS-F483H-00-00 |
BAND Price: $3.55 |
| 59 |
2MS-F115R-00-00 |
BRACKET, CANISTER Price: $13.49 |
| 60 |
2MS-F134X-00-00 |
BRACKET, CANISTER Price: $13.49 |
| 61 |
90105-06696-00 |
BOLT, FLANGE This part replaces 95027-06016-00. Price: $10.49 |
| 62 |
90269-06816-00 |
RIVET Price: $1.70 |
| 63 |
2MS-F4316-00-00 |
PIPE 6 Price: $25.99 |
| 64 |
90467-11009-00 |
CLIP Price: $11.49 |
