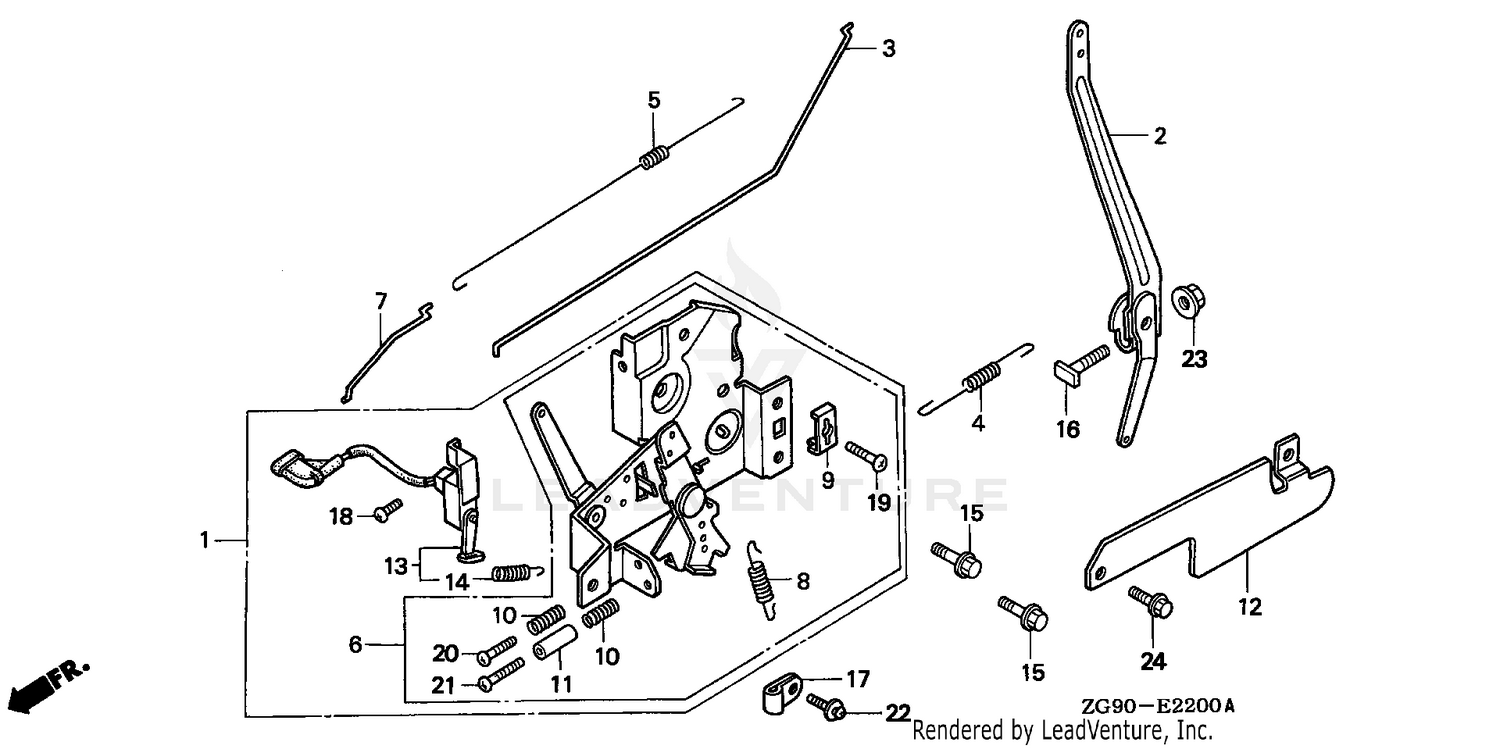

| Ref | Part Number | Description |
|---|
| 2 |
16551-ZE6-U40 |
ARM, GOVERNOR (C,G) Price: $15.32 |
| 3 |
16555-ZE6-000 |
ROD, GOVERNOR (Honda Code 1452895). Price: $4.94 |
| 4 |
16561-ZE6-010 |
SPRING, GOVERNOR Price: $4.40 |
| 5 |
16562-ZE6-000 |
SPRING, THROTTLE RETURN (Honda Code 1452911). Price: $5.00 |
| 6 |
16570-ZE6-U50 |
CONTROL Price: $28.04 |
| 7 |
16573-ZE6-010 |
SEE PART DETAILS - PRI; ROD, CHOKE (Honda Code 1672237). Price: $3.10 |
| 8 |
16574-ZG9-M00 |
SPRING, LEVER Price: $3.14 |
| 9 |
16576-891-000 |
HOLDER, CABLE (Honda Code 0800466). Price: $5.08 |
| 10 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 15 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 16 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 17 |
90628-ZC0-701 |
CLIP (2.9MM) Price: $2.16 |
| 19 |
93500-05016-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557). Price: $1.14 |
| 20 |
93500-05020-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731). Price: $1.04 |
| 21 |
93500-05025-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X25) (Honda Code 0145565). Price: $1.18 |
| 22 |
93893-04012-00 |
SCREW-WASHER (4X12) Price: $1.64 |
