| Ref | Part Number | Description |
|---|
| 1 |
11000-MKC-A00 |

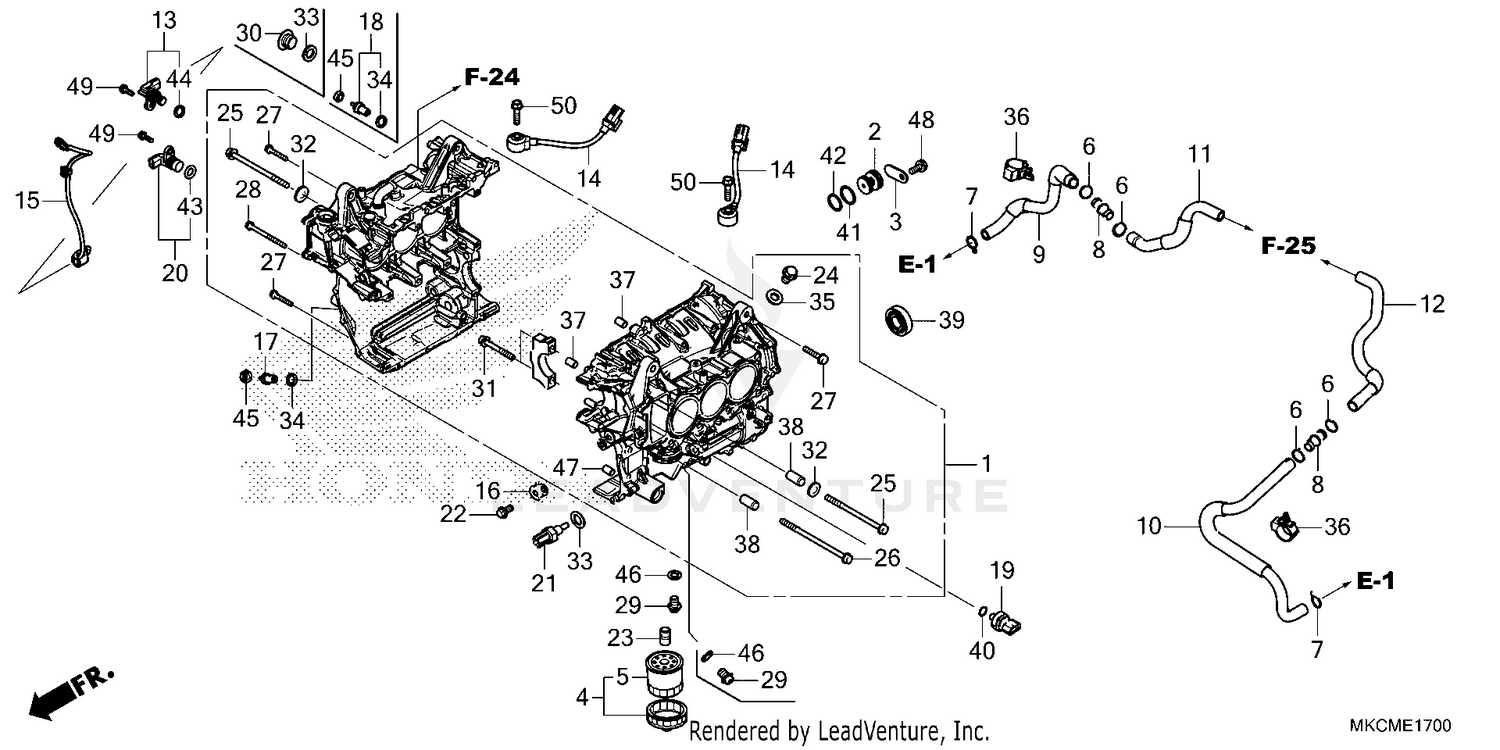

BLOCK ASSY., CYLINDER Price: $3,931.89 |
| 2 |
11216-MKC-A00 |
PLUG, SEALING Price: $17.64 |
| 3 |
11217-MKC-A00 |
PLATE, MAIN GALLERY Price: $3.11 |
| 5 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 6 |
17366-MJ0-000 |
CLIP B, TUBE CLIP, SUB-TANK HOSE Price: $2.56 |
| 7 |
17724-102-700 |
CLIP, SUB-TANK HOSE Price: $5.50 |
| 8 |
18651-MKC-A00 |
JOINT (TWO-WAY) Price: $10.85 |
| 9 |
18652-MKC-A00 |
TUBE, R. AIR INDUCTION A Price: $25.53 |
| 10 |
18653-MKC-A00 |
TUBE, L. AIR INDUCTION A Price: $34.29 |
| 11 |
18662-MKC-A00 |
TUBE, R. AIR INDUCTION B Price: $18.75 |
| 12 |
18663-MKC-A00 |
TUBE, L. AIR INDUCTION B Price: $24.18 |
| 13 |
28810-R9L-003 |
PICK-UP ASSY. Price: $126.23 |
| 14 |
30530-MKC-A01 |
SENSOR, KNOCK Price: $65.16 |
| 15 |
32109-MKC-A00 |
SUB-HARNESS, SPEED SENSOR Price: $30.60 |
| 16 |
32157-MJM-D00 |
STAY, HARNESS CLIP Price: $5.25 |
| 17 |
35600-MKF-D41 |
SWITCH ASSY., NEUTRAL Price: $24.71 |
| 19 |
37260-MGE-641 |
SENSOR, OIL PRESSURE Price: $195.55 |
| 20 |
37700-K48-A01 |
SENSOR ASSY., SPEED Price: $68.09 |
| 21 |
37750-KPH-701 |
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) Price: $61.02 |
| 22 |
90005-GHB-610 |
BOLT, FLANGE (6X12) Price: $3.02 |
| 23 |
90019-MB0-000 |
BOSS, OIL FILTER (Honda Code 1243435) Price: $10.44 |
| 24 |
90019-MKC-A00 |
BOLT, SEALING (8MM) Price: $4.49 |
| 25 |
90025-MKC-A00 |
BOLT, FLANGE (8X120) Price: $5.75 |
| 26 |
90026-MKC-A00 |
BOLT, FLANGE (8X140) Price: $6.15 |
| 27 |
90031-MKC-A00 |
BOLT, FLANGE (6X35) Price: $2.58 |
| 28 |
90032-MKC-A00 |
BOLT, FLANGE (6X75) Price: $3.55 |
| 29 |
90043-MKC-A00 |
BOLT, DRAIN PLUG (12X15) Price: $6.95 |
| 31 |
90049-MKC-A00 |
BOLT-WASHER (10X80) Price: $5.11 |
| 32 |
90441-ME9-000 |
WASHER, SEALING (8MM) Price: $2.98 |
| 33 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 34 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 35 |
90474-333-000 |
WASHER, SEALING (8MM) Price: $4.15 |
| 36 |
90651-HL3-G01 |
CLAMP, TUBE (D18) Price: $2.84 |
| 37 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 38 |
90715-RZ0-G00 |
PIN, DOWEL (12X37) Price: $7.27 |
| 39 |
91006-HN2-003 |
BEARING, RADIAL BALL (6203U SPL.) Price: $15.40 |
| 40 |
91301-MEH-003 |
O-RING (13X1.5) Price: $1.85 |
| 41 |
91301-P7X-003 |
O-RING (19.20X1.90) (NOK) Price: $3.87 |
| 42 |
91301-PWR-003 |
O-RING (16.7X1.9) (NOK) Price: $3.17 |
| 43 |
91303-MKH-D21 |
O-RING B Price: $2.98 |
| 44 |
91304-RE5-003 |
O-RING Price: $12.43 |
| 45 |
94001-04000-0S |
NUT, HEX. (4MM) Price: $1.08 |
| 46 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 47 |
94303-08140 |
PIN C, DOWEL (8X14) Price: $2.35 |
| 48 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 49 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
