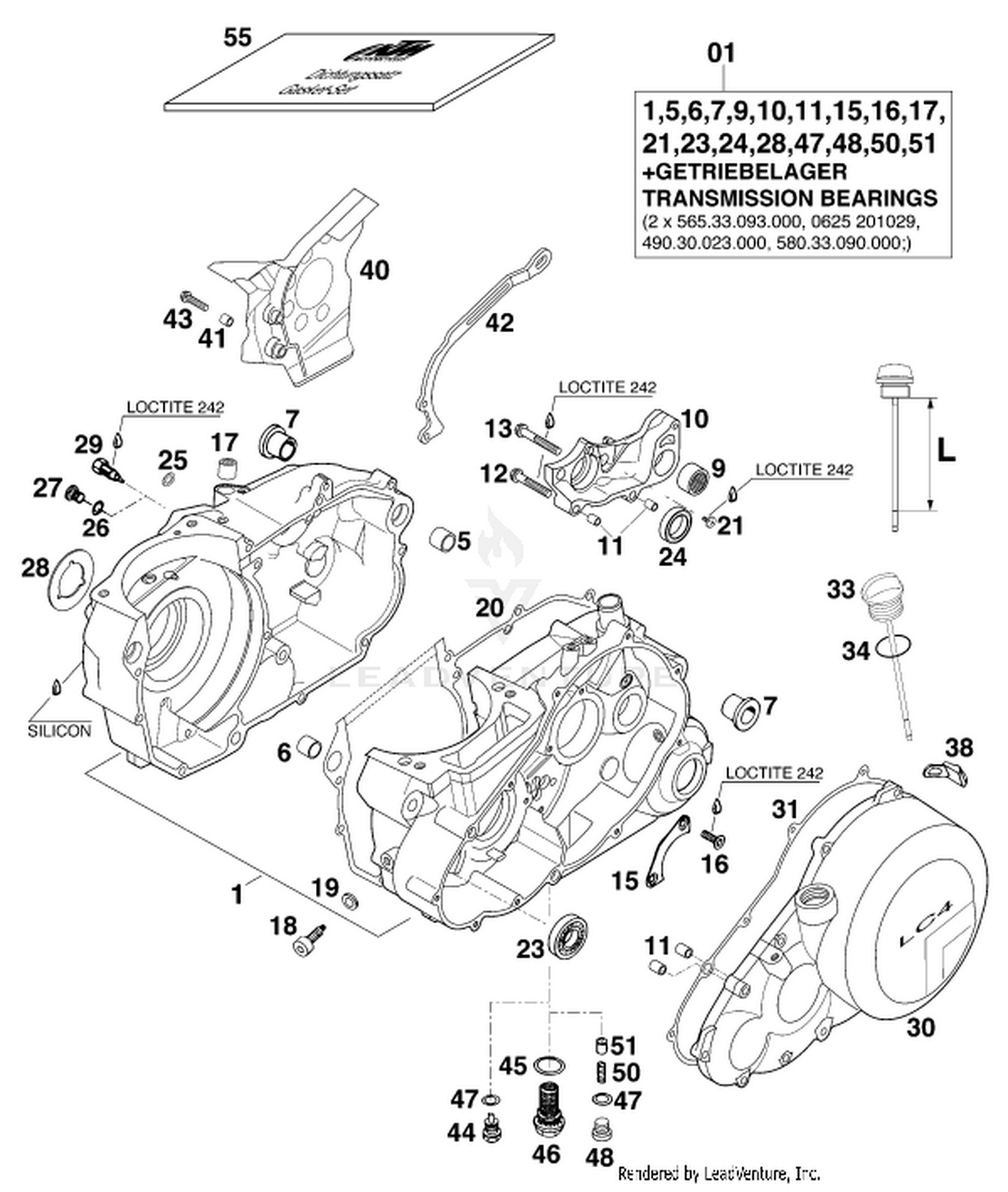

| Ref | Part Number | Description |
|---|
| 1 |
5843000014429 |
ENGINE CASE CPL.W.TRAN.BEAR'98 Price: Call Us |
| 5 |
50130027000 |
DOWEL 19 X15,1X12 Price: Call Us |
| 6 |
51030026100 |
DOWEL 17 X 13 X 12 Price: Call Us |
| 7 |
50130010000 |
CRANK CASE BUSH Price: Call Us |
| 9 |
58033097000 |
NEEDLE BEARING HK 2216 Price: Call Us |
| 10 |
58330011000 |
SHIFT MECHANISM SUPPORT LC4'94 Price: Call Us |
| 11 |
49030090100 |
DOWEL 9,8 X7X10 This part replaces 49030090000. Price: Call Us |
| 12 |
0025060356 |
HH collar screw M6x35 TX30 This part replaces 0015060353. Price: Call Us |
| 13 |
0025060406 |
HH collar screw M6x40 TX30 This part replaces 0015060403. Price: Call Us |
| 15 |
56530017000 |
RETAINING PLATE Price: Call Us |
| 16 |
0991060163 |
FLAT HEAD SCR. DIN7991-M 6X16 Price: Call Us |
| 17 |
46034027000 |
NEEDLE BEARING 12X18X12 2002 This part replaces 50332095000. Price: Call Us |
| 18 |
58030080000 |
LOCATING SCREW M8 L=23 Price: Call Us |
| 19 |
58030081000 |
CU-SEAL RING 8 X 14 X 3 Price: Call Us |
| 20 |
58530039400 |
ENGINE CASE SIL C4302 0,5 This part replaces 58430039000. Price: Call Us |
| 21 |
0985050103 |
OVAL HEAD SCR. DIN7985-M 5X10 Price: Call Us |
| 23 |
0625160031 |
GROOVED BALL B. 16003 C4 J1 This part replaces 0625160030. Price: Call Us |
| 24 |
0625618050 |
BALL BEARING 61805 C3 Price: Call Us |
| 25 |
0603061001 |
CU-SEAL RING DIN7603-6X10X1 Price: Call Us |
| 27 |
49030029000 |
OIL DRAIN PLUG M10X1,5 AH-WS=6 Price: Call Us |
| 28 |
58440091000 |
STOP DISK 33 X 58 X 1,5 Not Available Price: |
| 29 |
58011081100 |
CONTACT SCREW M10 STEEL '98 Price: Call Us |
| 30 |
5833010100029 |
NEEDS DESCRIPTION Price: Call Us |
| 30 |
5833010110029 |
CLUTCH COVER CPL.GREY''LC4 '99 Price: Call Us |
| 31 |
58530025000 |
CLUTCH COVER GASKET 2001 This part replaces 58330025000. Price: Call Us |
| 33 |
58330020144 |
OIL DIPSTICK CPL. L=93MM '96 Not Available Price: |
| 34 |
0770160030 |
O-RING 16,00X3,00 NBR 70 Price: Call Us |
| 38 |
58333041000 |
BUMP RUBBER Not Available Price: |
| 41 |
54613038150 |
BUSHING 6,5X8X11 Price: Call Us |
| 42 |
58430047000 |
CHAIN DAMPERSHEET 17T LC4-E Not Available Price: |
| 42 |
58430047100 |
CHAIN DAMPERSHEET 15/16T LC4-E Not Available Price: |
| 43 |
0025060256 |
HH collar screw M6x25 TX30 This part replaces 0015060253. Price: Call Us |
| 45 |
58038017100 |
CU-SEAL RING DIN7603-22X27X2 Price: Call Us |
| 46 |
58038019100 |
OIL DRAIN PLUG M22X1,5 Price: Call Us |
| 47 |
58038022000 |
CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 50 |
58038023300 |
PRESSURE SPRING L=25MM D=1MM Price: Call Us |
| 51 |
58038028000 |
VALVE PISTON D=10MM Price: Call Us |
