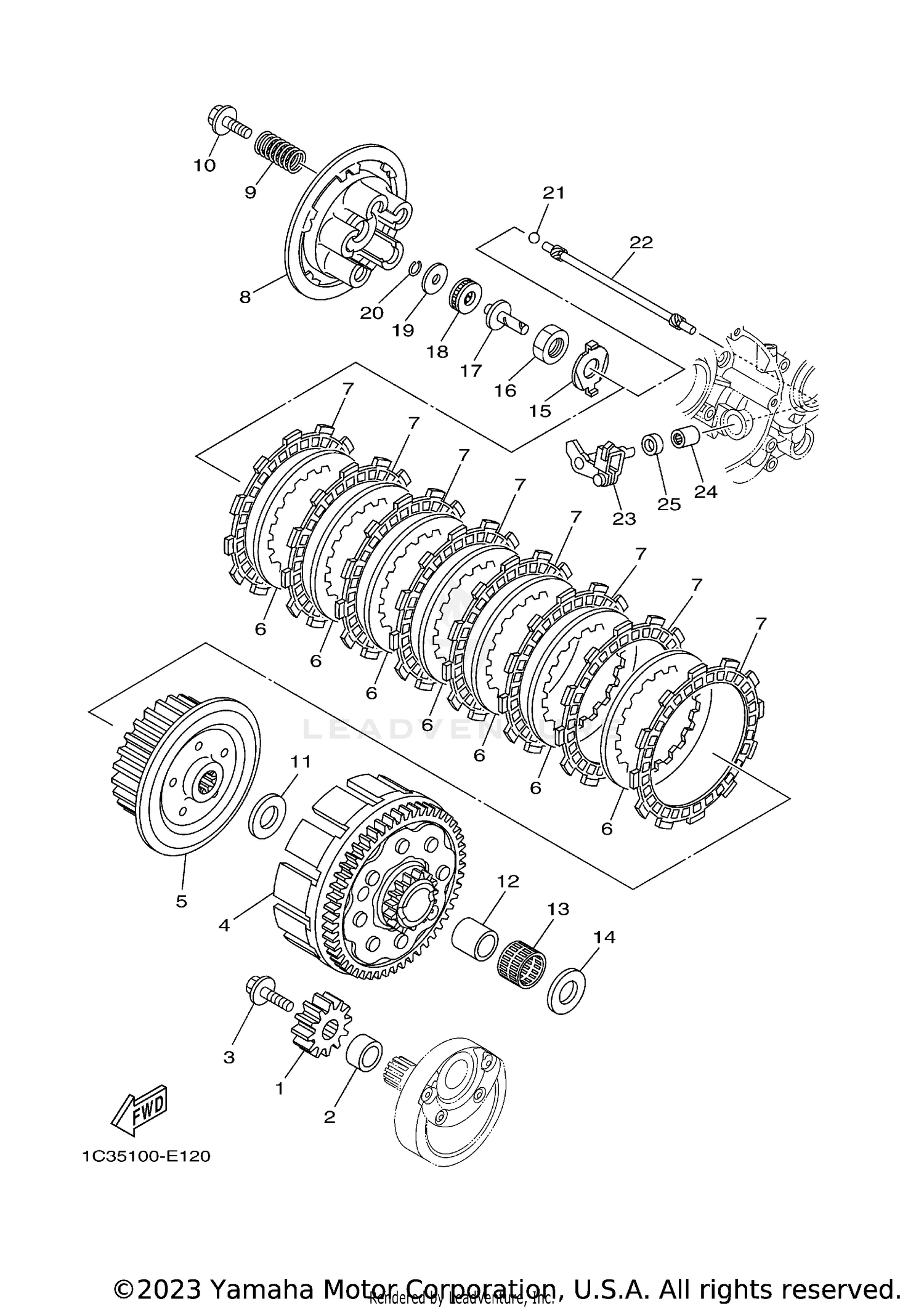

| Ref | Part Number | Description |
|---|
| 1 |
1C3-16111-00-00 |
GEAR, PRIMARY DRIVE Price: $62.99 |
| 2 |
90387-172K2-00 |
COLLAR Price: $23.99 |
| 3 |
90105-08071-00 |
BOLT, FLANGE Price: $5.49 |
| 4 |
1C3-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $332.99 |
| 5 |
5NY-16371-00-00 |
BOSS, CLUTCH Price: $96.99 |
| 6 |
3XJ-16324-10-00 |
PLATE, CLUTCH 1 This part replaces 3XJ-16324-01-00. Price: $14.49 |
| 7 |
3XJ-16321-00-00 |
PLATE, FRICTION Price: $24.99 |
| 8 |
5HD-16351-00-00 |
PLATE, PRESSURE 1 Price: $58.99 |
| 9 |
90501-23391-00 |
SPRING, COMPRESSION Price: $8.49 |
| 10 |
90159-06016-00 |
SCREW, WITH WASHER Price: $3.65 |
| 11 |
90201-204K8-00 |
WASHER, PLATE This part replaces 90201-20611-00. Price: $11.49 |
| 12 |
1C3-16181-00-00 |
SPACER 1 Price: $23.99 |
| 13 |
93310-22539-00 |
BEARING Price: $44.99 |
| 14 |
90201-204K8-00 |
WASHER, PLATE This part replaces 90201-20611-00. Price: $11.49 |
| 15 |
90215-16289-00 |
WASHER, LOCK Price: $7.99 |
| 16 |
90170-16326-00 |
NUT Price: $14.49 |
| 17 |
5NL-16356-00-00 |
ROD, PUSH 1 Price: $55.99 |
| 18 |
93340-21008-00 |
BEARING Price: $32.99 |
| 19 |
90201-080H1-00 |
WASHER, PLATE Price: $5.49 |
| 20 |
93440-07182-00 |
CIRCLIP Price: $4.10 |
| 21 |
93511-32027-00 |
BALL Price: $9.49 |
| 22 |
B4X-16357-00-00 |
ROD, PUSH 2 Price: $46.99 |
| 23 |
1C3-16380-00-00 |
PUSH LEVER ASSY Price: $53.99 |
| 24 |
93315-11040-00 |
BEARING Price: $41.99 |
