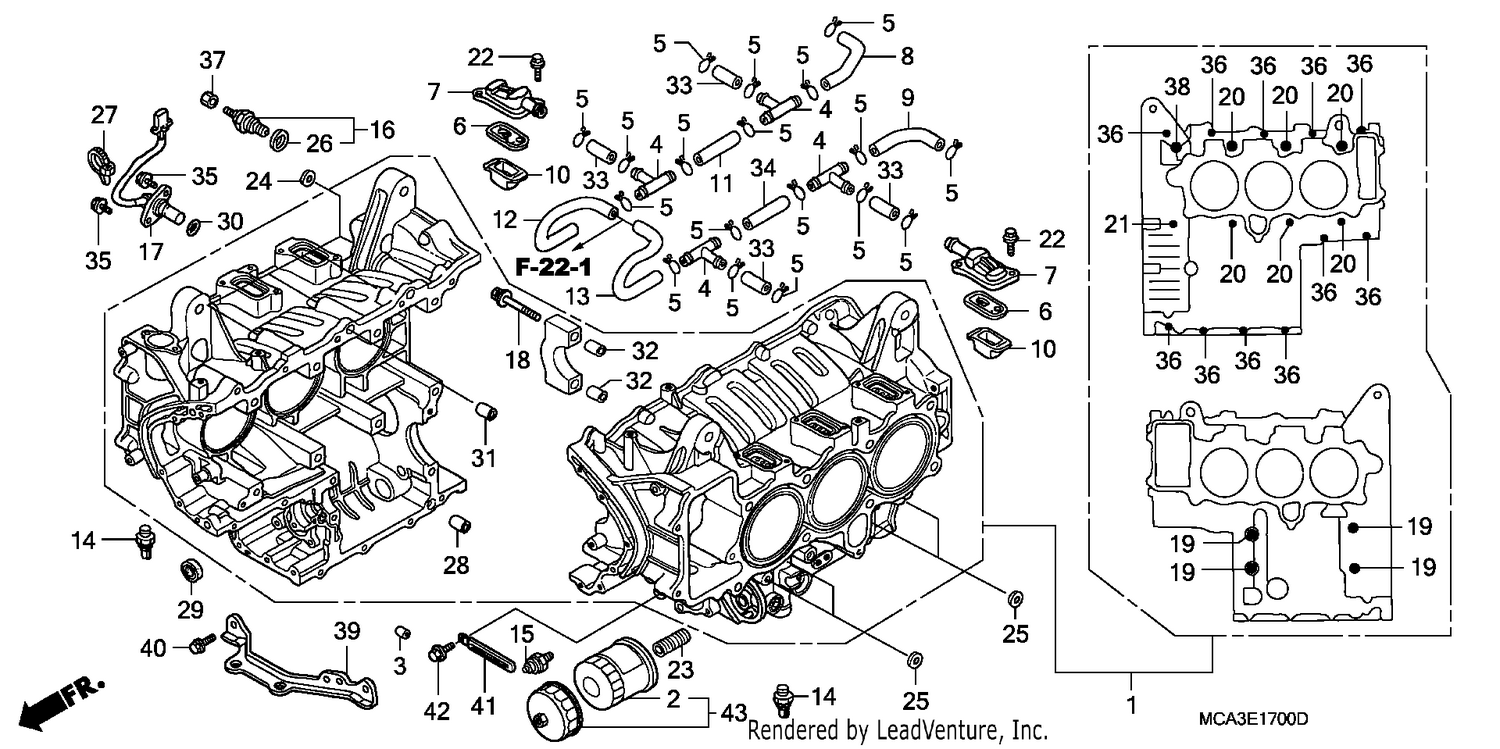

CYLINDER BLOCK

CYLINDER BLOCK

Parts (37)

RefPart NumberDescription
1 11000MCA780 BLOCK ASSY., CYLINDER Price: Call Us
2 15410MCJ000 CARTRIDGE, OIL FILTER (TOYO ROKI) Price: Call Us
3 15515MCA000 ORIFICE, 2.3MM Price: Call Us
4 15772KK0000 JOINT, BREATHER THREE WAY Price: Call Us
5 17369KB4670 CLIP, BREATHER TUBE Price: Call Us
6 18601KGB611 VALVE COMP., REED Price: Call Us
7 18612MBA600 COVER, REED VALVE Price: Call Us
8 18651MCA780 TUBE, R. AIR INTAKE Price: Call Us
9 18652MCA000 TUBE, L. AIR INTAKE Price: Call Us
10 18653MCA000 PLATE, AIR INTAKE Price: Call Us
11 18655MCA000 TUBE, 12X62 Price: Call Us
12 18662MCA000 TUBE, R. AIR INTAKE Price: Call Us
13 18663MCA000 TUBE, L. AIR INTAKE Price: Call Us
14 30530MCA003 SENSOR ASSY., KNOCK Price: Call Us
15 35500MJ4024 SWITCH ASSY., OIL PRESSURE (DENSO) Price: Call Us
16 35600MM5003 SWITCH ASSY., NEUTRAL (TEC) Price: Call Us
17 37700MCA003 SENSOR ASSY., SPEED Price: Call Us
18 90003MCA780 BOLT, UBS, 12X77.5 Price: Call Us
19 90006MM5640 BOLT, FLANGE, 8X135 Price: Call Us
20 90009371015 BOLT, FLANGE, 10X120 (SATO) Price: Call Us
21 90011MCA780 BOLT, FLANGE, 10X197 Price: Call Us
22 90012896750 BOLT, FLANGE, 5X14 Price: Call Us
23 90019MB0000 BOSS, OIL FILTER Price: Call Us
24 90438463000 WASHER, SPECIAL, 11X21X2.3 Price: Call Us
25 90441MG8000 WASHER, SEALING, 8MM Price: Call Us
26 90443MJ6000 WASHER, NEUTRAL Price: Call Us
27 90652KT1771 BAND, WIRE (BLACK) Price: Call Us
28 90702371000 COLLAR, 15X20 Price: Call Us
29 91204MB0013 OIL SEAL, 8X25X8 (ARAI) Price: Call Us
30 91302MAL601 O-RING, 18.1X3.6 Price: Call Us
31 9430112200 DOWEL PIN, 12X20 Price: Call Us
32 9430304065 PIN C, DOWEL, 4X6.5 Price: Call Us
33 950051204210 TUBE, 12X42 (95005-12001-10M) Price: Call Us
34 95005120701G TUBE, 12X70 (95005-12001-10M) Price: Call Us
35 957010601608 BOLT, FLANGE, 6X16 Price: Call Us
36 957010603508 BOLT, FLANGE, 6X35 Price: Call Us
37 94001040000S NUT, HEX., 4MM Price: Call Us
