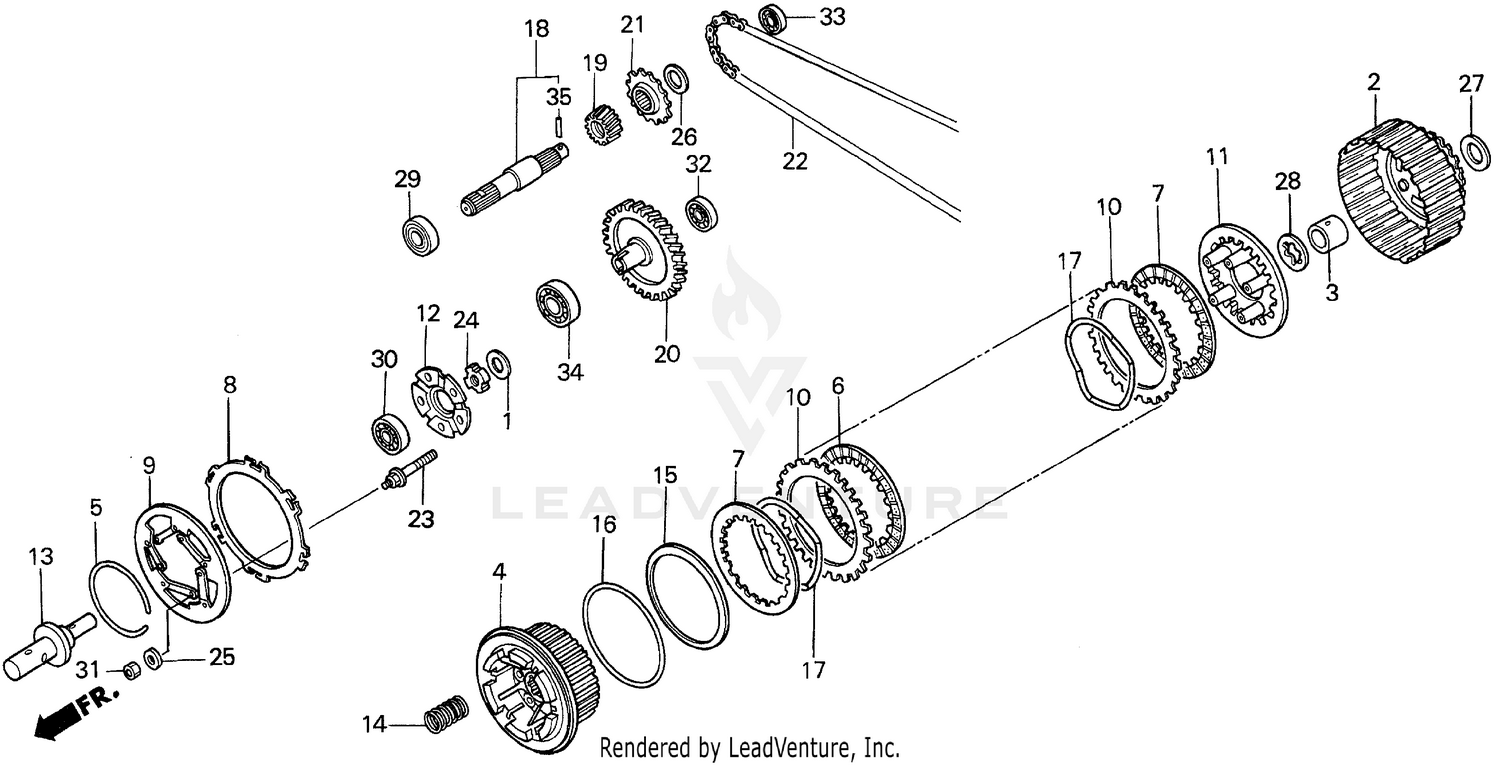

| Ref | Part Number | Description |
|---|
| 1 |
15451-107-000 |
WASHER, OIL FILTER ROTOR LOCKING Price: $5.56 |
| 2 |
22100-752-621 |
CLUTCH (OUTER) Price: $331.38 |
| 3 |
22116-752-010 |
GUIDE, CLUTCH (OUTER) Price: $18.32 |
| 4 |
22120-752-023 |
CENTER, CLUTCH Price: $194.92 |
| 5 |
22125-752-003 |
SET-RING (100.5MM) Price: $8.36 |
| 6 |
22201-752-003 |
DISK A, CLUTCH FRICTION Price: $21.98 |
| 7 |
22202-752-003 |
DISK B, CLUTCH FRICTION Price: $17.96 |
| 8 |
22204-752-013 |
PLATE B, BRAKE Price: $14.62 |
| 9 |
22210-752-003 |
PLATE C, BRAKE Price: $36.50 |
| 10 |
22321-752-003 |
PLATE, CLUTCH Price: $17.94 |
| 11 |
22350-752-013 |
PLATE, CLUTCH PRESSURE Price: $55.94 |
| 12 |
22361-752-003 |
PLATE, CLUTCH LIFTER Price: $21.20 |
| 13 |
22366-752-000 |
ROD, CLUTCH LIFTER Price: $32.32 |
| 14 |
22401-752-621 |
SPRING, CLUTCH Price: $7.42 |
| 15 |
22405-752-003 |
SPRING, CONED DISK Price: $18.68 |
| 16 |
22406-752-003 |
SEAT, SPRING Price: $14.94 |
| 17 |
22412-752-003 |
SPRING, CLUTCH SUPPORT Price: $12.80 |
| 18 |
23110-752-000 |
SHAFT, INPUT Price: $137.90 |
| 19 |
23121-752-000 |
GEAR, PUMP REDUCTION DRIVE Price: $42.00 |
| 20 |
23122-752-000 |
GEAR, PUMP REDUCTION DRIVEN Price: $240.54 |
| 21 |
23401-752-000 |
SPROCKET, DRIVE Price: $63.00 |
| 22 |
23403-752-013 |
CHAIN, PRIMARY DRIVE (240MBK-40) (DAIDO) Price: $66.84 |
| 23 |
90050-752-003 |
BOLT, SPECIAL (6X22) Price: $7.08 |
| 24 |
90231-KCS-651 |
SEE PART DETAILS - PRI; NUT, LOCK (16MM) Price: $5.80 |
| 25 |
90401-752-003 |
WASHER (10MM) Price: $2.68 |
| 26 |
90446-357-000 |
WASHER, THRUST (17.2MM) (Honda Code 0322180). Price: $4.98 |
| 27 |
90451-426-000 |
WASHER, THRUST (20MM) Price: $6.42 |
| 28 |
90461-107-000 |
WASHER B, SPLINE (20MM) Price: $6.04 |
| 29 |
91007-752-003 |
BEARING, RADIAL BALL U (60/20) Price: $19.56 |
| 30 |
91011-KK6-013 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003. Price: $20.54 |
| 31 |
94001-05000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (5MM) Price: $3.34 |
| 32 |
96100-62020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941). Price: $11.68 |
| 33 |
96140-60030-00 |
BEARING, RADIAL BALL (6003U) Price: $19.58 |
| 34 |
96140-62040-00 |
BEARING, RADIAL BALL (6204U) Price: $35.82 |
