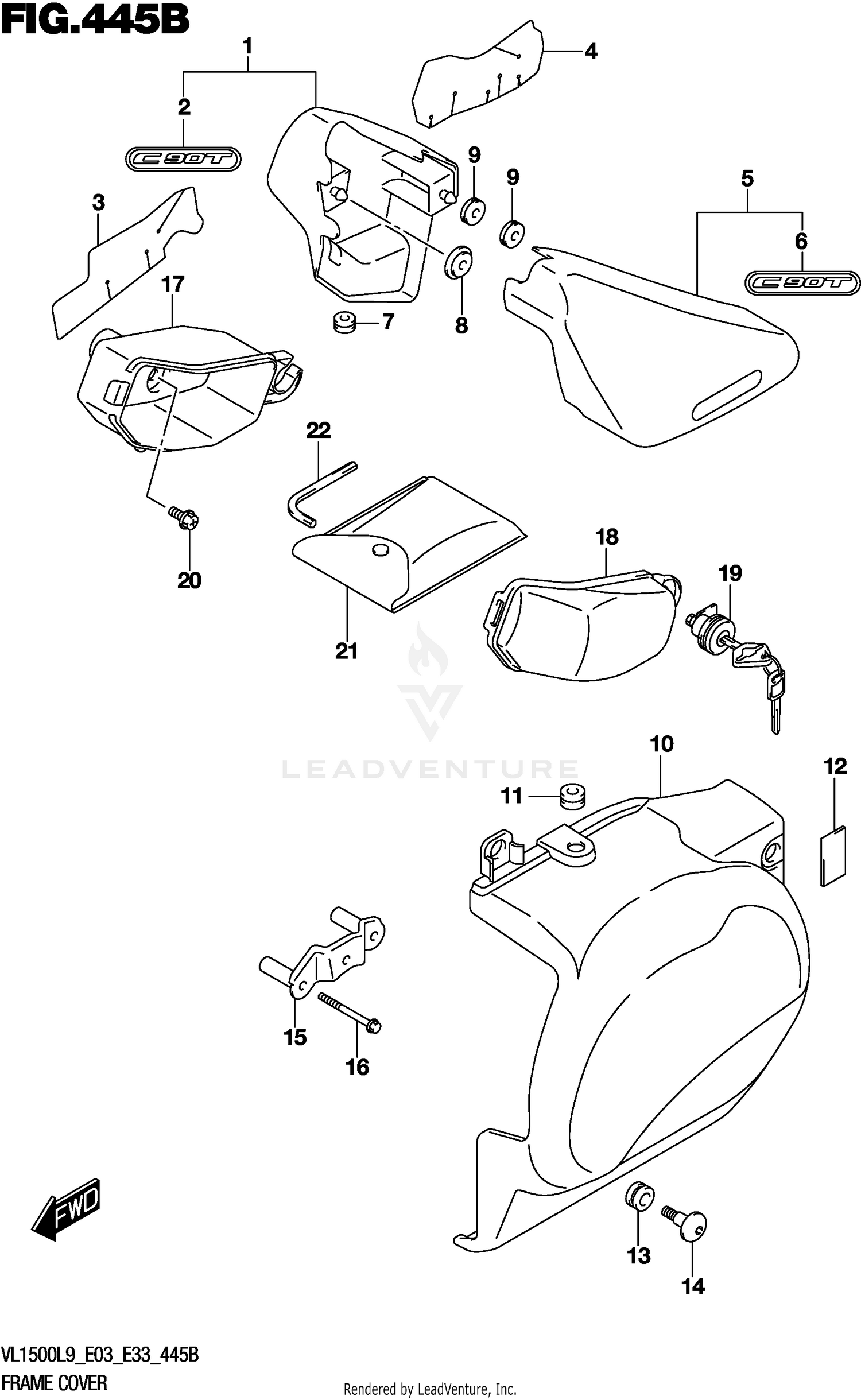

FRAME COVER (VL1500BL9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 47166-06J10 | SHIELD Price: Call Us |
| 4 | 47166-06J20 | SHIELD Price: $6.11 |
| 7 | 47167-06J00 | CUSHION Price: $8.26 |
| 8 | 47191-06J00 | CUSHION Price: $5.25 |
| 10 | 47231-40H20 | COVER Price: $129.63 |
| 12 | 51827-01A00 | CUSHION This part replaces 63411-35B00. Price: $6.66 |
| 15 | 47250-06J00 | BRACKET Price: $31.48 |
| 16 | 01547-0650A | BOLT Price: $2.83 |
| 17 | 92211-06J00 | BODY Price: $17.68 |
| 18 | 92212-06J00 | LID Price: $14.84 |
| 19 | 95700-07861 | LOCK SET,COVER This part replaces 95700-07860. Price: $93.79 |
| 20 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 21 | 09800-21100 | TOOL ASSY This part replaces 09800-21056. Price: $42.85 |
