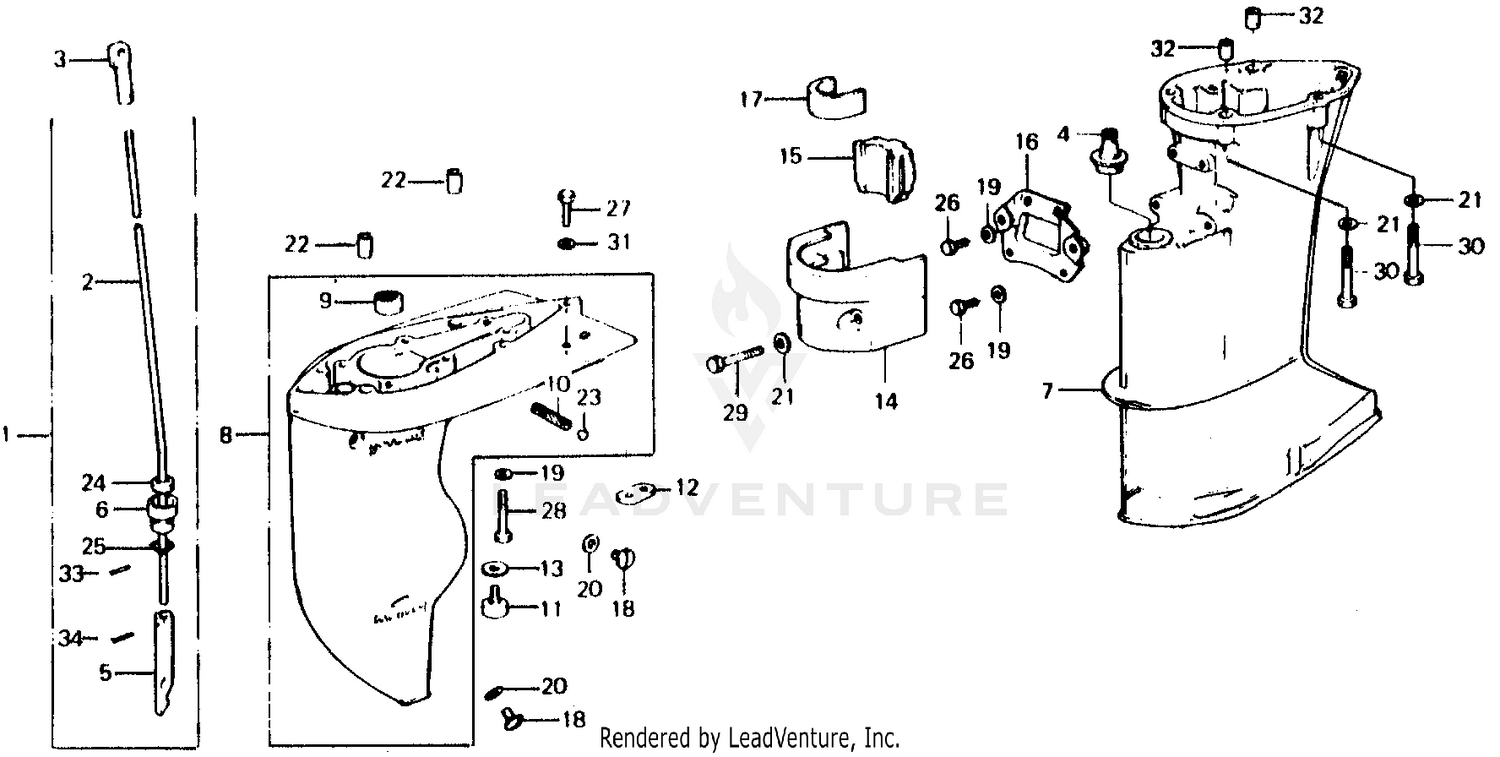

| Ref | Part Number | Description |
|---|
| 1 |
24310-881-701 |
SEE PART DETAILS - PRI; ROD, GEARSHIFT (L) Price: $86.30 |
| 2 |
24311-881-700 |
ROD, GEARSHIFT (L) Price: $48.58 |
| 3 |
24312-881-000 |
JOINT, GEARSHIFT ROD Price: $35.48 |
| 4 |
24313-921-003 |
GROMMET, ROD (ARAI) Price: $15.16 |
| 5 |
24341-ZV4-300 |
SEE PART DETAILS - PRI; ROD, PUSH Price: $30.20 |
| 6 |
24343-881-300 |
HOLDER, SEAL Price: $29.70 |
| 7 |
40201-881-700ZA |
CASE, EXTENSION *B9* (L) (ATLANTIS BLUE) (NOT AVAILABLE) Price: Call Us |
| 8 |
41100-881-010ZA |
CASE, GEAR *B9* (ATLANTIS BLUE) Price: Call Us |
| 9 |
41103-935-003 |
BEARING, NEEDLE (15X21X16) Price: $13.96 |
| 10 |
41104-921-320 |
SCREEN, WATER Price: $10.32 |
| 12 |
41106-935-812 |
SEE PART DETAILS - PRI; METAL, ANODE Price: $13.36 |
| 14 |
50121-881-000ZA |
HOUSING, SETTING (LOWER) *B9* (ATLANTIS BLUE) (NOT AVAILABLE) Price: Call Us |
| 15 |
50151-881-000 |
RUBBER A, MOUNTING (LOWER) Price: $33.20 |
| 16 |
50152-881-000 |
PLATE, MOUNTING (LOWER) Price: $19.56 |
| 17 |
50153-881-000 |
RUBBER B, MOUNTING (LOWER) Price: $8.46 |
| 18 |
90105-921-000 |
BOLT, OIL CHECK Price: $7.78 |
| 19 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 20 |
90507-921-000 |
WASHER, NYLON (8MM) Price: $1.22 |
| 21 |
90518-921-000 |
WASHER, PLAIN (8MM) Use from Frame SN 4800713. Price: $1.64 |
| 22 |
90702-881-000 |
PIN, DOWEL (8X10) Use up to Engine SN 2056819. Price: $2.10 |
| 23 |
90855-921-300 |
PLUG, SEALING (10MM) (Honda Code 0285395). Price: $3.74 |
| 24 |
91253-921-003 |
SEAL, WATER (6MM) Price: $15.70 |
| 25 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.72 |
| 26 |
92101-06012-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) Price: $2.58 |
| 27 |
92101-06016-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X16) Price: $1.62 |
| 28 |
92101-06040-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X40) This part replaces 92000-06040-4J. Price: $1.91 |
| 29 |
92101-08040-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (8X40) Price: $4.44 |
| 30 |
92101-08050-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (8X50) Price: $6.50 |
| 31 |
94101-06200 |
WASHER, PLAIN (6MM) Price: $0.86 |
| 32 |
94301-10140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X14) (Honda Code 0069336). Price: $3.10 |
| 33 |
94305-25122 |
PIN, SPRING (2.5X12) Price: $2.18 |
