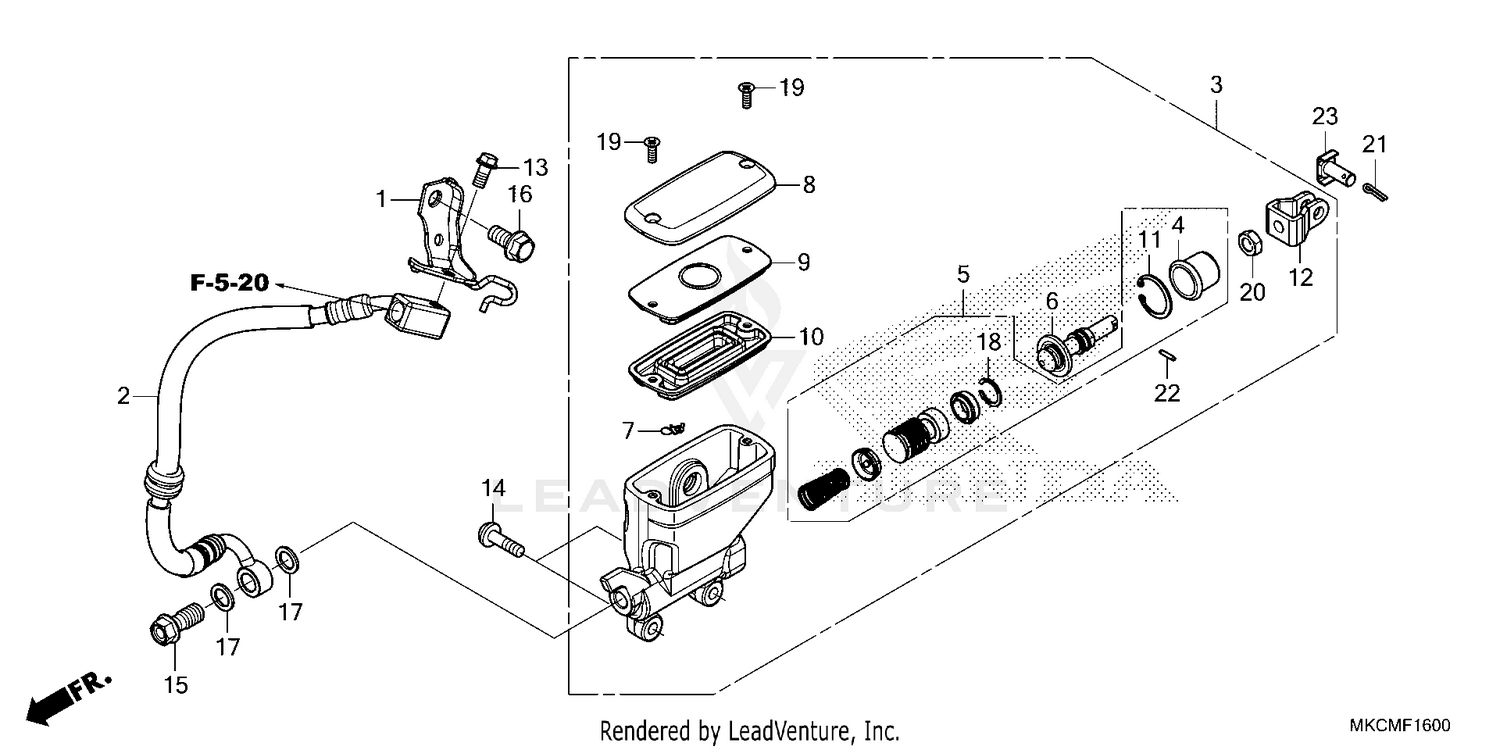

| Ref | Part Number | Description |
|---|
| 1 |
43163-MKC-A20 |
STAY B, RR. BRAKE Price: $10.42 |
| 2 |
43310-MKC-A01 |
HOSE A, RR. BRAKE Price: $57.56 |
| 3 |
43500-MKC-A01 |
MASTER CYLINDER ASSY., RR. (NISSIN) Price: $292.69 |
| 4 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 5 |
43520-MKC-A01 |
PISTON SET, RR. MASTER CYLINDER Price: $30.24 |
| 6 |
43530-MKC-A01 |
ROD ASSY., PUSH Price: $25.42 |
| 7 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 8 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 9 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 10 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 11 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 12 |
46504-MAH-671 |
JOINT, BRAKE ROD Price: $16.33 |
| 13 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 14 |
90144-MKC-A00 |
BOLT, RR. MASTER CYLINDER (6X21) Price: $3.53 |
| 15 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 16 |
90164-GHB-630 |
BOLT, FLANGE (8X16) Price: $2.42 |
| 17 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 18 |
90651-MBG-006 |
CIRCLIP, PISTON Price: $3.25 |
| 19 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 20 |
94002-080700S |
NUT,HEX 8MM Price: $1.37 |
| 21 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 22 |
94305-20102 |
PIN, SPRING (2X10) Price: $1.00 |
