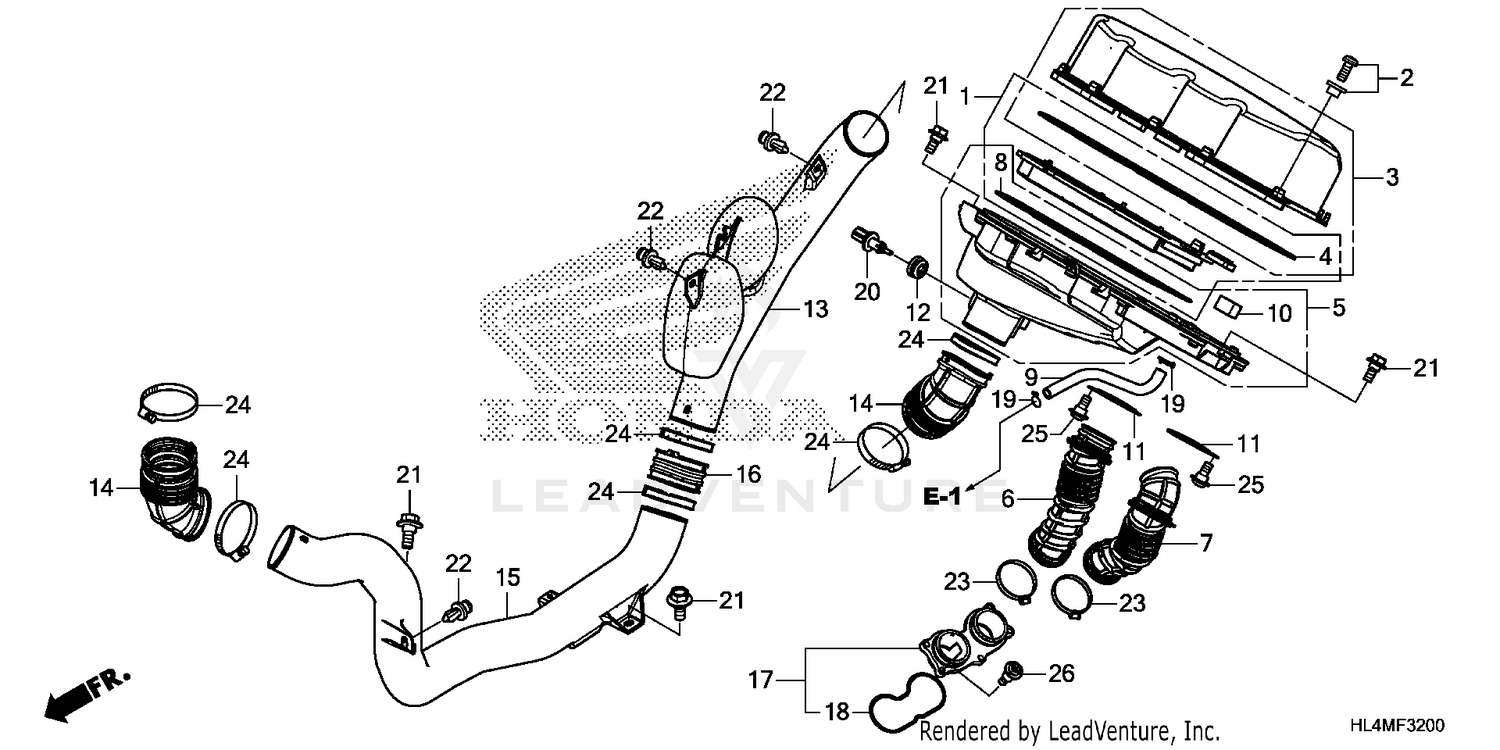

| Ref | Part Number | Description |
|---|
| 1 |
17215-HL4-AK0 |
SET, ELEMENT COMP This part replaces 17215-HL4-A02. Price: $65.56 |
| 2 |
90102-HL4-AK0 |
SCREW, SPL (5X12) This part replaces 17216-HL4-A00. Price: $5.87 |
| 3 |
17220-HL4-A01 |
COVER SUB-ASSY., AIR CLEANER Price: $62.33 |
| 4 |
17222-HL4-A01 |
SEAL, COVER Price: $18.95 |
| 5 |
17230-HL4-A01 |
CASE SUB-ASSY., AIR CLEANER Price: $99.55 |
| 6 |
17232-HL4-A00 |
TUBE A, AIR CLEANER CONNECTING Price: $35.62 |
| 7 |
17233-HL4-A00 |
TUBE B, AIR CLEANER Price: $63.60 |
| 8 |
17234-HL4-A01 |
SEAL, CASE Price: $23.93 |
| 9 |
17235-HL4-A00 |
TUBE, BREATHER Price: $10.55 |
| 10 |
17237-HL4-A00 |
FILTER, BREATHER ROOM Price: $0.67 |
| 11 |
17238-HL4-A00 |
PLATE, RING Price: $4.35 |
| 12 |
17239-HL4-A00 |
GROMMET, TA SENSOR Price: $1.31 |
| 13 |
17241-HL4-A01 |
DUCT A, SNORKEL Price: $46.11 |
| 14 |
17242-HL4-A00 |
TUBE A, SNORKEL Price: $18.18 |
| 15 |
17243-HL4-F02 |
DUCT B, SNORKEL This part replaces 17243-HL4-F00. Price: $61.82 |
| 16 |
17244-HL4-F00 |
TUBE B, SNORKEL Price: $3.05 |
| 17 |
17250-HL4-A00 |
PLATE ASSY., THROTTLE BODY SETTING Price: $10.89 |
| 18 |
17252-HL4-305 |
SEAL, SETTING PLATE Price: $4.42 |
| 19 |
17316-611-000 |
CLIP, OIL DRAIN TUBE Price: $11.18 |
| 20 |
37880-RE1-Z01 |
SENSOR ASSY., AIR TEMPERATURE Price: $42.87 |
| 21 |
90111-162-000 |
BOLT, FLANGE (6MM) Price: $3.29 |
| 22 |
90653-HC4-900 |
CLIP, SPLASH GUARD (Honda Code 3795994) Price: $0.67 |
| 23 |
90662-HN5-M00 |
BAND, AIR CLEANER CONNECTING TUBE (62) Price: $1.67 |
| 24 |
90680-HP5-600 |
BAND, AIR CLEANER ELEMENT Price: $12.82 |
| 25 |
91508-HL4-A00 |
SCREW, PAN (5MM) Price: $0.53 |
