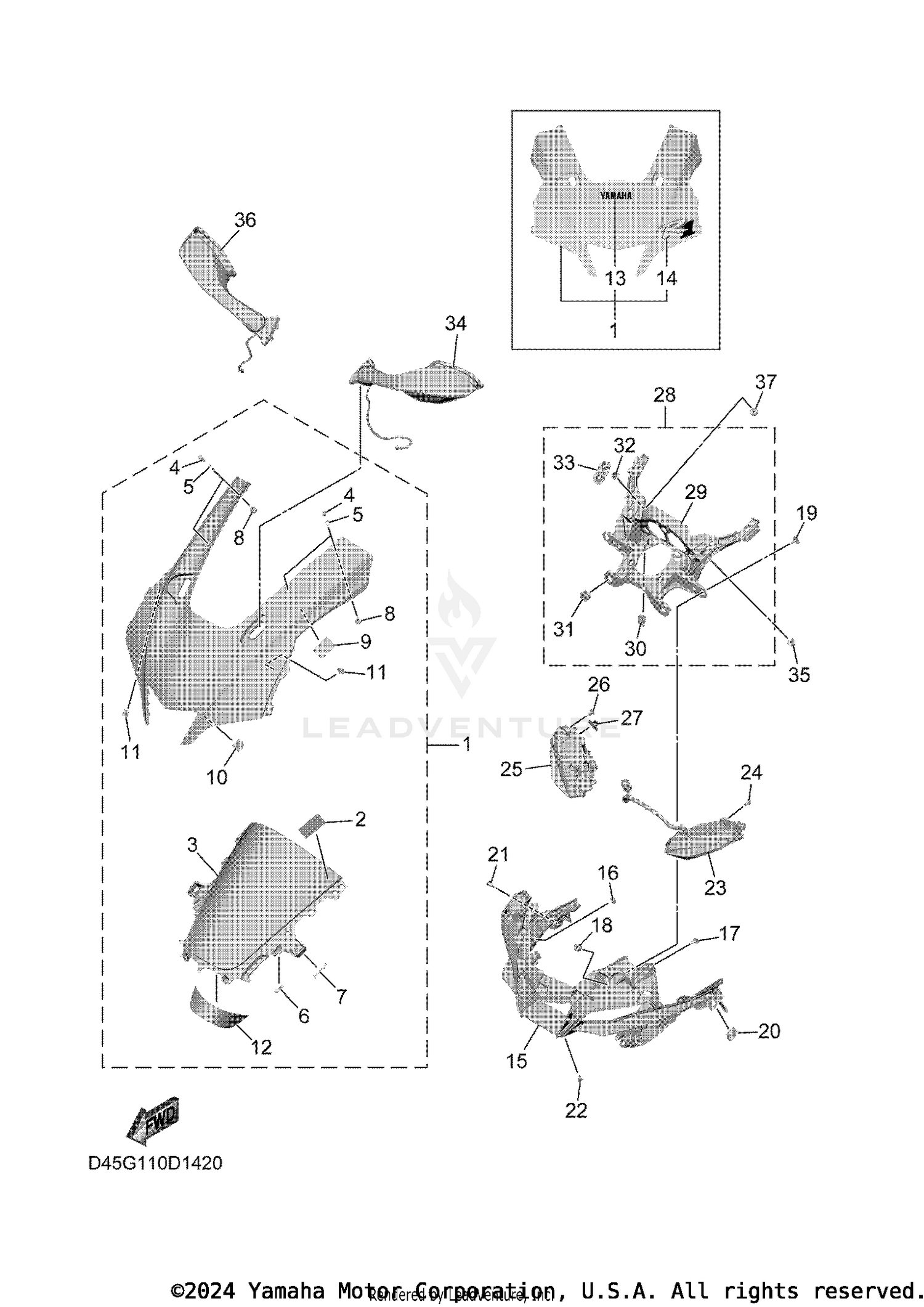

| Ref | Part Number | Description |
|---|
| 2 |
4B5-2815K-00-00 |
LABEL, NOTICE WINDSHIELD 1 Price: $8.49 |
| 4 |
2CR-28333-00-00 |
BOLT Price: $5.99 |
| 5 |
90202-05088-00 |
WASHER, PLATE Price: $7.70 |
| 6 |
1S4-2476U-00-00 |
PROTECTOR 1 Price: $3.15 |
| 7 |
3P6-28307-00-00 |
SEAL Price: $3.65 |
| 8 |
90179-05523-00 |
NUT Price: $7.49 |
| 9 |
33D-23472-00-00 |
PROTECTOR Price: $5.99 |
| 10 |
90520-01001-00 |
DAMPER, PLATE Price: $9.49 |
| 11 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 12 |
B3L-2832P-00-00 |
GRAPHIC, 18 Price: $32.99 |
| 13 |
99241-00080-00 |
EMBLEM, YAMAHA Price: $15.49 |
| 14 |
D45-2839H-00-00 |
EMBLEM 1 Price: $40.99 |
| 15 |
B3L-2835H-00-00 |
BODY, FRONT UPPER 2 Price: $70.99 |
| 16 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 17 |
90111-05045-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 18 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 19 |
90164-05001-00 |
SCREW, TAPPING Price: $9.49 |
| 20 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 21 |
90269-06008-00 |
RIVET Price: $9.49 |
| 22 |
90269-06018-00 |
RIVET Price: $2.45 |
| 23 |
B3L-84301-00-00 |
PILOT LIGHT ASSY 1 Price: $360.99 |
| 24 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 25 |
B3L-84302-00-00 |
PILOT LIGHT ASSY 2 Price: $401.99 |
| 26 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 27 |
90464-09009-00 |
CLAMP Price: $8.49 |
| 28 |
B3L-28320-00-00 |
LEG SHIELD STAY SET Price: $153.99 |
| 29 |
2CR-28356-00-00 |
STAY 1 Price: $76.99 |
| 30 |
90183-060A1-00 |
NUT, SPRING Price: $10.49 |
| 31 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 32 |
2CR-284AK-00-00 |
COLLAR ,4 Price: $5.99 |
| 33 |
4C8-26298-00-00 |
PLATE, MIRROR FITTING 1 Price: $8.49 |
| 34 |
B3L-F6280-30-00 |
REAR VIEW MIRROR A Price: $260.99 |
| 35 |
90176-06055-00 |
NUT, CROWN Price: $6.49 |
| 36 |
B3L-F6290-30-00 |
REAR VIEW MIRROR A Price: $260.99 |
