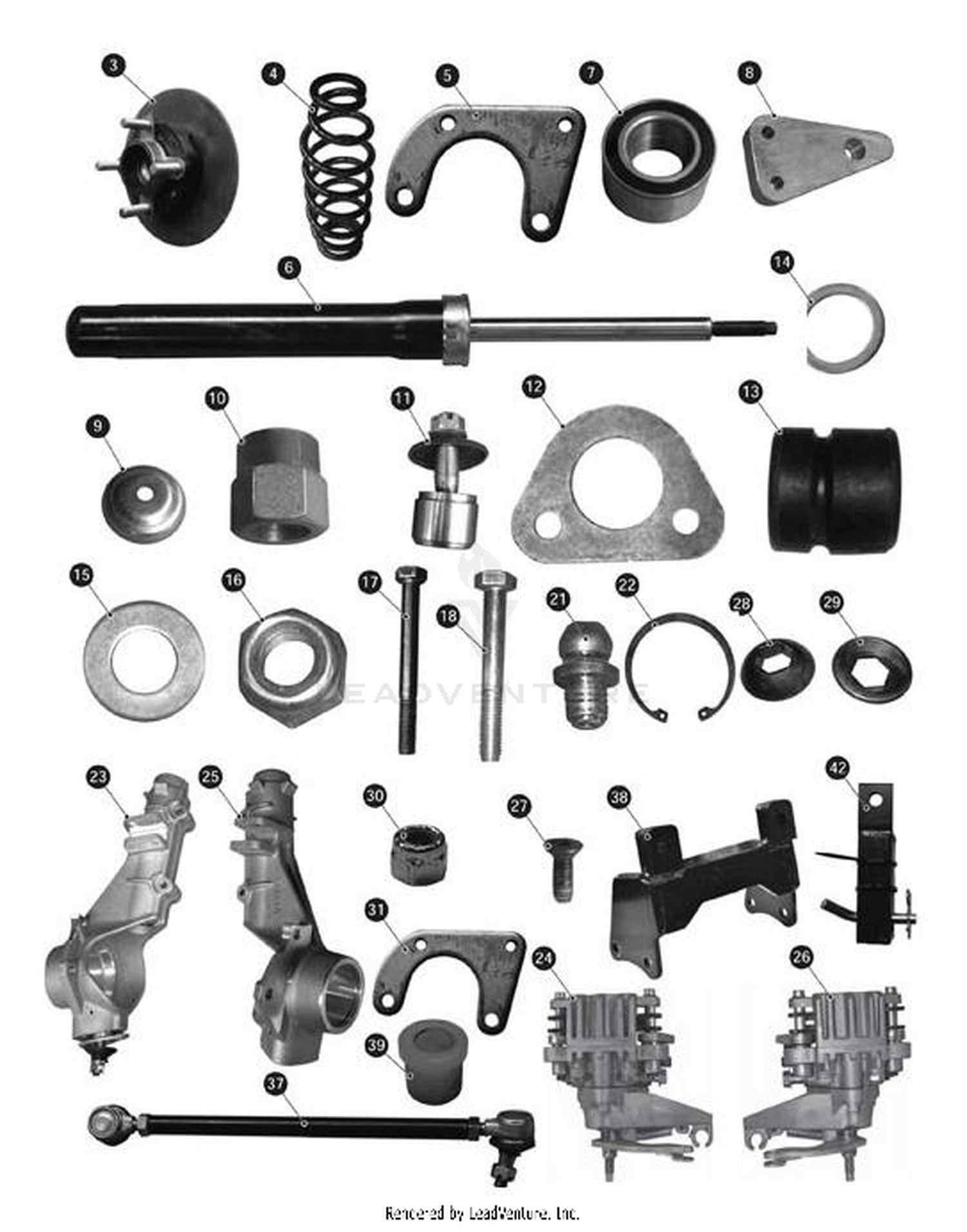

| Ref | Part Number | Description |
|---|
| 3 |
633792G02 |
DISC BRAKE ROTOR HUB This part replaces 616044. Price: $250.99 |
| 4 |
616062 |
SPRING,COIL Price: $89.99 |
| 5 |
616451 |
CALIPER MOUNTING BRACKET Price: $77.99 |
| 6 |
634705 |
SHOCK STRUT This part replaces 616040. Price: $170.99 |
| 7 |
616041 |
XT Wheel Bearing Price: $94.97 |
| 8 |
616047 |
SVC - XT STEERING ARM - ALUMINUM Price: $116.54 |
| 9 |
616055 |
R/B 618737 XT CAP REAR SPRING Not Available Price: |
| 10 |
616056 |
SPRING RETAINING NUT, M12 - 1.25 Price: $8.99 |
| 11 |
616064 |
SET STRUT BALL JOINT (3 PCS) Price: $32.58 |
| 12 |
616066 |
XT BALL JOINT RETAINER Not Available Price: |
| 13 |
616073 |
STRUT BUMP STOPS Price: $7.69 |
| 14 |
616060 |
STRUT WASHER (COIL SPRING), 52MM Price: $3.99 |
| 15 |
616592 |
R/B 616671 M8 DIN 1.25 STL FLAT WASH Not Available Price: |
| 16 |
616593 |
M81.25 DIN 985 Zinc Plt Nylon I Price: $1.57 |
| 17 |
616595 |
M8x 1.25x60mm DIN931 CLASS 8.8 This part replaces 616594. Price: $4.99 |
| 18 |
616595 |
M8x 1.25x60mm DIN931 CLASS 8.8 Price: $4.99 |
| 19 |
616596 |
CALLIPER BOLTS, 3/8 - 24 X 3/4 Price: $2.99 |
| 20 |
616597 |
FLAT HEAD TORX SCREW, 1/4-20 X 3/4 Price: $0.99 |
| 21 |
10389G3 |
GREASE FITTING (STRAIGHT) Price: $2.99 |
| 22 |
616051 |
XT SNAP RING Price: $0.99 |
| 23 |
642461G01 |
STRUT/BEARING ASSY, DRIVER SIDE This part replaces 616038. Price: $411.99 |
| 24 |
638127 |
BRAKE CALIPER, DRIVER SIDE This part replaces 616439. Price: $308.99 |
| 25 |
640715G02 |
STRUT/BEARING, ASSY - RH This part replaces 616039. Price: $275.53 |
| 26 |
638128 |
BRAKE CALIPER, PASS. SIDE This part replaces 616440. Price: $308.99 |
| 27 |
616065 |
R/B 616597 XT Ball Joint Ret Screws Not Available Price: |
| 28 |
616058 |
XT STRUT BUSHING MALE Not Available Price: |
| 29 |
629592 |
STRUT BUSHING, FEMALE This part replaces 616057. Price: $3.99 |
| 30 |
625748 |
NYLOCK NUT, M12-1.25 This part replaces 616061. Price: $2.99 |
| 31 |
616596 |
CALLIPER BOLTS, 3/8 - 24 X 3/4 This part replaces 616452. Price: $2.99 |
| 37 |
616068 |
XT TIE ROD, REAR (8 3/8') Price: $87.94 |
| 38 |
616028 |
XT Rear Differential Tie Rod Bracket Not Available Price: |
| 39 |
616036 |
SVC-BUSHING, LOWER CONTROL A-ARM Price: $10.99 |
| 40 |
616042 |
XT Hub Spacer, Outer Not Available Price: |
| 41 |
616043 |
XT Spacer, Hub Not Available Price: |
