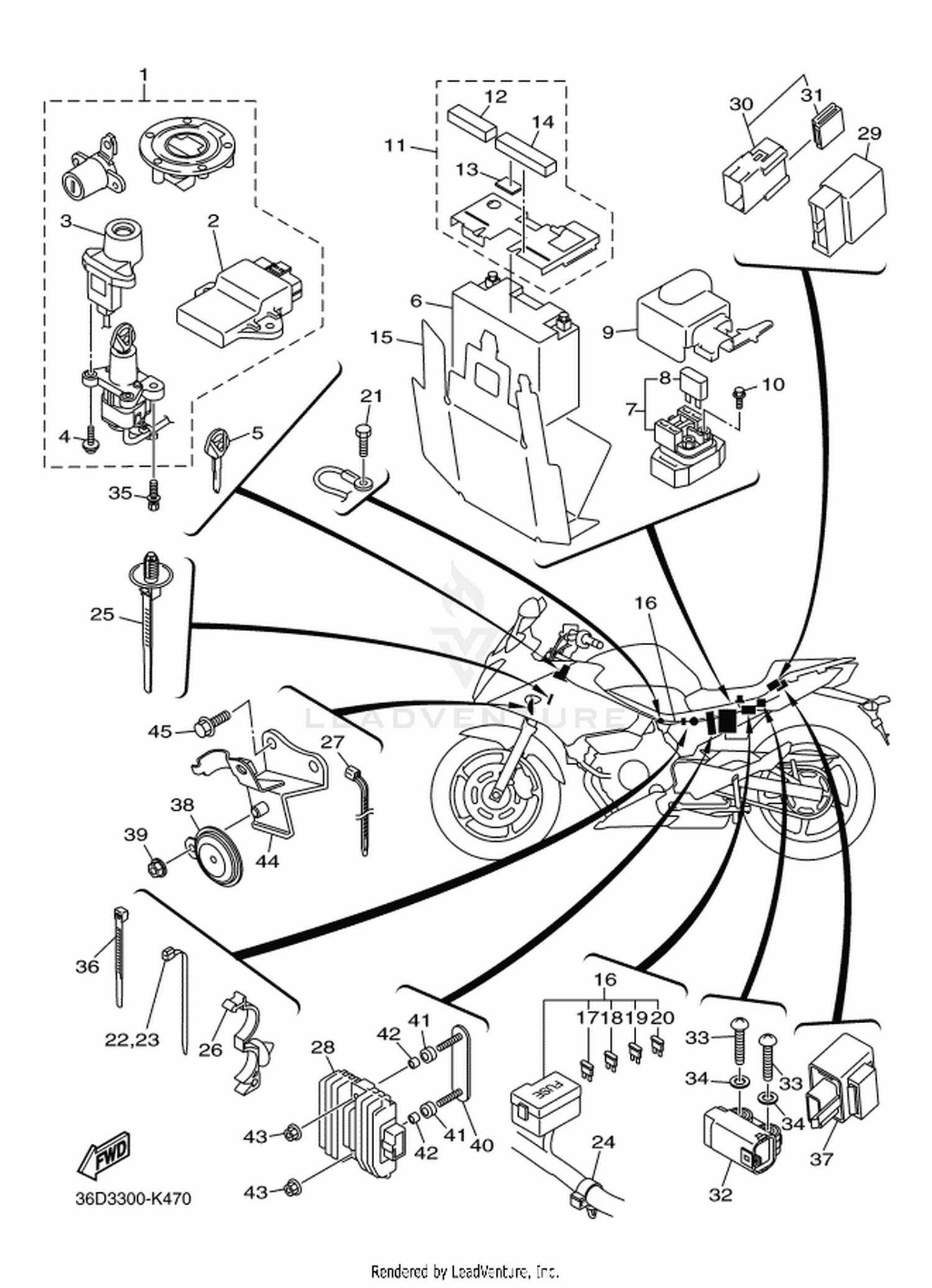

47 ELECTRICAL 2
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36C-W8250-30 | MAIN SW. IMMOBILIZER KIT Price: Call Us |
| 6 | 4TX-82100-02 | BATTERY ASSY (GS GT12B-4) Price: Call Us |
| 7 | 4SV-81940-12 | STARTER RELAY ASSY (RC19-015) Price: Call Us |
| 9 | 20S-82119-00 | COVER, LEAD WIRE Price: Call Us |
| 10 | 95022-06008 | BOLT, FLANGE Price: Call Us |
| 11 | 20S-82160-00 | BATTERY COVER ASSY Price: Call Us |
| 12 | 5VK-21746-00 | DAMPER Price: Call Us |
| 15 | 20S-82122-01 | SEAT, BATTERY Price: Call Us |
| 16 | 36D-82590-10 | WIRE HARNESS ASSY Price: Call Us |
| 18 | 5JJ-82151-20 | FUSE (20A-BL) Price: Call Us |
| 22 | 90464-13073 | CLAMP Price: Call Us |
| 23 | 90464-13077 | CLAMP Price: Call Us |
| 24 | 90464-20010 | CLAMP Price: Call Us |
| 25 | 90464-20213 | CLAMP Price: Call Us |
| 26 | 90464-20010 | CLAMP Price: Call Us |
| 27 | 90464-15195 | CLAMP Price: Call Us |
| 28 | 5SL-81960-00 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 29 | 5VK-81950-40 | RELAY ASSY Price: Call Us |
| 30 | 5JJ-81950-20 | RELAY ASSY Price: Call Us |
| 32 | 5PS-82576-01 | LEAN ANGLE SENSOR Price: Call Us |
| 33 | 90160-04009 | SCREW, ROUND TAPPING Price: Call Us |
| 34 | 90201-04030 | WASHER, PLATE Price: Call Us |
| 35 | 90109-08195 | BOLT Price: Call Us |
| 36 | 90465-15011 | CLAMP Price: Call Us |
| 37 | 3XV-83350-21 | FLASHER RELAY ASSY Price: Call Us |
| 38 | 20S-83371-00 | HORN Price: Call Us |
| 39 | 95702-08500 | NUT, WITH WASHER Price: Call Us |
| 40 | 20S-21689-00 | BRACKET, REAR STAY 2 Price: Call Us |
| 41 | 90480-16007 | GROMMET Price: Call Us |
| 42 | 90387-064T3 | COLLAR Price: Call Us |
| 43 | 95702-06500 | NUT, WITH WASHER Price: Call Us |
| 44 | 20S-23377-00 | BRACKET, HORN Price: Call Us |
