| Ref | Part Number | Description |
|---|
| 1 |
31600-MKJ-D01 |
RECTIFIER, REGULATOR Price: $431.84 |
| 2 |
31700-MM8-610 |
RECTIFIER, SILICON Price: $28.55 |
| 3 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 4 |
32100-K87-L80 |

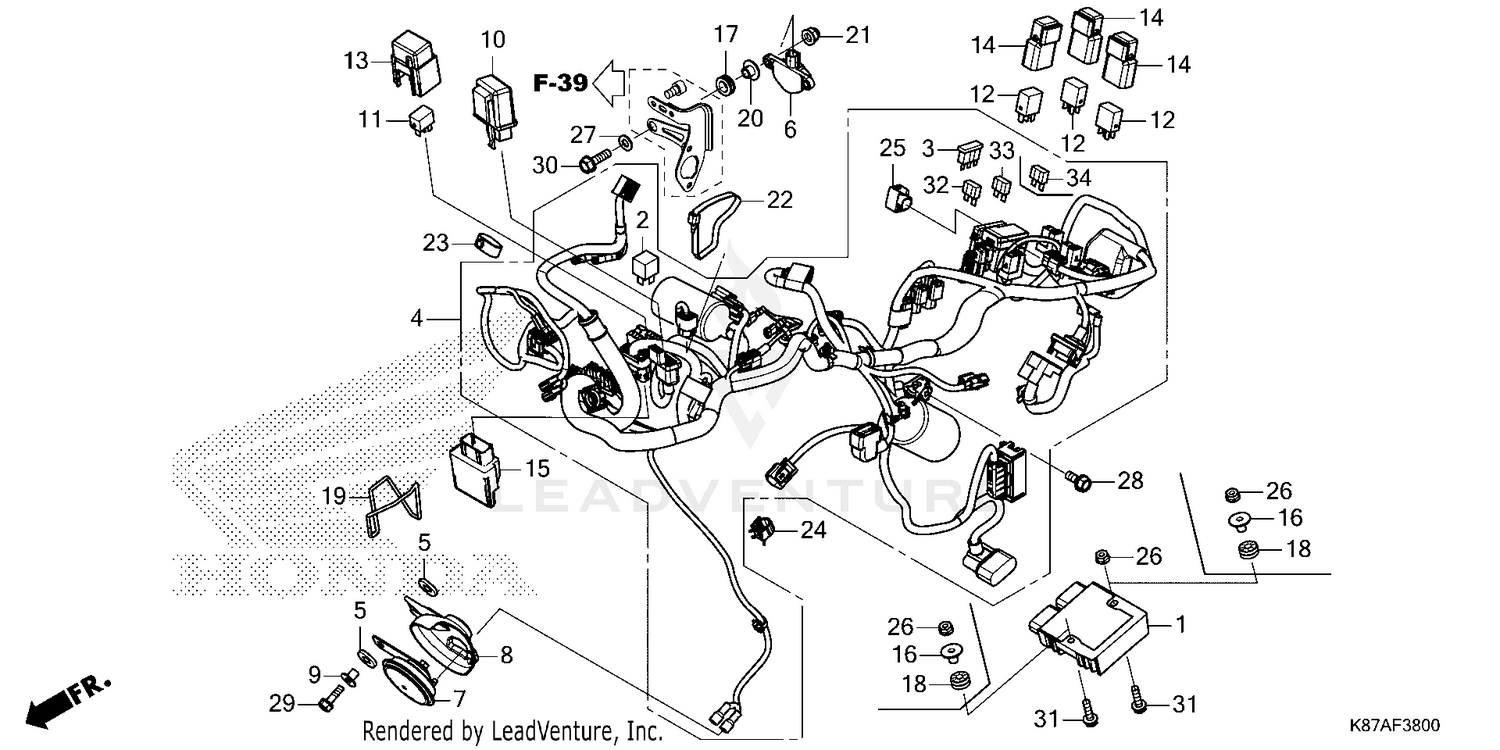

WIRE HARNESS Price: $1,365.89 |
| 5 |
33714-KL3-620 |
RUBBER, TAILLIGHT BRACKET Price: $2.87 |
| 6 |
35160-KVS-751 |
SENSOR ASSY., BANK ANGLE (M6) Price: $123.91 |
| 7 |
38110-MGZ-J01 |
HORN (HIGH) Price: $31.75 |
| 8 |
38111-MGZ-J00 |
HEAT GUARD, HORN Price: $4.78 |
| 9 |
38117-MGZ-J00 |
COLLAR, HORN SETTING Price: $1.98 |
| 10 |
38301-KZZ-J01 |
RELAY, TURN SIGNAL Price: $64.98 |
| 11 |
38501-KVZ-631 |
RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA) Price: $13.02 |
| 12 |
38501-MCS-G01 |
RELAY, POWER (MICRO ISO 4P) Price: $13.04 |
| 13 |
38506-KZZ-900 |
COVER, RELAY (2P) Price: $4.13 |
| 14 |
38506-MCS-G00 |
SUSPENSION, POWER RELAY Price: $7.02 |
| 15 |
38770-K87-L81 |
PGM-FI UNIT Price: $211.85 |
| 17 |
64535-MFJ-D00 |
RUBBER, SIDE COVER Price: $2.22 |
| 19 |
83606-KWS-901 |
BAND, TOOL Price: $4.27 |
| 20 |
90129-MGZ-J00 |
COLLAR, BANK ANGLE SENSOR Price: $2.62 |
| 21 |
90202-KCW-870 |
NUT, CAP (6MM) Price: $3.32 |
| 22 |
90620-SB2-003 |
BAND, WIRE HARNESS Price: $27.07 |
| 23 |
90652-MKH-D20 |
BAND, RUBBER (50) Price: $3.35 |
| 24 |
90690-GHB-631 |
CLIP, CABLE (8MM) Price: $2.49 |
| 25 |
91771-MKG-D81 |
CONNECTOR, DUMMY (6P 025M) Price: $9.73 |
| 26 |
94050-06070 |
NUT, FLANGE (6MM) Price: $1.52 |
| 27 |
94101-06800 |
WASHER, PLAIN (6MM) (USED ON TAILLIGHT) Price: $0.68 |
| 28 |
95701-06014-08 |
BOLT, FLANGE (6X14) Price: $1.70 |
| 29 |
95701-06020-07 |
BOLT, FLANGE (6X20) Price: $1.70 |
| 30 |
95701-06020-08 |
BOLT, FLANGE (6X20) Price: $0.40 |
| 31 |
95701-06022-07 |
BOLT, FLANGE (6X22) Price: $1.07 |
| 32 |
98200-40750 |
FUSE F (7.5A) (MINI) Price: $1.27 |
| 33 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
