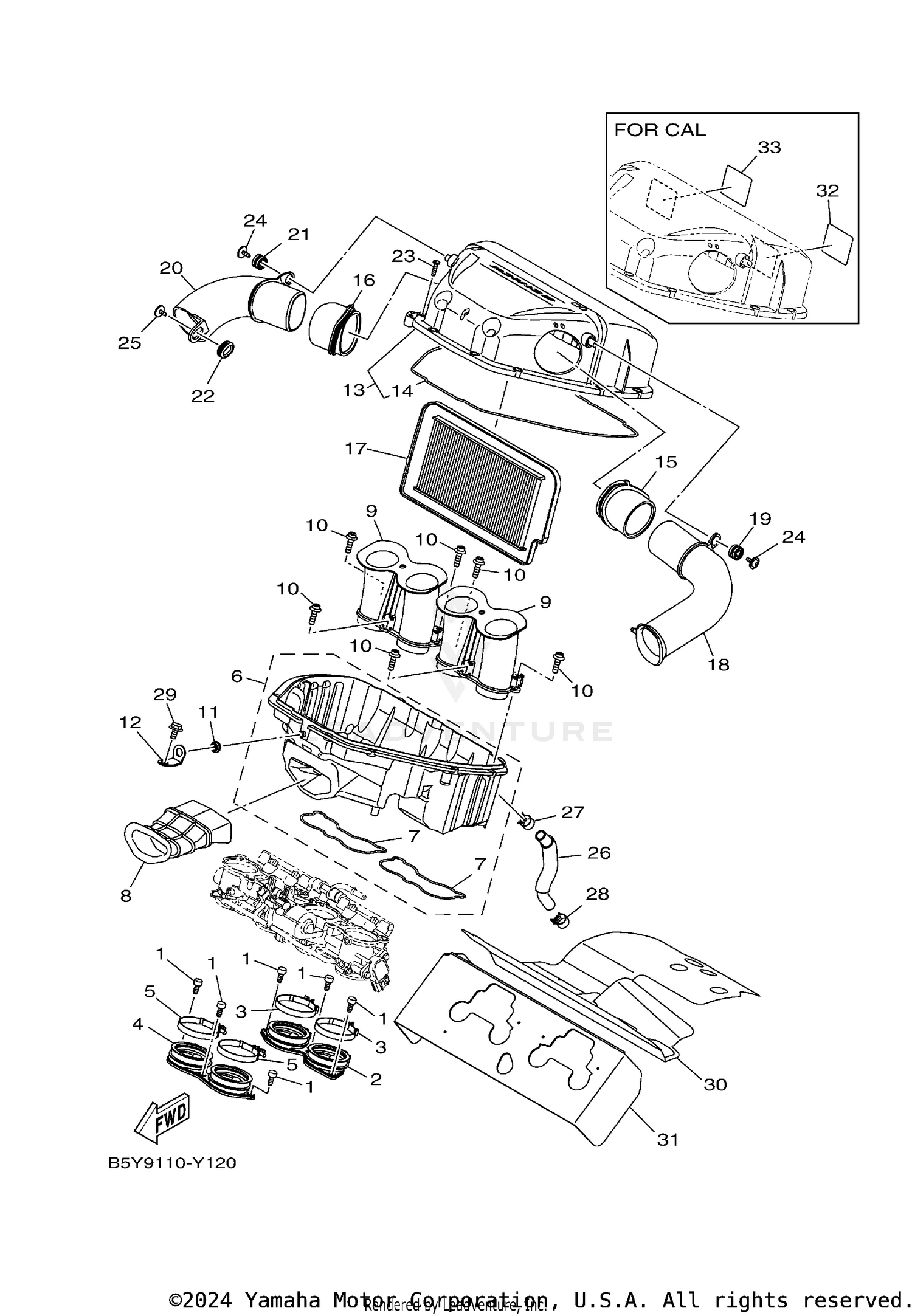

| Ref | Part Number | Description |
|---|
| 1 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 2 |
2CR-13635-00-00 |
JOINT, INTAKE 1 Price: $57.99 |
| 3 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 4 |
2CR-13636-00-00 |
JOINT, INTAKE 2 Price: $57.99 |
| 5 |
90450-60004-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 6 |
B5Y-14411-00-00 |
CASE, AIR CLEANER 1 Price: $122.99 |
| 7 |
2CR-14457-00-00 |
SEAL Price: $8.49 |
| 8 |
B5Y-1443L-00-00 |
DUCT, AIR Price: $60.99 |
| 9 |
B67-14469-01-00 |
FUNNEL, AIR Price: $53.99 |
| 10 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 11 |
90480-12010-00 |
GROMMET Price: $6.49 |
| 12 |
B67-14498-00-00 |
STAY 1 Price: $6.99 |
| 13 |
B5Y-14421-00-00 |
CASE, AIR CLEANER 2 Price: $137.99 |
| 15 |
B5Y-14453-00-00 |
JOINT, AIR CLEANER 1 Price: $35.99 |
| 16 |
B5Y-14463-00-00 |
JOINT, AIR CLEANER 2 Price: $34.99 |
| 17 |
B5Y-14451-00-00 |
ELEMENT, AIR CLEANER Price: $74.99 |
| 18 |
B5Y-14437-10-00 |
DUCT Price: $114.99 |
| 19 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 20 |
B5Y-1443A-10-00 |
DUCT Price: $82.99 |
| 21 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 22 |
B5Y-14435-00-00 |
GROMMET Price: $9.49 |
| 23 |
98907-05020-00 |
SCREW, BIND Price: $9.49 |
| 24 |
90167-05020-00 |
SCREW, TAPPING Price: $3.95 |
| 25 |
90164-05001-00 |
SCREW, TAPPING Price: $9.49 |
| 26 |
2CR-15393-00-00 |
PIPE, BREATHER 2 Price: $15.49 |
| 27 |
90467-15001-00 |
CLIP Price: $8.49 |
| 28 |
90467-160A6-00 |
CLIP Price: $3.50 |
| 29 |
90119-06051-00 |
BOLT, WITH WASHER Price: $9.49 |
| 30 |
B5Y-12682-00-00 |
PROTECTOR, HEAT Price: $67.99 |
| 31 |
B3L-12683-00-00 |
PROTECTOR, HEAT Price: $38.99 |
