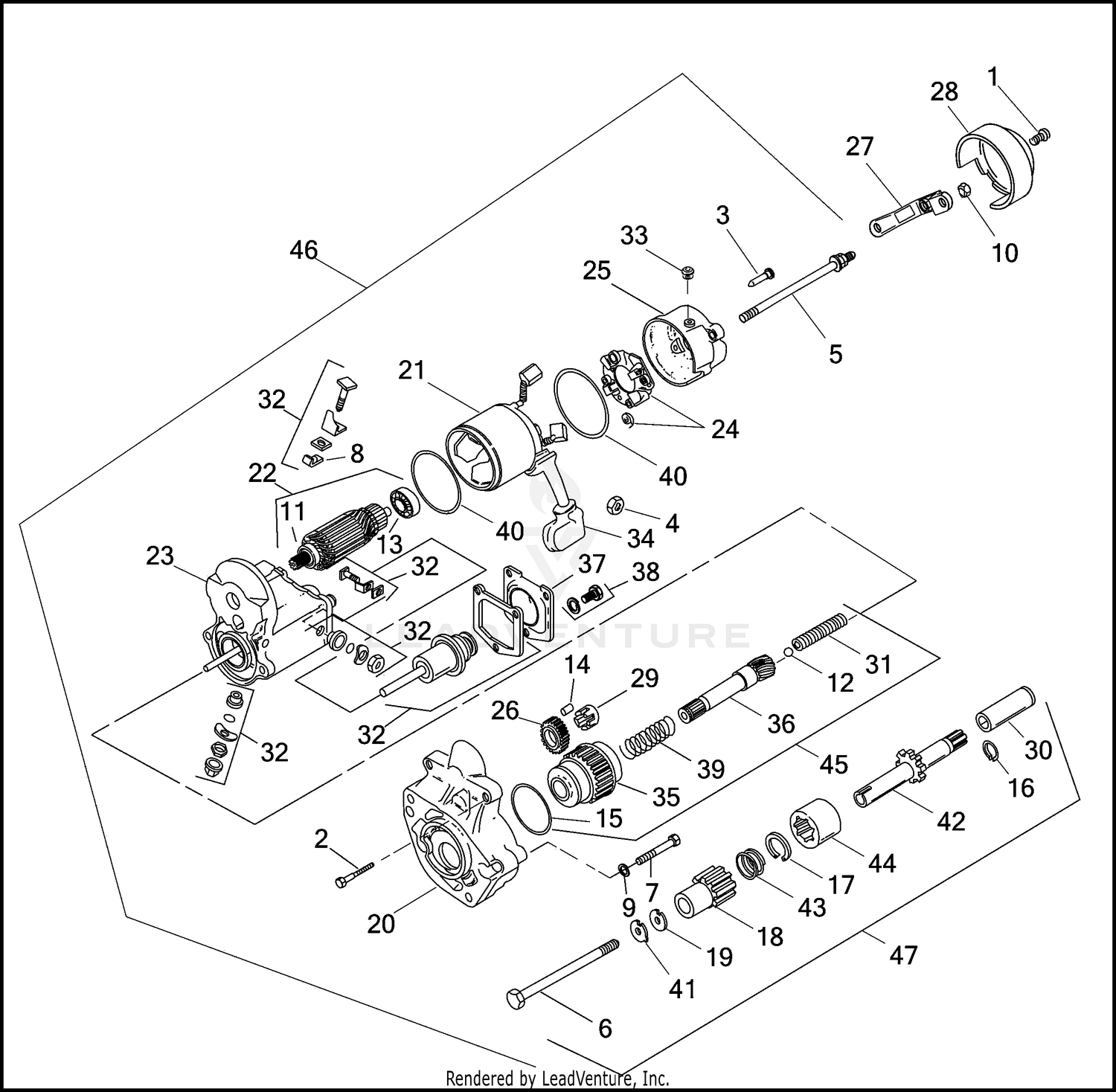

STARTER MOTOR

STARTER MOTOR

Parts (46)

RefPart NumberDescription
1 925 SCREW 1/4-28 X 5/8 SOCKET BUTTON HD. (GRADE 8) Price: $1.15
2 928 BOLT M5 X 0.8 X 35.2 HEX HD. Not Available Price:
3 929A SCREW M4 X 0.7 X 11.8 FLANGE HD. Not Available Price:
4 3403 LOCKNUT M8-1.25 X 12MM FLANGE (ZINC) Not Available Price:
5 3559 BOLT STARTER Not Available Price:
6 4358A SCREW NO. 10-32 X 5.250 HEX HD. (ZINC PLATE) Not Available Price:
7 4326A SCREW 5/16-18 X 2 SOCKET HD. Price: $1.49
8 6217 WASHER (USE 31604-91A) Not Available Price:
9 7041 LOCKWASHER,REGULAR Price: $0.59
10 7838 NUT NO. 10-24 KEPS Price: $0.59
11 8871 BALL BEARING Not Available Price:
12 8879 BALL Not Available Price:
13 8883 BALL BEARING Not Available Price:
14 9077 CLUTCH ROLLER Not Available Price:
15 10957 O-RING (USE 31516-94A) Not Available Price:
16 11182 RETAINING RING Not Available Price:
17 11248 RETAINING RING Price: $0.61
18 31342-94 PINION GEAR Price: $230.61
19 31430-94 WASHER THRUST Price: $6.25
20 31510-90 HOUSING STARTER Not Available Price:
21 31521-98 YOKE ASSEMBLY STARTER (USE 31553-94B) Not Available Price:
22 31515-90 ARMATURE ASSEMBLY W/ 8871 & 8883 Not Available Price:
23 31538-98 SWITCH KIT MAGNETIC Not Available Price:
24 31518-90 BRUSH HOLDER ASSEMBLY W/ SPRING Not Available Price:
25 31519-90 FRAME STARTER END Not Available Price:
26 31525-90 IDLER GEAR (USE 31553-94B) Not Available Price:
27 31527-90 BRACKET COVER Not Available Price:
28 31535-91 COVER (CHROME) Not Available Price:
29 31530-90 RETAINER IDLER GEAR Not Available Price:
30 31548-90 COUPLING Not Available Price:
31 31600-90 SPRING RETURN (USE 31516-94A) Not Available Price:
32 31604-91A STARTER SOLENOID REPAIR KIT Price: $85.07
33 31660-90 DRAIN VENT Not Available Price:
34 31662-90 BOOT INSULATING Not Available Price:
35 31663-90 CLUTCH STARTER (USE 31516-94A) Not Available Price:
36 31664-94 SHAFT OUTPUT (USE 31516-94A) Not Available Price:
37 31688-90 COVER SOLENOID Not Available Price:
38 31689-90 BOLT M4 X 0.7 X 12 HEX HD. Not Available Price:
39 31692-90 SPRING Not Available Price:
40 31695-90 O-RING Not Available Price:
41 33126-94 LOCKPLATE Price: $2.34
42 33127-94 SHAFT EXTENSION Not Available Price:
43 33449-94 SPRING PINION GEAR Not Available Price:
44 60647-94 COUPLING (USE 31612-09) Not Available Price:
45 31516-94A CLUTCH ASSEMBLY STARTER W/ 8879, 10957, 31663-90, 31664-94 & 31692-90 Price: $139.71
46 31553-94B STARTER COMPLETE (BLACK TEXTURE) Price: $416.58
