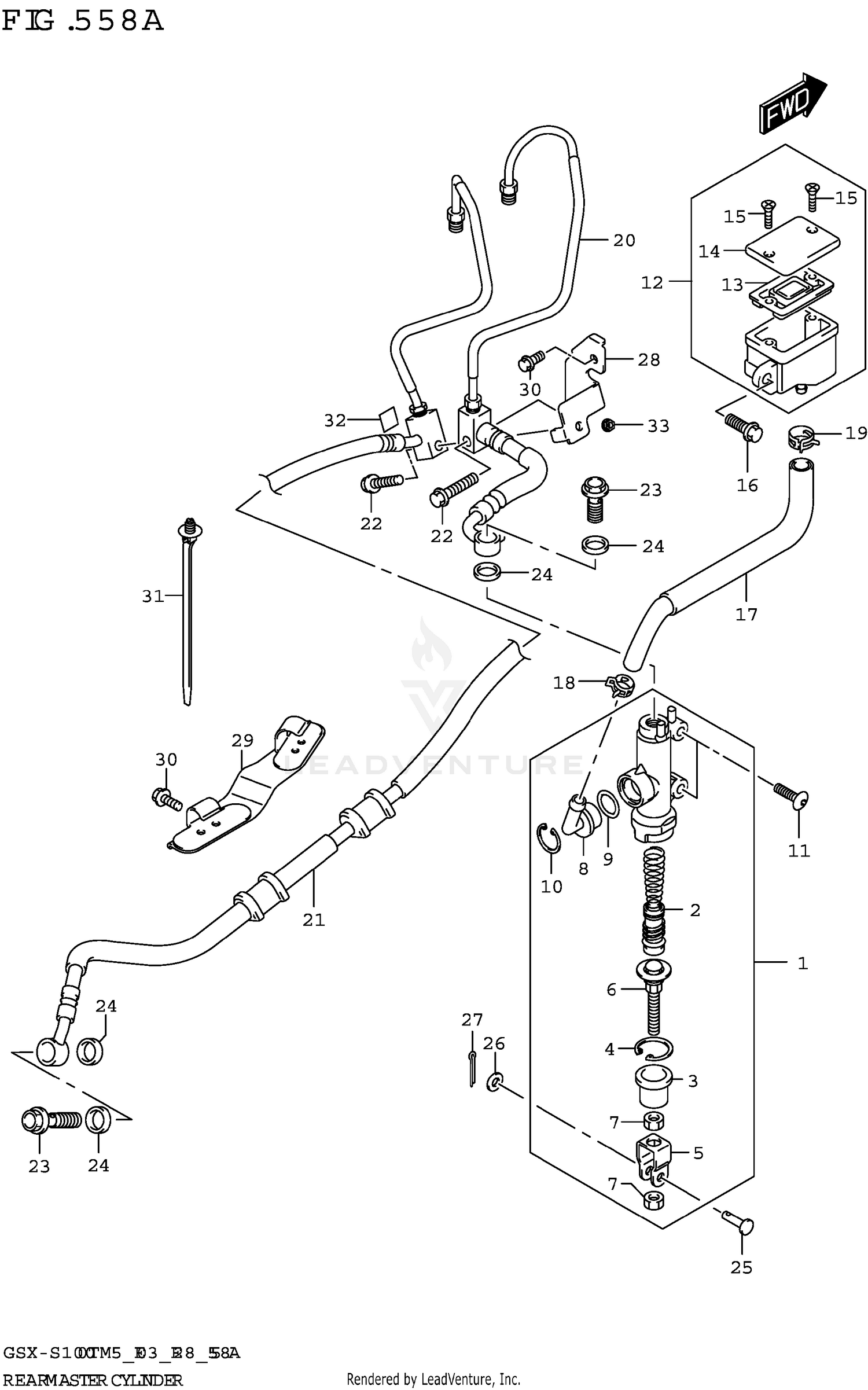

REAR MASTER CYLINDER
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69600-47H31 | CYLINDER ASSY, REAR MASTER Price: $238.05 |
| 11 | 09139-06224 | BOLT Price: $3.89 |
| 12 | 69740-44G00 | TANK ASSY,REAR RESERVOIR Price: $62.58 |
| 16 | 09103-06525 | BOLT (6X12) Price: $1.74 |
| 17 | 69730-48K00 | HOSE, RR RESERVOIR TANK Price: $13.64 |
| 18 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 19 | 09401-15407 | CLIP (ID:14.8) Price: $2.99 |
| 20 | 69200-48K00 | HOSE ASSY, RR BK MASTER TO Price: $72.30 |
| 21 | 69400-04K21 | HOSE ASSY, UNIT TO RR BK CLPR Price: $124.44 |
| 22 | 01547-0625A | BOLT Price: $2.45 |
| 23 | 09360-10053 | UNION (10X1.25X22) Price: $9.38 |
| 24 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 25 | 09200-06068 | PIN (6X18.2) This part replaces 09200-06037. Price: $5.01 |
| 26 | 08322-0106A | WASHER Price: $2.22 |
| 27 | 04111-2015A | PIN Price: $1.48 |
| 28 | 69260-04K10 | CLAMP, RR BRAKE HOSE Price: $8.59 |
| 29 | 69270-04K00 | GUIDE, RR BRAKE HOSE Price: $21.01 |
| 30 | 01547-0612A | BOLT Price: $2.45 |
| 31 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 32 | 69411-04K00 | PROTECTOR, BRAKE HOSE Price: $2.60 |
