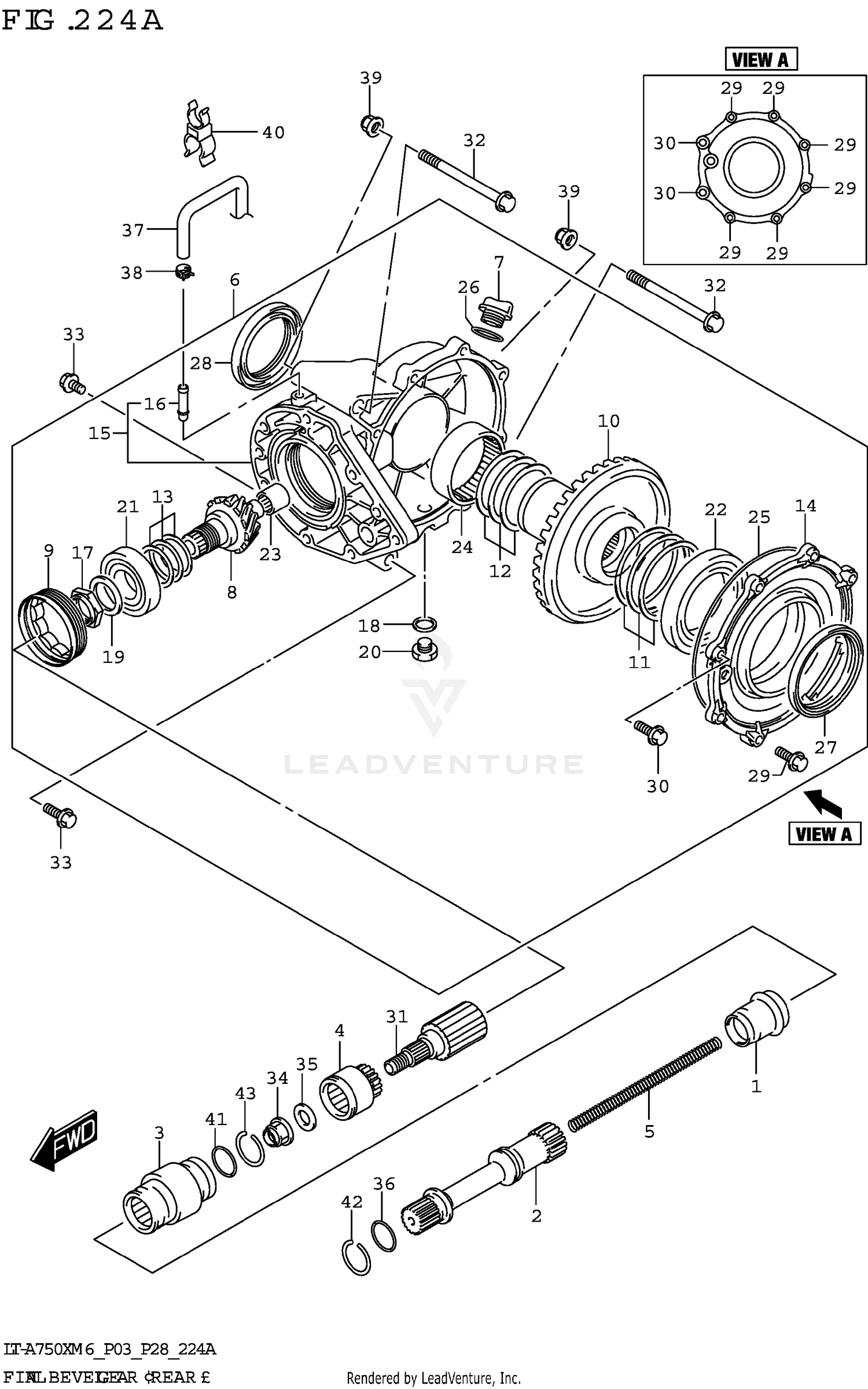

| Ref | Part Number | Description |
|---|
| 1 |
27153-31G42 |
BOOT,JOINT SHAFT Price: $11.72 |
| 2 |
27155-34K00 |
SHAFT,REAR PROPELLER Price: $82.14 |
| 3 |
27157-34K00 |
JOINT,REAR PROPELLER SHAFT Price: $61.46 |
| 4 |
27171-34K00 |
COUPLING,REAR OUTPUT SHAFT Price: $92.92 |
| 5 |
27192-31G10 |
SPRING,REAR PROPELLER SHAFT Price: $7.60 |
| 6 |
27410-31G50 |
CASE ASSY,REAR FINAL GEAR Price: $1,545.40 |
| 7 |
09259-20008-XC0 |
PLUG Price: $9.13 |
| 18 |
09168-14002 |
GASKET (13.8X18.8X4.8) Price: $2.75 |
| 26 |
09280-17003 |
O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 29 |
09103-08357 |
BOLT (8X35) Price: $4.39 |
| 31 |
27594-31G80 |
SHAFT,RR FINAL DRIVE GEAR Price: $208.77 |
| 32 |
09103-10148 |
BOLT (10X110) Price: $8.45 |
| 33 |
09103-10405 |
BOLT (10X30) Price: $4.18 |
| 34 |
09159-16003 |
NUT Price: $4.22 |
| 35 |
09160-16026 |
WASHER (16X30X3) Price: $5.26 |
| 37 |
27491-31G00 |
HOSE,BREATHER Price: $46.73 |
| 38 |
09401-10403 |
CLIP (ID:10) Price: $2.02 |
| 39 |
09159-10115 |
NUT (M10) Price: $4.33 |
| 40 |
09408-00235 |
CLAMP Price: $2.95 |
| 41 |
09280-35008 |
O-RING (D:3.1,ID:34.4) Price: $2.77 |
| 42 |
09381-21002 |
RING,SNAP Price: $1.79 |
