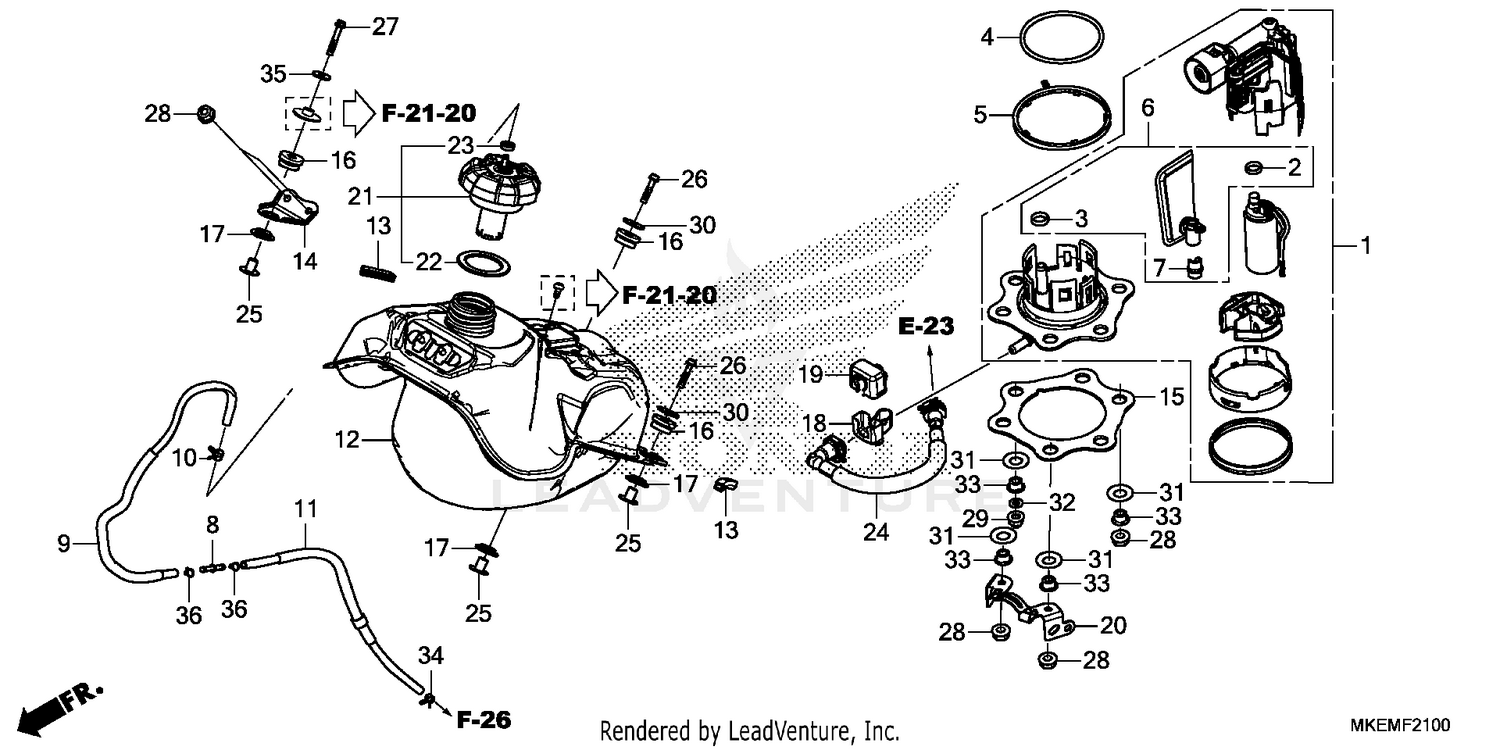

| Ref | Part Number | Description |
|---|
| 1 |
16700-MKE-A51 |
PUMP ASSY., FUEL (MSDS) Price: $561.60 |
| 2 |
16702-KPC-D50 |
O-RING (8.6X1.9) Price: $0.64 |
| 3 |
16702-KTR-940 |
O-RING (10X2.4) Price: $6.64 |
| 4 |
16711-MEN-A30 |
O-RING (3.7X73.9) Price: $14.76 |
| 5 |
16712-MKE-A00 |
DUST SEAL Price: $16.82 |
| 6 |
16715-MEN-A51 |
FILTER SET Price: $77.62 |
| 7 |
16735-MEN-A51 |
RUBBER, STOPPER Price: $9.04 |
| 8 |
16958-GJ6-000 |
JOINT, FUEL TUBE Price: $5.44 |
| 9 |
17311-MKE-A50 |
TUBE, CHARGE Price: $35.53 |
| 10 |
17323-MKE-A51 |
CLAMP, HOSE (9.5) Price: $4.73 |
| 11 |
17324-MKE-A50 |
TUBE B, CHARGE Price: $43.73 |
| 12 |
17510-MKE-A50 |
TANK, FUEL Price: $1,188.69 |
| 13 |
17518-MFN-D00 |
TRIM, FUEL TANK Price: $3.20 |
| 14 |
17518-MKE-A50 |
STAY, FR. FUEL TANK Price: $18.98 |
| 15 |
17519-MKE-A00 |
PLATE, FUEL PUMP Price: $23.76 |
| 16 |
17523-MKE-A50 |
RUBBER, TANK MOUNTING Price: $7.24 |
| 17 |
17524-MKE-A50 |
COLLAR, TANK MOUNTING Price: $13.73 |
| 18 |
17575-KRN-A90 |
COVER, FUEL CONNECTOR Price: $8.69 |
| 19 |
17576-KRN-A90 |
RUBBER, FUEL CONNECTOR Price: $7.40 |
| 20 |
17578-K95-A20 |
GUIDE, STOPPER CABLE Price: $29.29 |
| 21 |
17620-MKE-A52 |
CAP ASSY., FUEL TANK Price: $104.11 |
| 22 |
17622-MKE-A00 |
GASKET, FUEL CAP Price: $7.24 |
| 23 |
17628-MKE-A50 |
CAP, TUBE JOINT Price: $2.58 |
| 24 |
17630-MKE-A01 |
HOSE, FUEL FEED Price: $95.13 |
| 25 |
19052-MAC-680 |
COLLAR, RADIATOR MOUNTING Price: $6.45 |
| 26 |
90020-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.65 |
| 27 |
90021-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.78 |
| 28 |
90217-HW1-670 |
NUT, FLANGE (6MM) (Honda Code 7039662) Price: $2.04 |
| 29 |
90301-MKE-A00 |
NUT, FLANGE CAP (6MM) Price: $4.33 |
| 30 |
90404-GE2-760 |
WASHER, PLAIN (6MM) Price: $2.55 |
| 31 |
90502-MEN-A30 |
WASHER, CONICAL SPRING FUEL PUMP Price: $3.04 |
| 32 |
90504-HW1-670 |
WASHER, PLAIN (6MM) (Honda Code 7039829) Price: $2.13 |
| 33 |
90504-MKE-A00 |
COLLAR, FUEL PUMP Price: $8.15 |
| 34 |
90652-KSJ-A21 |
CLAMP, TUBE (8.0) Price: $1.65 |
| 35 |
94103-06700 |
WASHER, PLAIN (6MM) Price: $0.75 |
