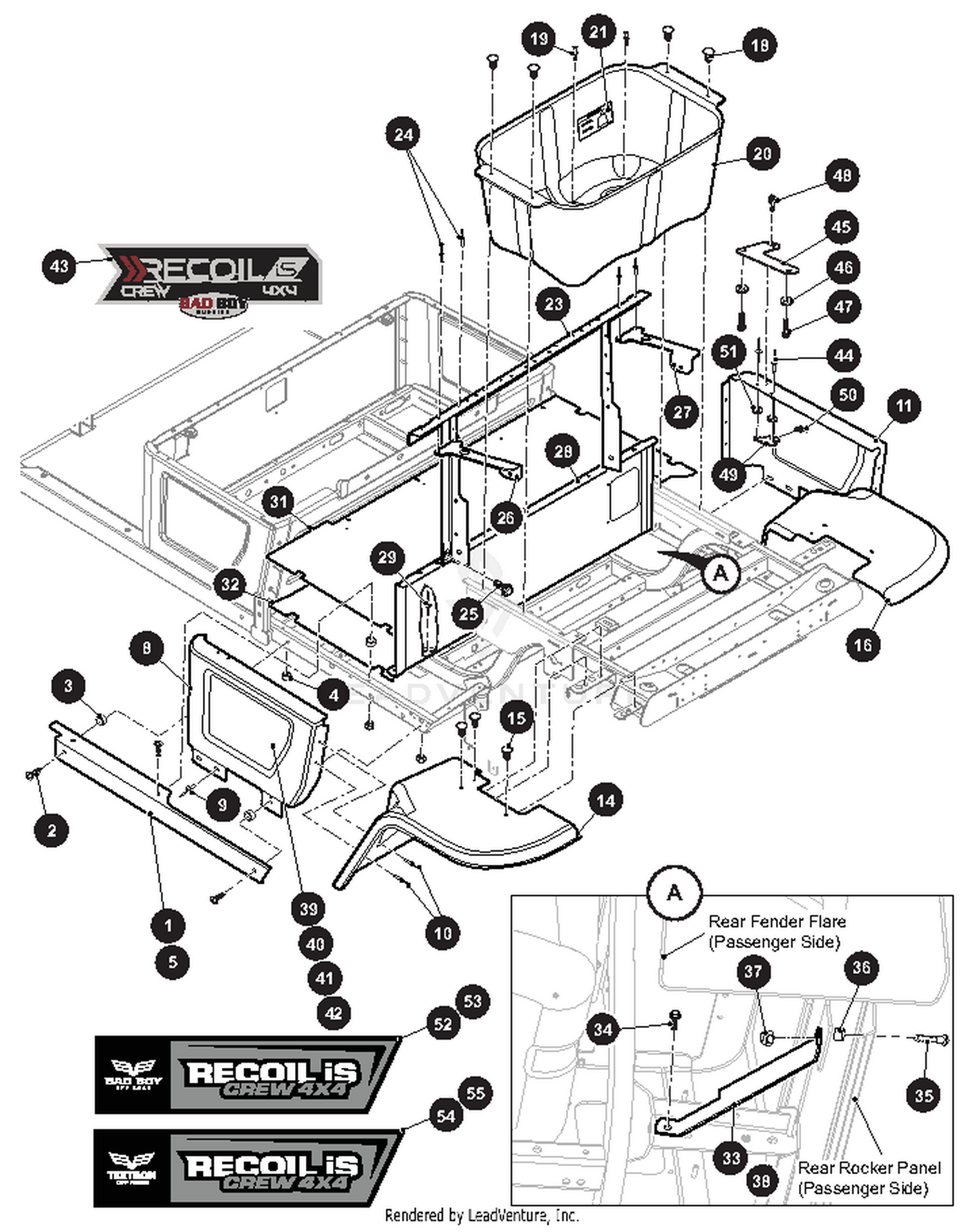

| Ref | Part Number | Description |
|---|
| 1 |
632992G01 |
Needs Description Price: Call Us |
| 2 |
00789G2 |
TRUSS HEAD PHILLIPS SCREW, #10-24X1 1/4 Price: $0.99 |
| 3 |
23726G4 |
SPACER, 5/16 Price: $1.99 |
| 4 |
14390G10 |
LOCK NUT, #10-24 Price: $1.99 |
| 5 |
632992G02 |
Needs Description Price: Call Us |
| 8 |
637456G01 |
WRAP,PANEL,SIDE,REAR SEAT,LH Price: $223.74 |
| 9 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 10 |
71055G01 |
RIVET, 3/16 X .38 Price: $1.99 |
| 11 |
637456G02 |
WRAP,PANEL,SIDE,REAR SEAT,RH Not Available Price: |
| 14 |
637457G01 |
FLARE,FENDER,REAR,LH Not Available Price: |
| 15 |
16816G2 |
RATCHET RIVET, .25X.887 Price: $0.99 |
| 16 |
637457G02 |
FLARE,FENDER,REAR,RH Price: $389.14 |
| 18 |
16816G2 |
RATCHET RIVET, .25X.887 Price: $0.99 |
| 19 |
633165 |
DRAIN PLUG Price: $34.14 |
| 20 |
637123 |
STORAGE,COMPARTMENT,REAR SEAT Price: $388.36 |
| 21 |
638044 |
DECAL,STORAGE,COMPARTMENT Price: $16.83 |
| 23 |
70441G03 |
WELDMENT,SEAT FRAME,TXT ELECTR Price: $42.81 |
| 24 |
10570G11 |
BREAK RIVET, 3/16", DOMED Price: $3.99 |
| 25 |
00715G2 |
HEX WASHER HEAD BOLT, 5/16-18 X 0.8 Price: $1.99 |
| 26 |
642530G01 |
BRACKET,SEAT RETENTION,REAR,LH Price: $14.24 |
| 27 |
642530G02 |
BRACKET,SEAT RETENTION,REAR,RH Price: $10.57 |
| 28 |
637454G02 |
WRAP,PANEL,FRONT,REAR SEAT Not Available Price: |
| 29 |
10570G10 |
DOMED RIVET, SS, 5/32' X 9/16" Price: $1.99 |
| 31 |
632996 |
FLOOR MAT,REAR,DMND PLATE Price: $105.97 |
| 32 |
632993 |
Needs Description Price: Call Us |
| 33 |
71440G03 |
BRACE PANEL, DRIVER SIDE Price: $21.52 |
| 34 |
00715G2 |
HEX WASHER HEAD BOLT, 5/16-18 X 0.8 Price: $1.99 |
| 35 |
00789G2 |
TRUSS HEAD PHILLIPS SCREW, #10-24X1 1/4 Price: $0.99 |
| 36 |
23726G4 |
SPACER, 5/16 Price: $1.99 |
| 37 |
14390G10 |
LOCK NUT, #10-24 Price: $1.99 |
| 38 |
71440G04 |
BRACE PANEL, PASS. SIDE Price: $20.90 |
| 39 |
655791G1XX |
Needs Description Price: Call Us |
| 40 |
655792G1XX |
Needs Description Price: Call Us |
| 41 |
638047G1XX |
Needs Description Price: Call Us |
| 42 |
638049G1XX |
Needs Description Price: Call Us |
| 43 |
638035 |
SVC-DECAL,SIDE,IS CREW Price: $7.81 |
| 45 |
641492 |
Needs Description Price: Call Us |
| 46 |
00664G7 |
LOCK WASHER, 0.255" X 0.263" Price: $0.99 |
| 47 |
16705G1 |
TRUSS HEAD SCREW, 1/4-20X1 Price: $2.99 |
| 48 |
635958 |
SCREW,QUARTER TURN-ASSEMBLY Price: $24.04 |
| 49 |
641515 |
Needs Description Price: Call Us |
| 50 |
635654 |
CLIP-ON,RECEPTACLE,QUARTER TURN Price: $3.86 |
| 51 |
00559G4 |
FLAT WASHER, #8 Price: $1.99 |
| 52 |
10570G10 |
DOMED RIVET, SS, 5/32' X 9/16" Price: $1.99 |
| 53 |
655618G01 |
SVC-DECAL, SIDE, IS CREW-LH Not Available Price: |
| 54 |
655618G02 |
SVC-DECAL, SIDE, IS CREW-RH Not Available Price: |
