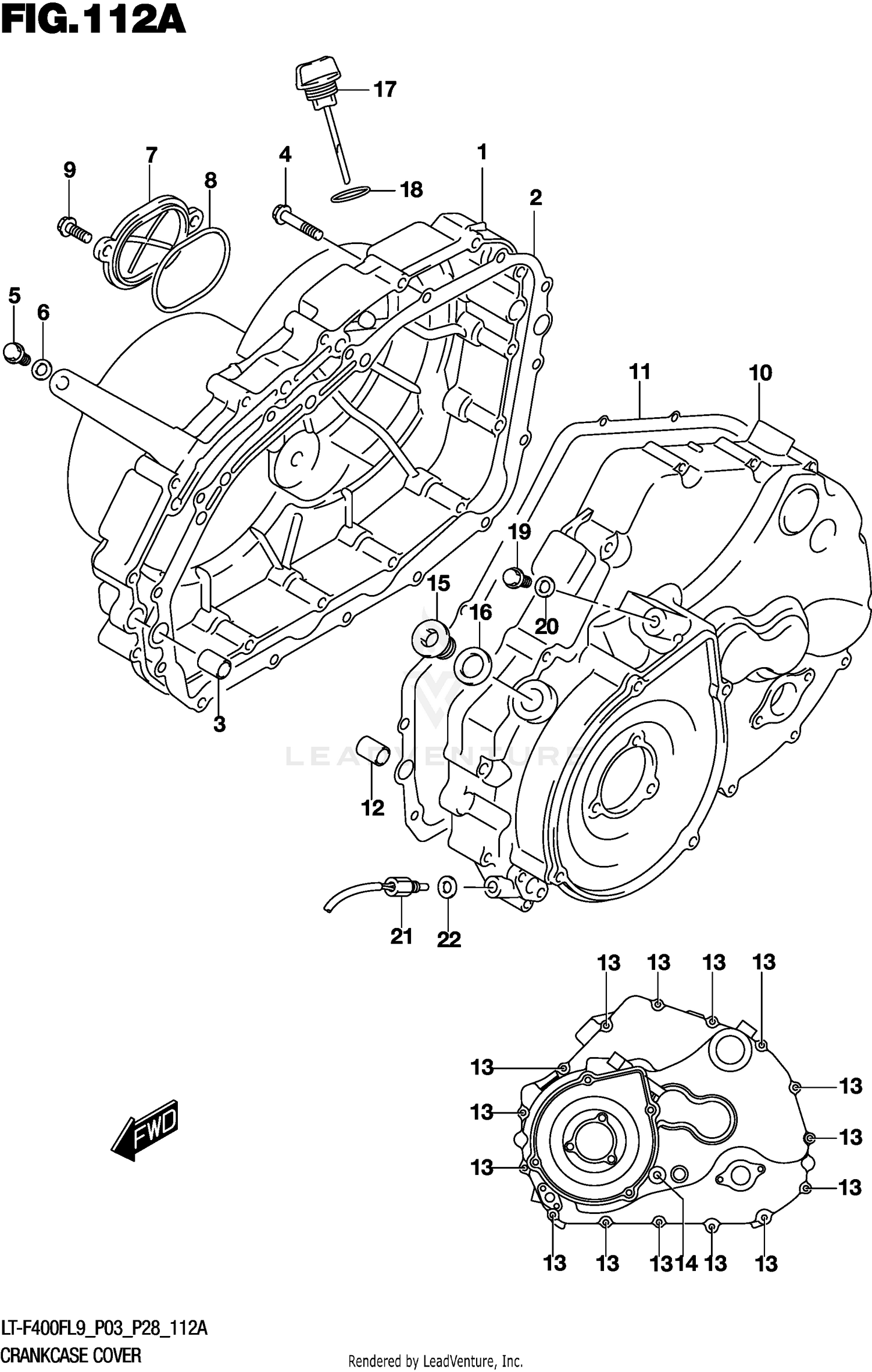

CRANKCASE COVER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-27H10 | COVER,CLUTCH Price: $324.08 |
| 3 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 4 | 01547-0640A | BOLT Price: $2.79 |
| 5 | 01550-0612A | BOLT Price: $2.37 |
| 6 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 7 | 11175-09F00 | CAP,INSPECTION Price: $16.04 |
| 9 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 10 | 11351-27H30 | COVER,MAGNETO Price: $407.09 |
| 12 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 13 | 01547-0640A | BOLT Price: $2.79 |
| 14 | 09103-08040 | BOLT,8X140 (8X140) Price: $5.80 |
| 15 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 16 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 17 | 11971-38F00 | GAUGE,OIL LEVEL Price: $12.08 |
| 18 | 09280-17003 | O-RING (D:3.1,ID:16.8) Price: $1.99 |
| 19 | 01550-0612A | BOLT Price: $2.37 |
| 20 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 21 | 13640-32G01 | SENSOR,ENGINE TEMP This part replaces 13640-32G00. Price: $62.57 |
