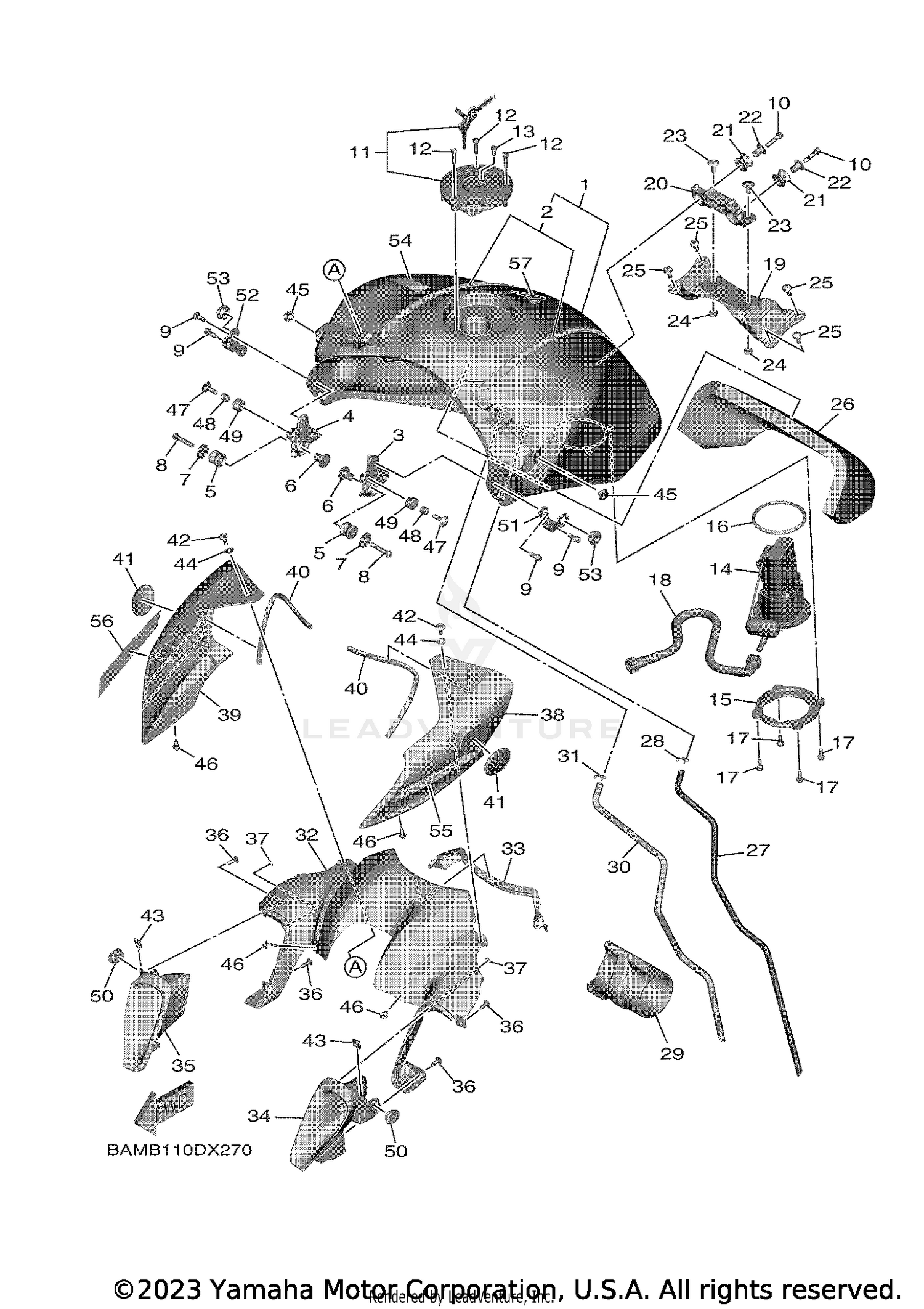

| Ref | Part Number | Description |
|---|
| 2 |
BAM-24240-00-00 |
GRAPHIC SET Price: $54.99 |
| 3 |
B7N-24191-00-00 |
BRACKET, FUEL TANK Price: $26.99 |
| 4 |
B7N-24192-00-00 |
BRACKET, FUEL TANK Price: $29.99 |
| 5 |
90480-18008-00 |
GROMMET Price: $4.00 |
| 6 |
90387-06266-00 |
COLLAR Price: $4.95 |
| 7 |
90201-06072-00 |
WASHER, PLATE Price: $10.49 |
| 8 |
92012-06035-00 |
BOLT, BUTTON HEAD Price: $2.50 |
| 9 |
95E37-06014-00 |
BOLT, FLANGE DEEP Price: $0.40 |
| 10 |
95E32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $0.50 |
| 11 |
39P-24602-00-00 |
CAP ASSY Price: $278.99 |
| 12 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 13 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 14 |
1RC-13907-10-00 |
FUEL PUMP COMP This part replaces 1RC-13907-01-00. Price: $489.99 |
| 15 |
1RC-24491-00-00 |
BRACKET, FUEL PUMP Price: $30.99 |
| 16 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 17 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 18 |
B7N-13971-00-00 |
PIPE, FUEL 1 Price: $63.99 |
| 19 |
B7N-2413Y-00-00 |
BRACKET, TANK FITT Price: $49.99 |
| 20 |
B7N-2419F-00-00 |
BRACKET, CANISTOR Price: $21.99 |
| 21 |
3D7-24339-00-00 |
GROMMET Price: $5.49 |
| 22 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 23 |
90111-06136-00 |
BOLT,0HEX. SOCKET BUTTON Price: $6.49 |
| 24 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 25 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 26 |
B7N-2414H-00-00 |
DAMPER, PLATE 1 Price: $10.49 |
| 27 |
B7N-24315-10-00 |
PIPE 5 Price: $23.99 |
| 28 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 29 |
B7N-24183-10-00 |
DAMPER, LOCATING 3 Price: $35.99 |
| 30 |
B7N-24313-20-00 |
PIPE 3 Price: $17.49 |
| 31 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 32 |
B7N-241B1-01-00 |
COVER, TANK Price: $126.99 |
| 33 |
B7N-2418B-00-00 |
MOLE, FUEL TANK 1 Price: $48.99 |
| 34 |
B7N-2837N-00-00 |
GRILL, AIR INTAKE Price: $11.49 |
| 35 |
B7N-2837R-00-00 |
GRILL, AIR INTAKE Price: $9.49 |
| 36 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 37 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 40 |
90520-07002-00 |
DAMPER PLATE Price: $1.50 |
| 41 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 42 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 43 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 44 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 45 |
90269-09006-00 |
RIVET Price: $2.55 |
| 46 |
90269-06001-00 |
RIVET Price: $6.49 |
| 47 |
90111-06137-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 48 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 49 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 50 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 51 |
B7N-2411F-00-00 |
PLATE, FITTING Price: $5.99 |
| 52 |
B7N-2411L-00-00 |
HOOK TANK FITTING Price: $6.49 |
| 53 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 54 |
29P-2816R-01-00 |
LABEL, WARNING GENER Price: $3.65 |
| 55 |
BAM-2173E-10-00 |
GRAPHIC 1 Price: $9.49 |
| 56 |
BAM-2173F-10-00 |
GRAPHIC 2 Price: $10.49 |
