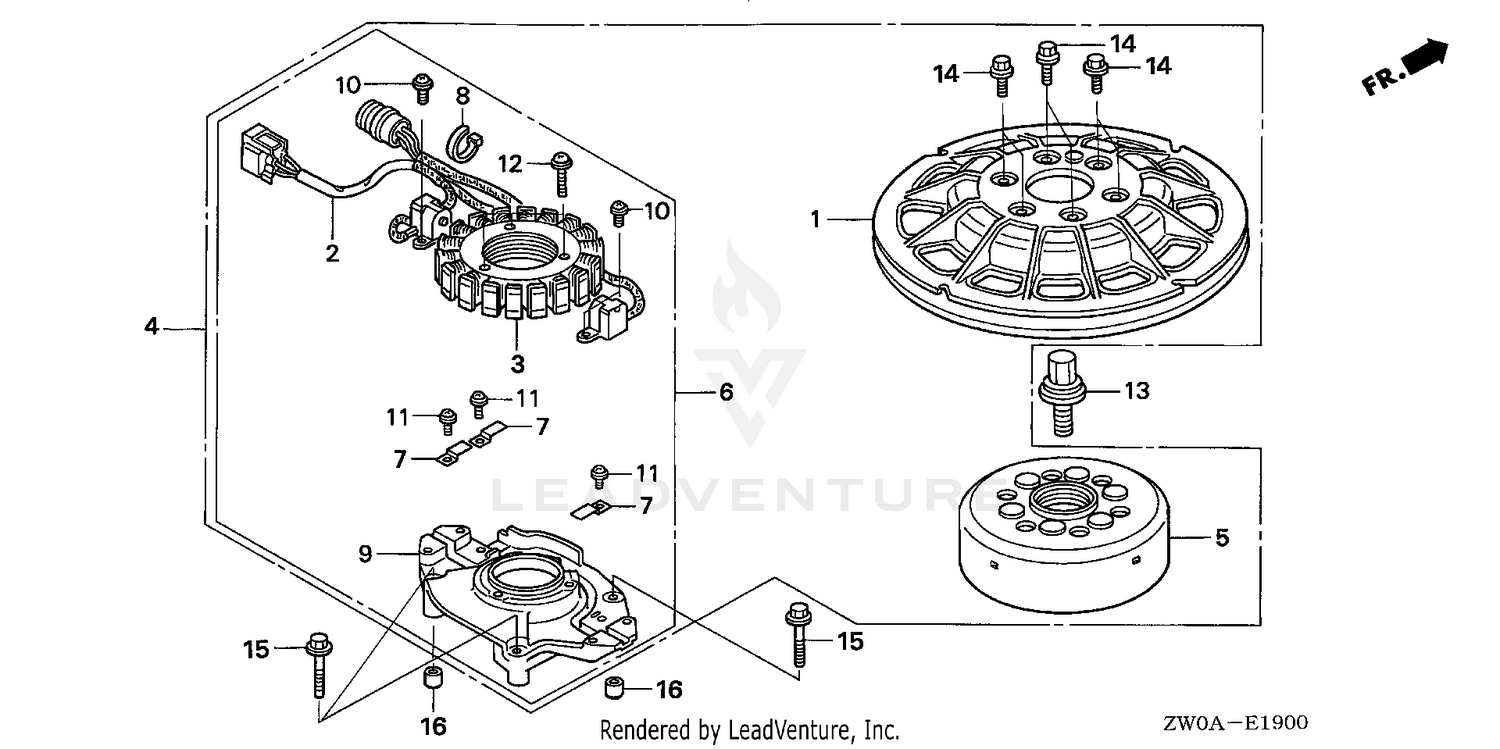

ALTERNATOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28451-ZW1-000 | PULLEY, STARTER Price: $143.22 |
| 2 | 30310-ZW1-003 | COIL ASSY., PULSER Price: $216.98 |
| 3 | 31120-ZW1-003 | STATOR Price: $251.16 |
| 4 | 31630-ZW1-L01 | ALTERNATOR ASSY. Price: $675.79 |
| 5 | 31631-ZW1-L01 | ROTOR Price: $273.72 |
| 6 | 31632-ZW1-003 | STATOR ASSY. Price: $300.23 |
| 7 | 31633-ZW1-003 | CLAMP, WIRE Price: $6.88 |
| 8 | 31634-ZW1-003 | CLAMP, CABLE Price: $4.42 |
| 9 | 31635-ZW1-003 | BASE, COIL SETTING Price: $142.14 |
| 10 | 90004-ZW1-003 | SCREW-WASHER (5X12) Price: $4.74 |
| 11 | 90005-ZW1-003 | SCREW-WASHER (4X8) Price: $3.50 |
| 12 | 90007-ZW1-003 | SCREW-WASHER (6X30) Price: $5.64 |
| 13 | 90017-ZW1-L01 | BOLT-WASHER (14X36) Price: $6.80 |
| 14 | 90028-ZY3-000 | BOLT, FLANGE (6X18) Price: $1.42 |
| 15 | 90125-ZV1-010 | BOLT, FLANGE (6X42) Price: $2.56 |
