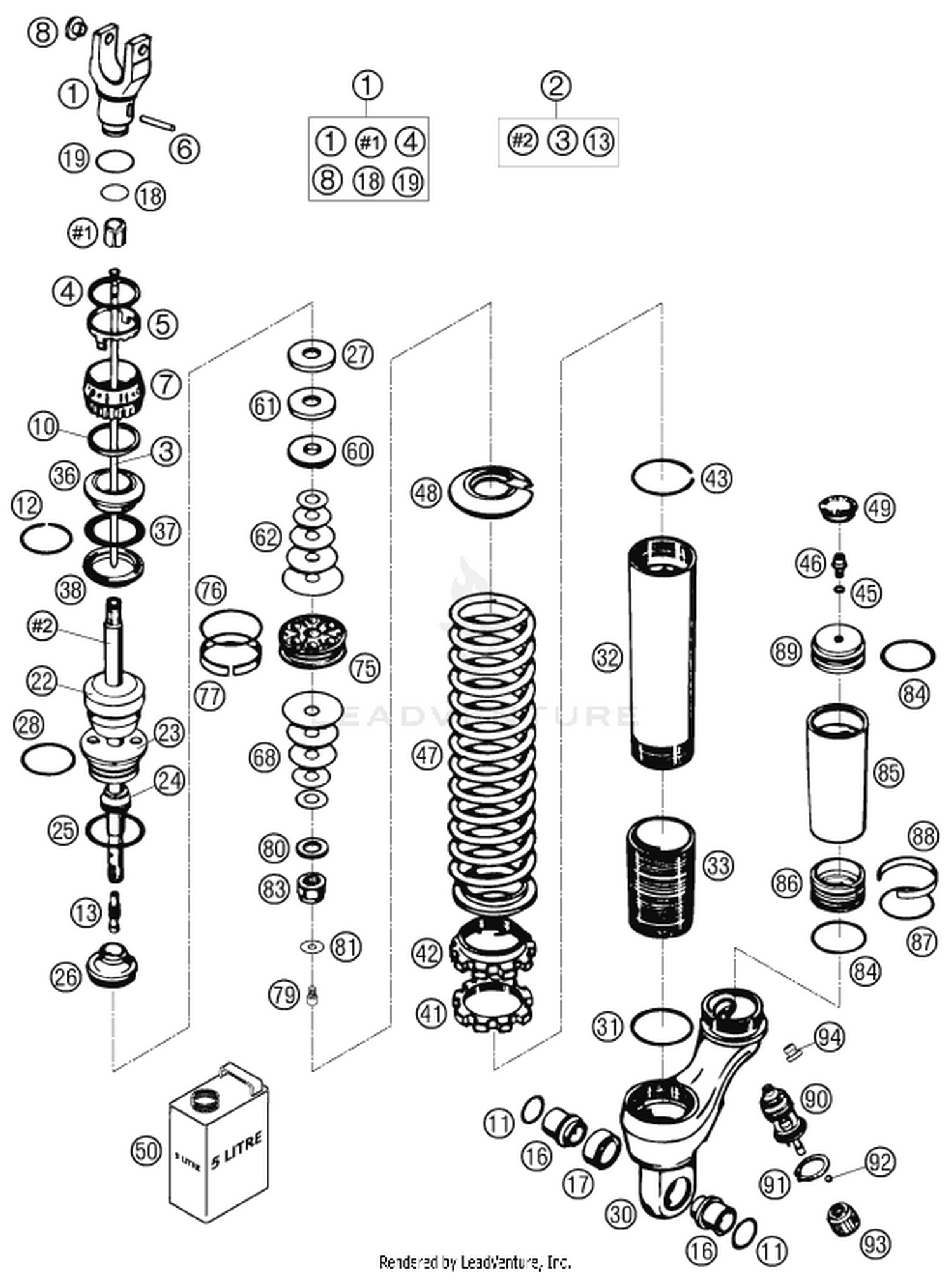

| Ref | Part Number | Description |
|---|
| 1 |
46811558S |
SHOCK ABS. BOTTOM-FORK L75B Not Available Price: |
| 2 |
46811560S2 |
PISTON ROD D=14 BA M14X1 Price: Call Us |
| 3 |
46811545S |
NEEDLE CPL. D=4 BA, L=183 Price: Call Us |
| 4 |
46811222 |
O-RING 36X0,5 Price: Call Us |
| 5 |
46811263 |
WASHER Price: Call Us |
| 6 |
46811261 |
PIN 4X35 Price: Call Us |
| 7 |
46811262 |
ADJ. KNOB D=41 Price: Call Us |
| 8 |
46811205 |
Bush M10x12/15/13x9,5 Price: Call Us |
| 10 |
46811221 |
Shaft seal 29x35x3 Price: Call Us |
| 11 |
46811050 |
SEAL KGW Price: Call Us |
| 12 |
46811268 |
CIRCLIP 22X1,2 Price: Call Us |
| 13 |
46811259 |
NEEDLE SEAT 5X17,25 Price: Call Us |
| 16 |
46811078S |
ADAPTOR BUSH CPL. KGW 10X24 This part replaces 46811078. Price: Call Us |
| 17 |
50180005 |
Ball joint bearing 15x25x13 This part replaces 46811027. Price: Call Us |
| 18 |
46811499 |
O-ring 21x2 NBR70 Price: Call Us |
| 19 |
46811500 |
O-RING NBR 32X1,5 Price: Call Us |
| 22 |
46810365 |
Rubber pad 13,9x39x43 white Price: Call Us |
| 23 |
46811045 |
SCREW CAP M47,4, H=22,5 Not Available Price: |
| 24 |
46811044 |
DUST SEAL 1424 Price: Call Us |
| 25 |
46810325 |
O-ring 35x5 NBR70 Price: Call Us |
| 26 |
46811540S1 |
ADAPTER CPL. D=46, H=23 BA Price: Call Us |
| 27 |
46811002 |
SPACER 35X14X2 Not Available Price: |
| 28 |
46811042 |
O-ring 40x2 NBR70 black Price: Call Us |
| 30 |
46811481 |
SHOCK ABSORB. TOP H-35/79 84 Price: Call Us |
| 31 |
46810016 |
O-ring 48x2 NBR70 siliconized Price: Call Us |
| 32 |
46810093 |
TUBE L=180 Not Available Price: |
| 33 |
46810346 |
THREADED BUSH L=60 BLACK Not Available Price: |
| 36 |
46811561 |
BUSHING RING D=55X19 Not Available Price: |
| 37 |
46811512 |
O-RING NBR 32X8 Price: Call Us |
| 38 |
46811511 |
SUPPORT RING D=55X7,5 Price: Call Us |
| 41 |
46810109 |
COUNTERNUT Price: Call Us |
| 42 |
46810108 |
ADJUSTING NUT Price: Call Us |
| 43 |
46810010 |
Round-wire snap ring 49x1,5 Price: Call Us |
| 45 |
S208600003000FB |
O-ring 5,28x1,78 HNBR70 red This part replaces 46810893. Price: Call Us |
| 46 |
36120151ST |
PLUG SCREW M5X6 CPL. This part replaces 36120151. Price: Call Us |
| 47 |
91010110 |
SPRING 70-260 (59), D=12 Price: Call Us |
| 47 |
91010111 |
SPRING 75-260 (59) Price: Call Us |
| 47 |
91010253 |
SPRING 66-260 59 Price: Call Us |
| 48 |
46810063 |
SPRING RETAINER D=58,H=13,L=15 Price: Call Us |
| 49 |
46811208 |
Rubber cap do not open 22x5,5 Price: Call Us |
| 60 |
46811216 |
REBOUND BUSH PLANE H=6,5 Price: Call Us |
| 61 |
46811005 |
Bush 14x35x10 Price: Call Us |
| 62 |
46810491 |
SHIM 12X26X0,20 Price: Call Us |
| 62 |
46810492 |
SHIM 12X28X0,20 Price: Call Us |
| 62 |
46810493 |
SHIM 12X30X0,20 Price: Call Us |
| 62 |
46810498 |
SHIM 12X40X0,20 Price: Call Us |
| 62 |
46810507 |
SHIM 12X40X0,25 Price: Call Us |
| 62 |
46810521 |
SHIM 12X32X0,15 Price: Call Us |
| 62 |
46810522 |
SHIM 12X34X0,15 Price: Call Us |
| 62 |
46810523 |
SHIM 12X36X0,15 Price: Call Us |
| 62 |
46810524 |
SHIM 12X38X0,15 Price: Call Us |
| 62 |
46810606 |
SHIM 12X22X0,10 Price: Call Us |
| 62 |
46810610 |
Shim 12x17x0,15 Price: Call Us |
| 68 |
46810491 |
SHIM 12X26X0,20 Price: Call Us |
| 68 |
46810492 |
SHIM 12X28X0,20 Price: Call Us |
| 68 |
46810493 |
SHIM 12X30X0,20 Price: Call Us |
| 68 |
46810520 |
SHIM 12X30X0,15 Price: Call Us |
| 68 |
46810521 |
SHIM 12X32X0,15 Price: Call Us |
| 68 |
46810607 |
SHIM 12X23X0,10 Price: Call Us |
| 68 |
46810641 |
Shim 12X21X0,30 Price: Call Us |
| 75 |
46811218 |
PISTON 6+6XD=7 BA Price: Call Us |
| 76 |
46810035 |
O-ring 37x,82x1,78 Viton70 gre Price: Call Us |
| 77 |
46811206 |
Piston ring 43,95x45,95x8 Price: Call Us |
| 79 |
46180056 |
HH screw ventilation M6 l5,5 Price: Call Us |
| 80 |
46811258 |
Washer 12x24x2,5 Price: Call Us |
| 81 |
40540403 |
Shim 6x18x0,10 Price: Call Us |
| 83 |
46180060 |
Piston rod nut M12x1 Price: Call Us |
| 84 |
46810340 |
O-ring 45x2 NBR70 siliconized Price: Call Us |
| 85 |
46811453 |
RESERVOIR SCREW L=123 GREY Not Available Price: |
| 86 |
46810322 |
SEPARATION PISTON D=46 Not Available Price: |
| 87 |
46811043 |
O-ring 35x5 Viton70 Price: Call Us |
| 88 |
46810324 |
Pistonring 42,5x45,5x3,9 Price: Call Us |
| 89 |
46811209 |
RESERVOIR CAP D=46 Price: Call Us |
| 90 |
46811539S |
CC-COMPRE.DAMPING CONTROL CPL. Price: Call Us |
| 91 |
46810334 |
LOCK WASHER JV24 Not Available Price: |
| 92 |
46810333 |
Steel ball 4.75mm Price: Call Us |
| 93 |
46811272S |
ADJUSTING KNOB CC-MECH. CPL. Price: Call Us |
