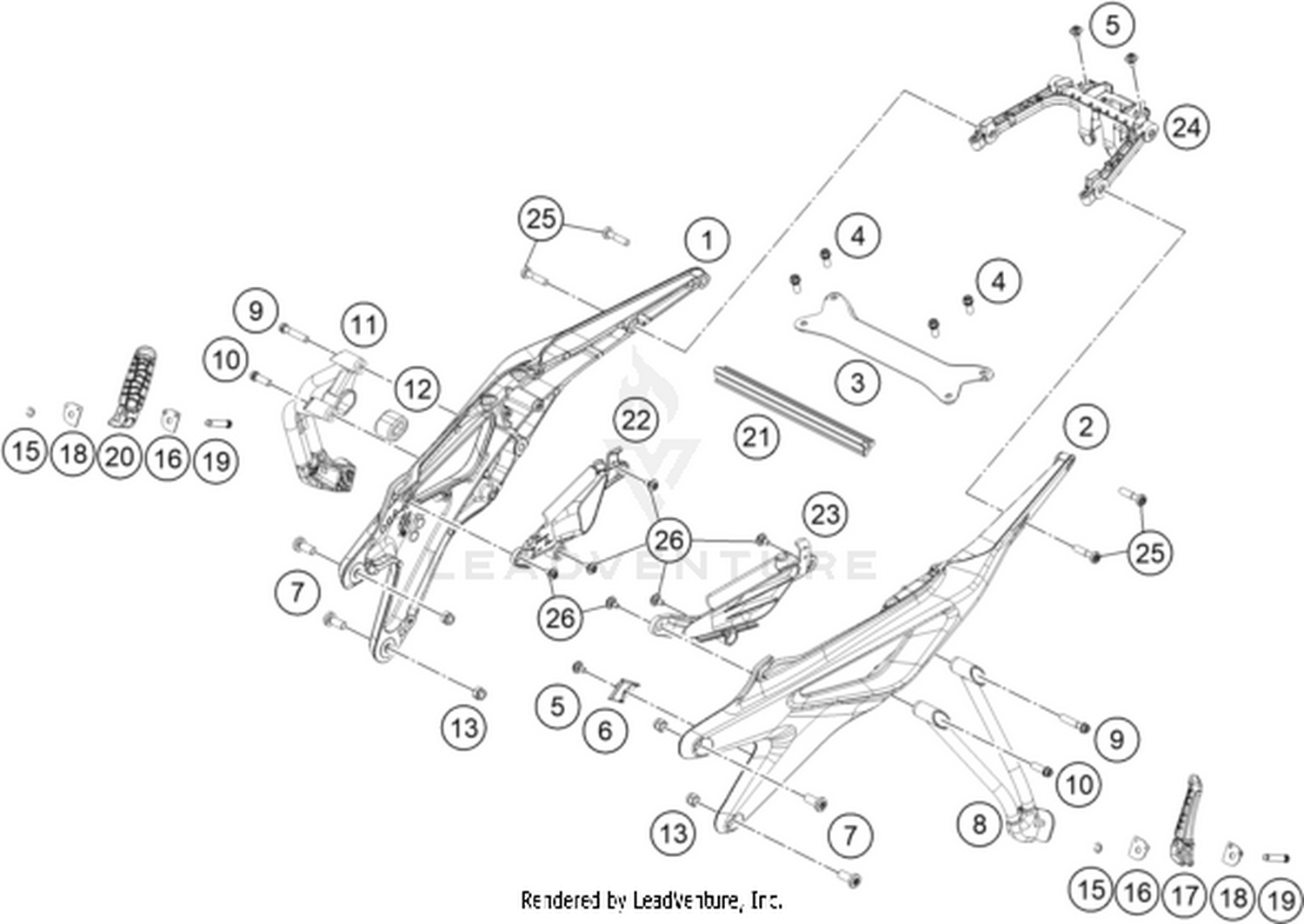

03 SUBFRAME
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | C90703002006C1 | Subframe right black Price: Call Us |
| 2 | C90703002005C1 | Subframe left black Price: Call Us |
| 3 | C90703002004C1 | Cross member Price: Call Us |
| 4 | C0000250801800S | HH collar screw M8x18 ISA40 SS Price: Call Us |
| 5 | C90708000012 | Special screw M6x12x3 Price: Call Us |
| 6 | C90703002010 | Cable bracket Price: Call Us |
| 7 | 0035100309S | AH collar screw M10x30 ISA45 This part replaces C0000351003000S. Price: Call Us |
| 8 | C90703048000C1 | Footrest carrier rear/left Price: Call Us |
| 9 | C0000250804500S | HH COLLAR SCREW M8X45 ISA40 Price: Call Us |
| 10 | 0025080256S | HH COLLAR SCREW M8X25 TX40 This part replaces C0000250802500S. Price: Call Us |
| 11 | C90703049000C1 | Footrest carrier rear/right Price: Call Us |
| 12 | C90705068000 | DAMPING RUBBER Price: Call Us |
| 13 | 54310086100 | SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 16 | 60003152000 | ENGAGE PANEL FOOTREST L/S 03 This part replaces C90703152000. Price: Call Us |
| 17 | C90703050000 | FOOTREST CPL. L/S REAR 03 Price: Call Us |
| 18 | 60003052000 | ENGAGE PANEL FOOTREST R/S 03 This part replaces C90703052000. Price: Call Us |
| 20 | C90703051000 | FOOTREST CPL. R/S REAR 03 Price: Call Us |
| 21 | C64103004100 | Brace subframe Price: Call Us |
| 22 | C90706041050 | Cover intake port right Price: Call Us |
| 23 | C90706040050 | Cover intake port left Price: Call Us |
| 25 | C0000350803500S | SCREW M8X35 ISA45 SS Price: Call Us |
