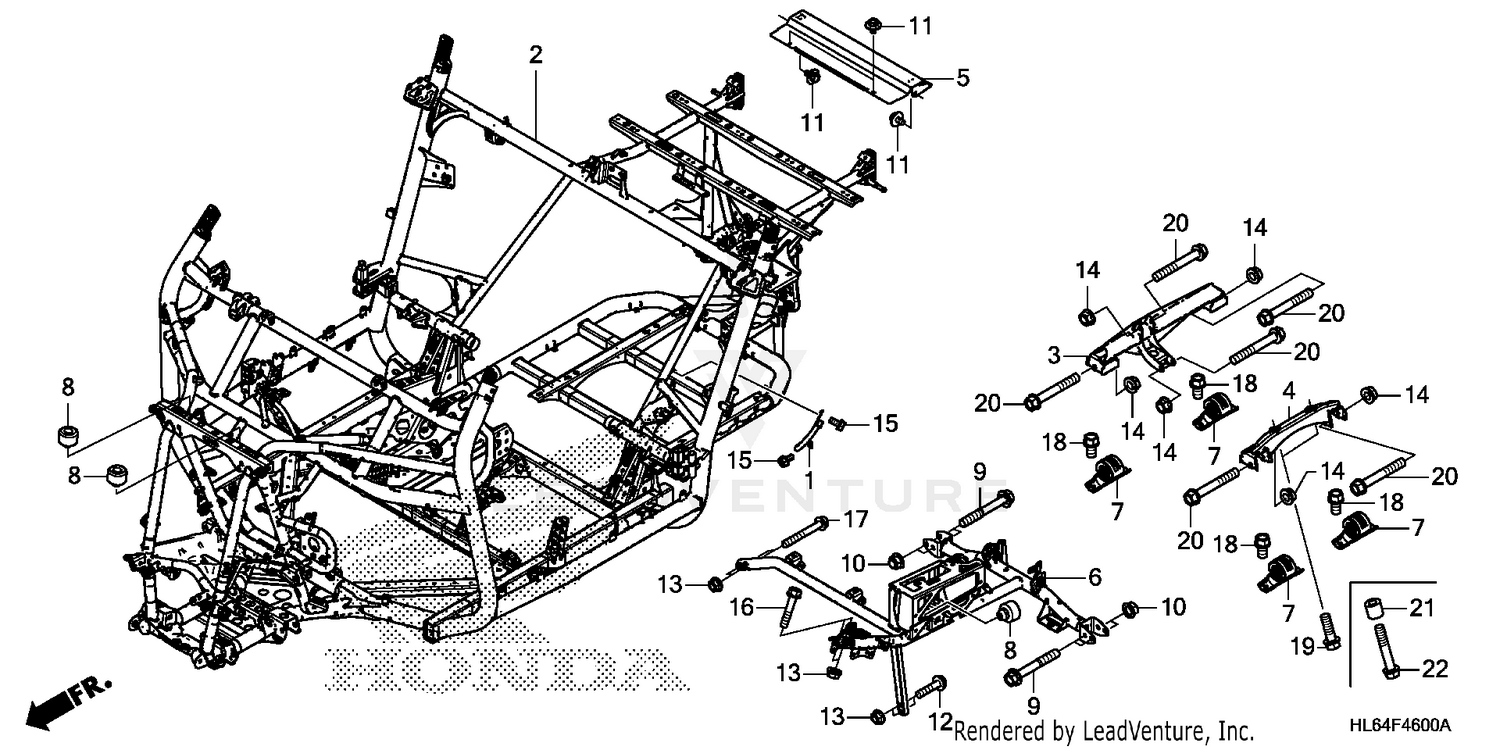

| Ref | Part Number | Description |
|---|
| 1 |
32603-HL6-A00 |
CABLE, FRAME GROUND Price: $5.85 |
| 2 |
50100-HL6-A41ZC |
FRAME COMP *NHC12* This part replaces 50100-HL6-A40ZC. Price: $5,893.04 |
| 3 |
50310-HL6-A40 |
BRACKET, R. ENGINE HANGER Price: $147.24 |
| 4 |
50320-HL6-A40 |
BRACKET, L. ENGINE HANGER Price: $65.36 |
| 5 |
50500-HL6-A00 |
COVER, RR. BED PLATE Price: $32.18 |
| 6 |
50600-HL6-A00ZA |
PIPE, R. SEAT FRAME *NHC12* (MAT SATIN BLACK) Price: $569.83 |
| 7 |
50810-HL6-A01 |
RUBBER ASSY., ENGINE MOUNTING Price: $26.38 |
| 8 |
77206-GF0-000 |
RUBBER, SEAT SETTING Price: $6.85 |
| 9 |
90165-S5A-000 |
BOLT, FLANGE (10X70) Price: $12.07 |
| 10 |
90305-HC0-770 |
NUT, SELF-LOCK (10MM) Price: $3.76 |
| 11 |
93405-06012-08 |
BOLT-WASHER (6X12) Price: $1.58 |
| 12 |
93406-08035-08 |
BOLT-WASHER (8X35) Price: $1.05 |
| 13 |
94050-08080 |
NUT, FLANGE (8MM) Price: $0.98 |
| 14 |
94050-10080 |
NUT, FLANGE (10MM) Price: $3.95 |
| 15 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 16 |
95701-08040-08 |
BOLT, FLANGE (8X40) Price: $2.32 |
| 17 |
95701-08060-08 |
BOLT, FLANGE (8X60) Price: $2.57 |
| 18 |
95701-10018-08 |
BOLT, FLANGE (10X18) Price: $2.28 |
| 20 |
95801-10070-08 |
BOLT, FLANGE (10X70) Price: $3.33 |
| 21 |
50335-HL7-A20 |
COLLAR (20X23) Price: $7.33 |
