| Ref | Part Number | Description |
|---|
| 1 |
BN6-21228-00-00 |
BRACKET, RESERVE TANK Price: $31.99 |
| 2 |
3C3-2837J-00-00 |
DAMPER 5 Price: $3.60 |
| 3 |
2C0-27211-00-00 |
PEDAL, BRAKE Price: $136.99 |
| 4 |
90506-20193-00 |
SPRING, TENSION Price: $16.49 |
| 5 |
90446-15386-00 |
HOSE Price: $8.49 |
| 6 |
91701-06018-00 |
PIN This part replaces 91702-06018-00. Price: $5.49 |
| 7 |
92907-06200-00 |
WASHER Price: $9.49 |
| 8 |
91490-16020-00 |
PIN, COTTER This part replaces 91402-16012-00. Price: $6.70 |
| 9 |
BN6-2583V-00-00 |

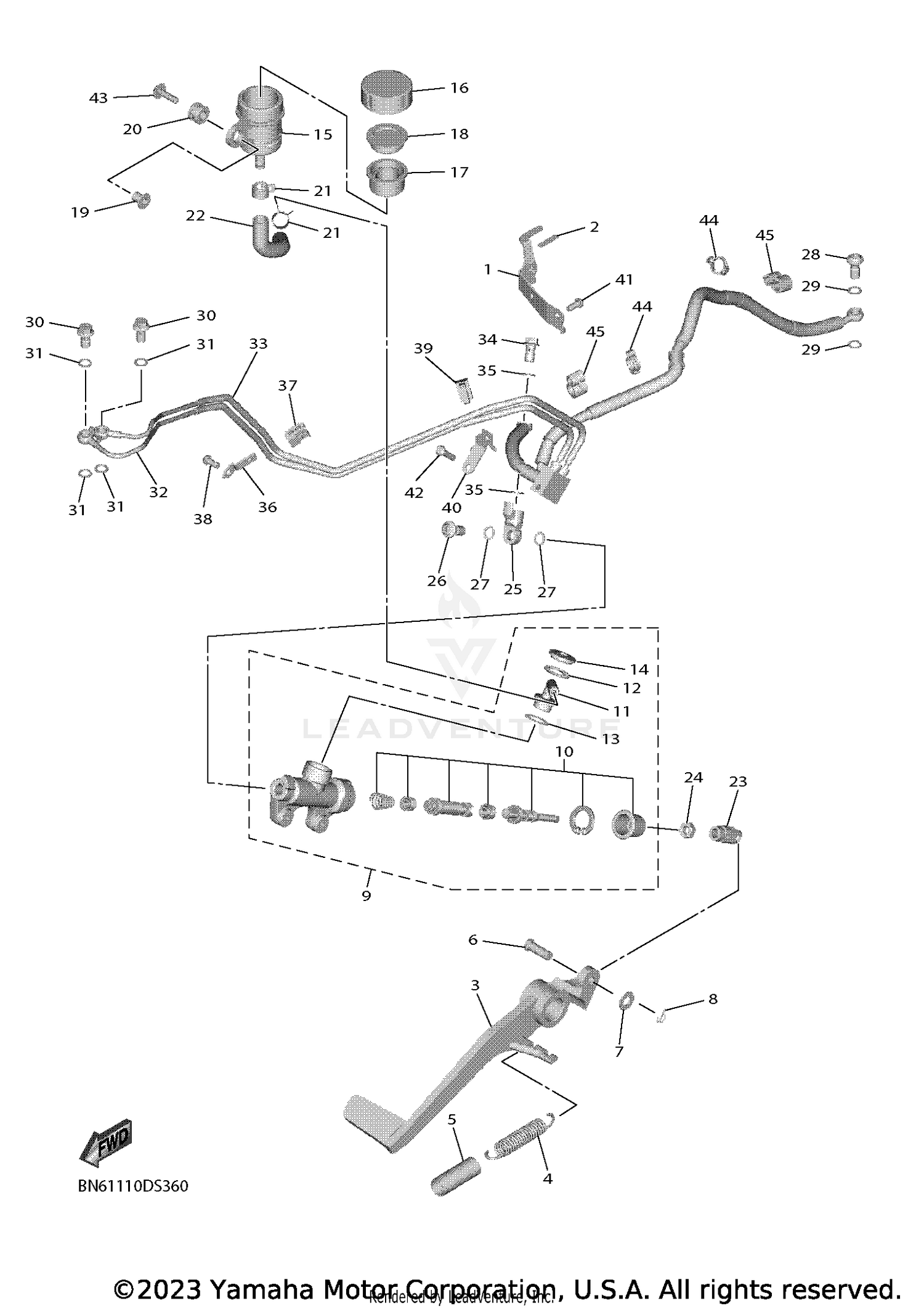

REAR MASTER CYLINDER ASSY. Price: $182.99 |
| 10 |
BN6-25808-00-00 |
CYLINDER KIT, MASTER Price: $105.99 |
| 11 |
4ML-2582A-50-00 |
JOINT Price: $15.49 |
| 12 |
2VN-25866-00-00 |
CIRCLIP Price: $7.49 |
| 13 |
93210-15566-00 |
O-RING This part replaces 93210-15620-00. Price: $8.49 |
| 14 |
3FV-2589A-00-00 |
COVER, DUST Price: $22.99 |
| 15 |
2C0-25894-00-00 |
TANK, RESERVOIR Price: $32.99 |
| 16 |
2C0-25852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 17 |
2VN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $26.99 |
| 18 |
2VN-25855-00-00 |
BUSH, DIAPHRAGM Price: $11.99 |
| 19 |
90387-05028-00 |
COLLAR Price: $6.49 |
| 20 |
2C0-26326-00-00 |
GROMMET Price: $7.49 |
| 21 |
90467-12085-00 |
CLIP Price: $11.49 |
| 22 |
BN6-25895-50-00 |
HOSE, RESERVOIR Price: $16.49 |
| 23 |
4XV-27222-01-00 |
JOINT Price: $47.99 |
| 24 |
95317-08700-00 |
NUT This part replaces 95307-08700-00. Price: $10.49 |
| 25 |
BN6-25885-00-00 |
JOINT Price: $65.99 |
| 26 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 27 |
90430-10005-00 |
GASKET Price: $9.49 |
| 28 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 29 |
90430-10005-00 |
GASKET Price: $9.49 |
| 30 |
90401-10052-00 |
BOLT, UNION Price: $13.49 |
| 31 |
90430-10005-00 |
GASKET Price: $9.49 |
| 32 |
BN6-2584C-01-00 |
HOSE, BRAKE Price: $142.99 |
| 33 |
BN6-2584D-01-00 |
HOSE, BRAKE Price: $160.99 |
| 34 |
90401-10049-00 |
BOLT, UNION Price: $4.65 |
| 35 |
90430-10005-00 |
GASKET Price: $9.49 |
| 36 |
BN6-2787A-00-00 |
BRACKET 1 Price: $3.65 |
| 37 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 38 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 39 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 40 |
BN6-2787F-00-00 |
BRACKET 3 Price: $6.49 |
| 41 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 42 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 43 |
90111-05026-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 44 |
90464-14003-00 |
CLAMP Price: $39.99 |
