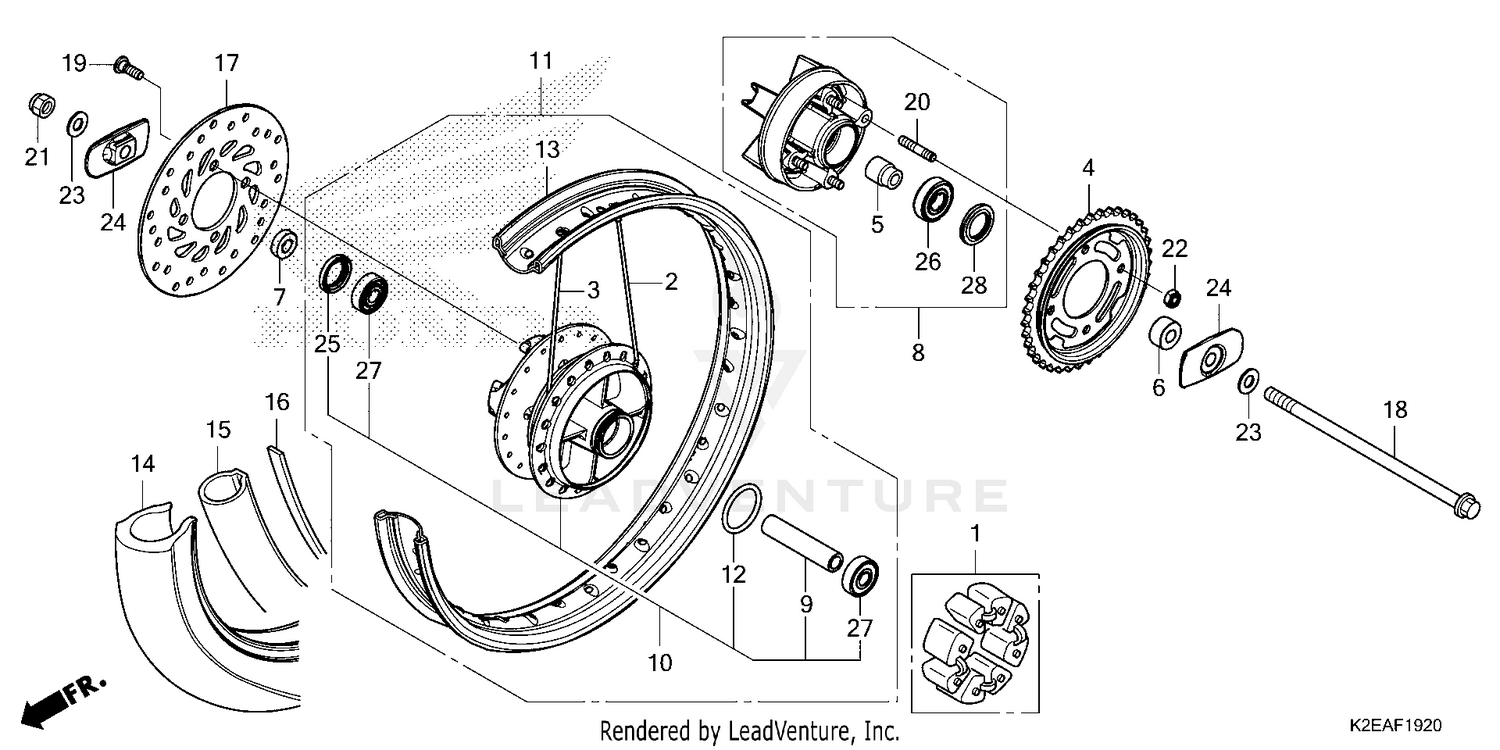

| Ref | Part Number | Description |
|---|
| 1 |
06410-GCR-000 |
DAMPER SET, WHEEL Price: $32.22 |
| 2 |
06420-K2E-T00 |
SPOKE SET (B9X161.5) (OUTSIDE) Price: $3.89 |
| 3 |
06421-K2E-T00 |
SPOKE SET (B9X161.5) (INSIDE) Price: $3.89 |
| 4 |
41200-K2E-T11 |
SPROCKET (38T) Price: $38.04 |
| 5 |
42303-KBA-900 |
SLEEVE, RR. WHEEL (NOT AVAILABLE) Price: $17.35 |
| 6 |
42304-K2E-T00 |
COLLAR, RR. WHEEL SIDE Price: $9.38 |
| 7 |
42313-KTM-750 |
COLLAR, R. RR. WHEEL SIDE Price: $5.00 |
| 8 |
42615-K2E-T00ZA |
FLANGE SUB-ASSY., FINAL DRIVEN *NH303M* (MAT AXIS GRAY METALLIC) Price: $132.27 |
| 9 |
42620-KW7-880 |
COLLAR, RR. AXLE DISTANCE Price: $16.04 |
| 10 |
42635-K2E-T00ZA |
HUB SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) Price: $143.05 |
| 11 |
42650-K2E-T01ZA |
WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC) Price: $316.18 |
| 12 |
42653-001-004 |
O-RING (40.5X3) (NIPPON DUST KEEPER) Price: $2.73 |
| 13 |
42701-K2E-T01 |
RIM, RR. WHEEL (17X1.60) Price: $90.98 |
| 14 |
42711-K2E-T01 |
TIRE, RR. (80/90-17 M/C 50P) (IRC) Price: $44.03 |
| 15 |
42712-K2E-T02 |
TUBE, TIRE Price: $27.69 |
| 16 |
42713-102-005 |
FLAP, TIRE (17) (INOUE) FLAP, TIRE (17) (NITTO) Price: $8.20 |
| 17 |
43351-KTM-N31 |
DISK, RR. BRAKE (YUTAKA) (NOT AVAILABLE) Price: $84.25 |
| 17 |
43351-KTM-N32 |
DISK, RR. BRAKE (SUNSTAR) Price: $110.14 |
| 18 |
44301-K01-900 |
AXLE, FR. WHEEL (FOR RR.) Price: $13.04 |
| 19 |
90105-KGH-900 |
BOLT, BRAKE DISK (8X24) Price: $2.18 |
| 20 |
90128-KFM-900 |
BOLT, STUD (8X19.5) (NOT AVAILABLE) Price: $1.11 |
| 21 |
90306-K0G-901 |
NUT, U (12MM) Price: $3.89 |
| 22 |
90309-KPH-971 |
NUT, U (8MM) (FUJI SEIMITSU) Price: $1.87 |
| 23 |
90501-K0G-900 |
WASHER, RR. AXLE Price: $1.78 |
| 24 |
90559-K0G-900 |
PLATE, SWINGARM SIDE Price: $13.80 |
| 25 |
90753-051-003 |
OIL SEAL (26X37X6) (ARAI) Price: $9.62 |
| 26 |
91051-K35-V03 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) Price: $23.29 |
| 27 |
91053-K03-H02 |
BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01. Price: $8.78 |
| 27 |
91055-KVS-F02 |
BEARING, RADIAL BALL (6301U L) (NSK) This part replaces 91055-KVS-F01. Price: $10.18 |
