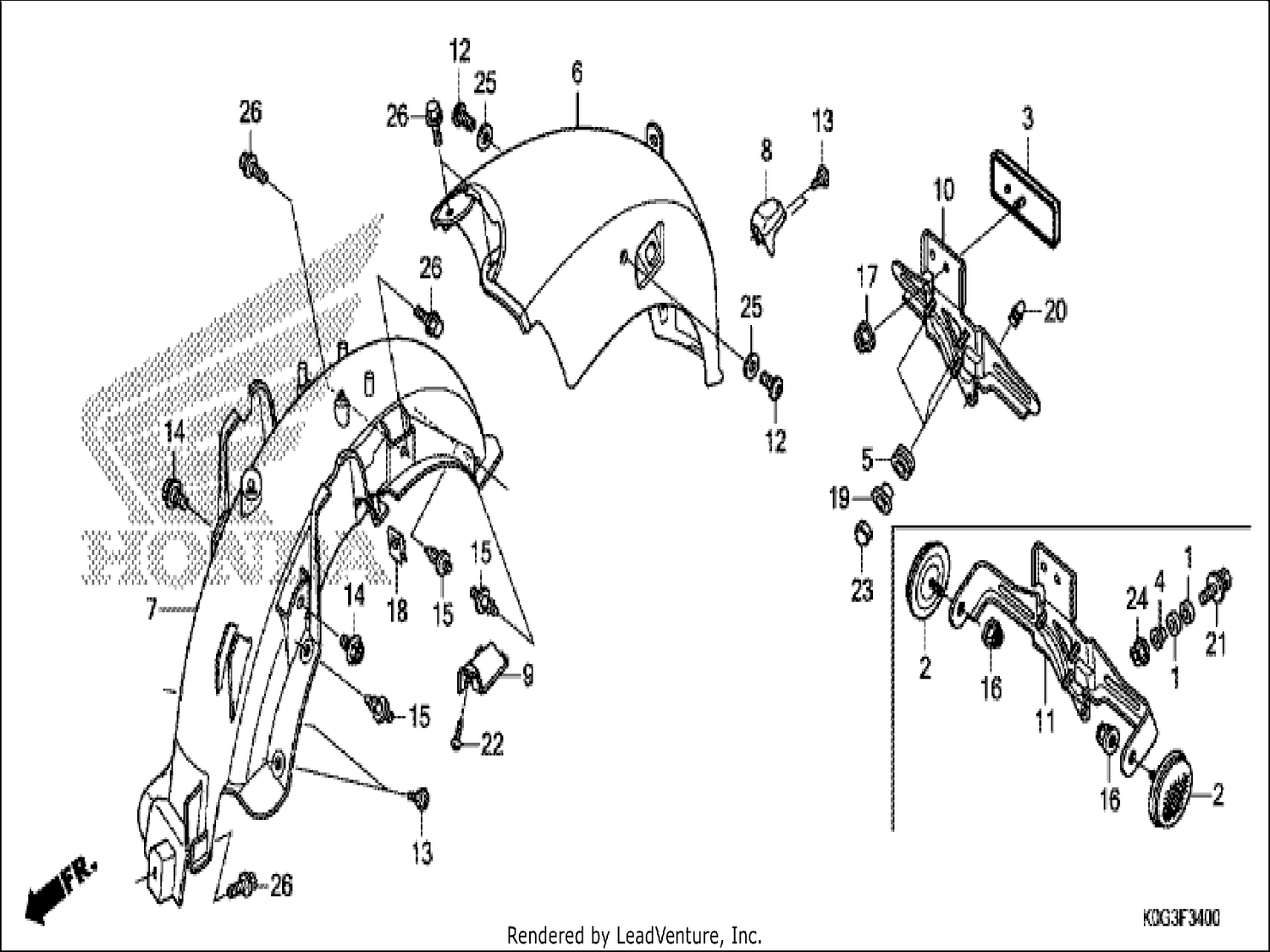

REAR FENDER

 REAR FENDER

Parts (25)

RefPart NumberDescription
1 33714KL3620 RUBBER, TAILLIGHT BRACKET Price: Call Us
2 33741KAK971 REFLECTOR, FR. REFLEX Price: Call Us
3 33741KPL902 REFLECTOR, REFLEX Price: Call Us
4 38117KYZT00 COLLAR, HORN SETTING Price: Call Us
5 64312KWW640 GROMMET, MAIN PIPE COVER Price: Call Us
6 80100K0G900ZA FENDER COMP., RR. *R376P* (R376P PEARL NEBULA RED) Price: Call Us
6 80100K0G900ZB FENDER COMP., RR. *PB415P* (PB415P PEARL NILTAVA BLUE) Price: Call Us
7 80102K0G900 FENDER, INNER Price: Call Us
8 80103K0G900 COVER, LICENSE LIGHT Price: Call Us
9 80104K0G900 LID, FENDER INNER Price: Call Us
11 84701K0G930 BRACKET, NUMBER PLATE Price: Call Us
12 90108K0G901 BOLT, SOCKET SPECIAL, 8X18 Price: Call Us
13 90115KW7900 SCREW, VISOR SPECIAL SETTING Price: Call Us
14 90116KVB900 BOLT, FLANGE, 6MM Price: Call Us
15 90116SP0003 CLIP, BUMPER SEAL Price: Call Us
16 90301KGH901 NUT, U, 6MM Price: Call Us
17 90301KWN901 NUT, U, 5MM Price: Call Us
18 90302KWWA00 NUT, SPRING, 4MM Price: Call Us
19 90501K0FT00 COLLAR, TAILLIGHT Price: Call Us
20 90899422610 PLUG, CONE TYPE Price: Call Us
21 934040602000 BOLT-WASHER, 6X20 Price: Call Us
22 9390324380 SCREW, TAPPING, 4X12 Price: Call Us
23 94021060000S NUT, CAP, 6MM Price: Call Us
24 9405006000 NUT, FLANGE, 6MM Price: Call Us
25 9410208000 WASHER, PLAIN, 8MM Price: Call Us
