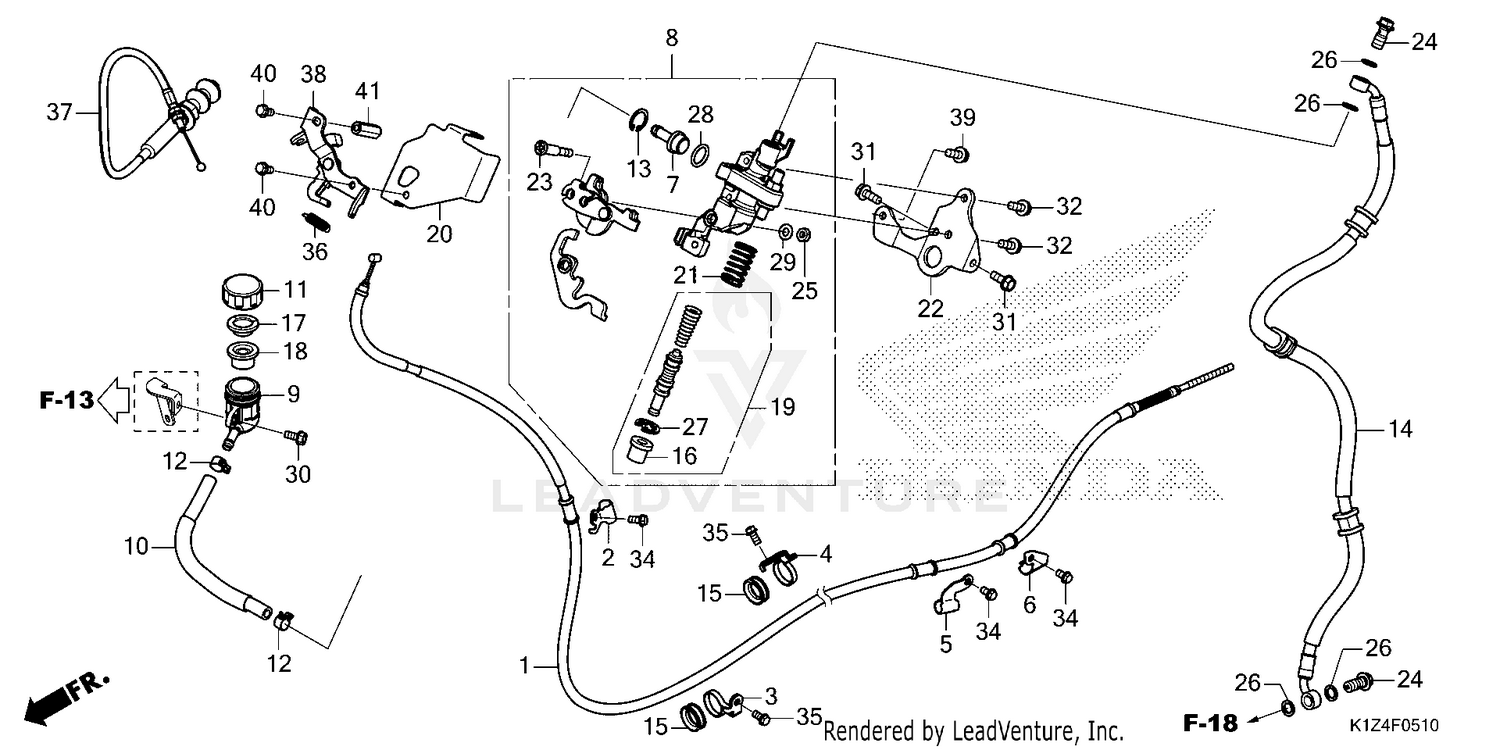

| Ref | Part Number | Description |
|---|
| 1 |
43450-K1Y-K01 |
CABLE, RR. BRAKE SECOND Price: $11.01 |
| 2 |
43455-K1Y-D10 |
CLAMP A, RR. BRAKE CABLE Price: $0.65 |
| 3 |
43456-K1Y-D10 |
GUIDE A, BRAKE CABLE Price: $0.95 |
| 4 |
43457-K1Y-D10 |
GUIDE B, BRAKE CABLE Price: $1.64 |
| 5 |
43458-K1Y-D10 |
CLAMP B, RR. BRAKE CABLE Price: $0.87 |
| 6 |
43459-K1Y-D10 |
CLAMP C, RR. BRAKE CABLE Price: $0.87 |
| 7 |
43503-KZ3-B01 |
CONNECTOR Price: $11.47 |
| 8 |
43510-K1Z-A01 |
MASTER CYLINDER SUB-ASSY. Price: $83.71 |
| 9 |
43511-K1N-V01 |
CUP, MASTER CYLINDER OIL Price: $4.75 |
| 10 |
43512-MW0-006 |
HOSE, MASTER CYLINDER Price: $18.07 |
| 11 |
43513-KWN-671 |
CAP, MASTER CYLINDER Price: $9.42 |
| 12 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 13 |
43517-KS6-701 |
CIRCLIP, RR. MASTER CYLINDER (FOR FR.) Price: $4.80 |
| 14 |
45127-K1Y-K41 |
HOSE COMP, CBS Price: $22.12 |
| 15 |
45466-329-000 |
GUIDE, CABLE (INNER) Price: $3.71 |
| 16 |
45504-410-003 |
BOOT Price: $14.75 |
| 17 |
45518-GM9-711 |
PLATE, DIAPHRAGM Price: $5.62 |
| 18 |
45520-GM9-711 |
DIAPHRAGM Price: $11.09 |
| 19 |
45530-KVS-M21 |
MASTER CYLINDER SET, FR. (NISSIN) Price: $22.88 |
| 20 |
47602-KWN-671 |
COVER, MASTER CYLINDER Price: $14.76 |
| 21 |
47604-KWN-931 |
SPRING, DELAY Price: $0.98 |
| 22 |
50320-K97-A01 |
STAY, MASTER CYLINDER Price: $11.38 |
| 23 |
90114-GEV-712 |
BOLT, PIVOT Price: $1.75 |
| 24 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 25 |
90301-GEV-711 |
NUT, U (6MM) Price: $0.89 |
| 26 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 27 |
90651-K03-M61 |
CIRCLIP (INNER) (18.8) Price: $0.78 |
| 28 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 29 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 30 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 31 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 32 |
95701-06016-08 |
BOLT, FLANGE (6X16) Price: $1.52 |
| 34 |
96001-06012-07 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $1.88 |
| 35 |
96001-06014-00 |
BOLT, FLANGE (6X14) Price: $1.88 |
| 36 |
46510-KJ9-000 |
SPRING, BRAKE LOCK CABLE RETURN (B) Price: $4.62 |
| 37 |
46620-K97-A01 |
CABLE, BRAKE LOCK Price: $25.02 |
| 38 |
47660-K97-A00 |
STAY, BRAKE LOCK Price: $40.11 |
| 39 |
90101-GJE-910 |
BOLT, SPECIAL (6X12) Price: $1.05 |
| 40 |
96001-06016-00 |
BOLT, FLANGE (6X16) Price: $1.10 |
