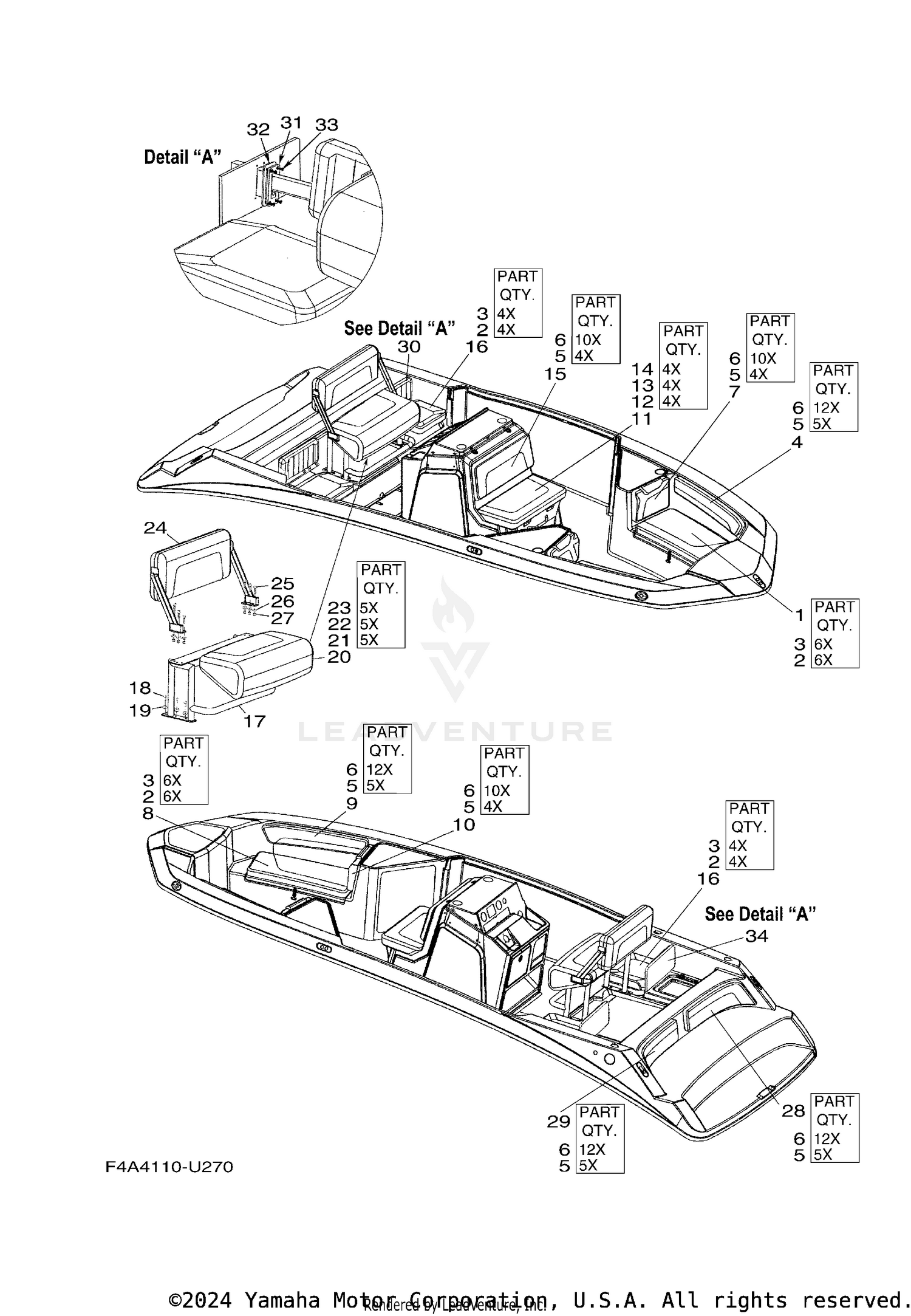

SEAT CUSHION
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 90209-14SA3-00 | WASHER Price: $5.99 |
| 13 | 90204-14S00-00 | WASHER, SPRING Price: $5.99 |
| 14 | 90170-14S00-00 | NUT Price: $4.99 |
| 17 | F4A-U3712-00-00 | BASE, DRIVER SEAT Price: $801.99 |
| 18 | 90152-14S20-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 19 | 90209-14SA6-00 | WASHER Price: $5.99 |
| 21 | 90209-14SA3-00 | WASHER Price: $5.99 |
| 22 | 90204-14S00-00 | WASHER, SPRING Price: $5.99 |
| 23 | 90170-14S00-00 | NUT Price: $4.99 |
| 25 | 90151-14S16-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 26 | 90209-14SA2-00 | WASHER Price: $1.99 |
| 27 | 90185-14S00-00 | NUT, SELF-LOCKING Price: $4.99 |
| 31 | F4T-UF8F7-00-00 | BASE, BACKREST 1 Price: $114.99 |
| 32 | F4A-U471E-00-00 | SPACER 1 Price: $43.99 |
| 33 | 90151-10S20-00 | SCREW, COUNTERSUNK Price: $0.45 |
