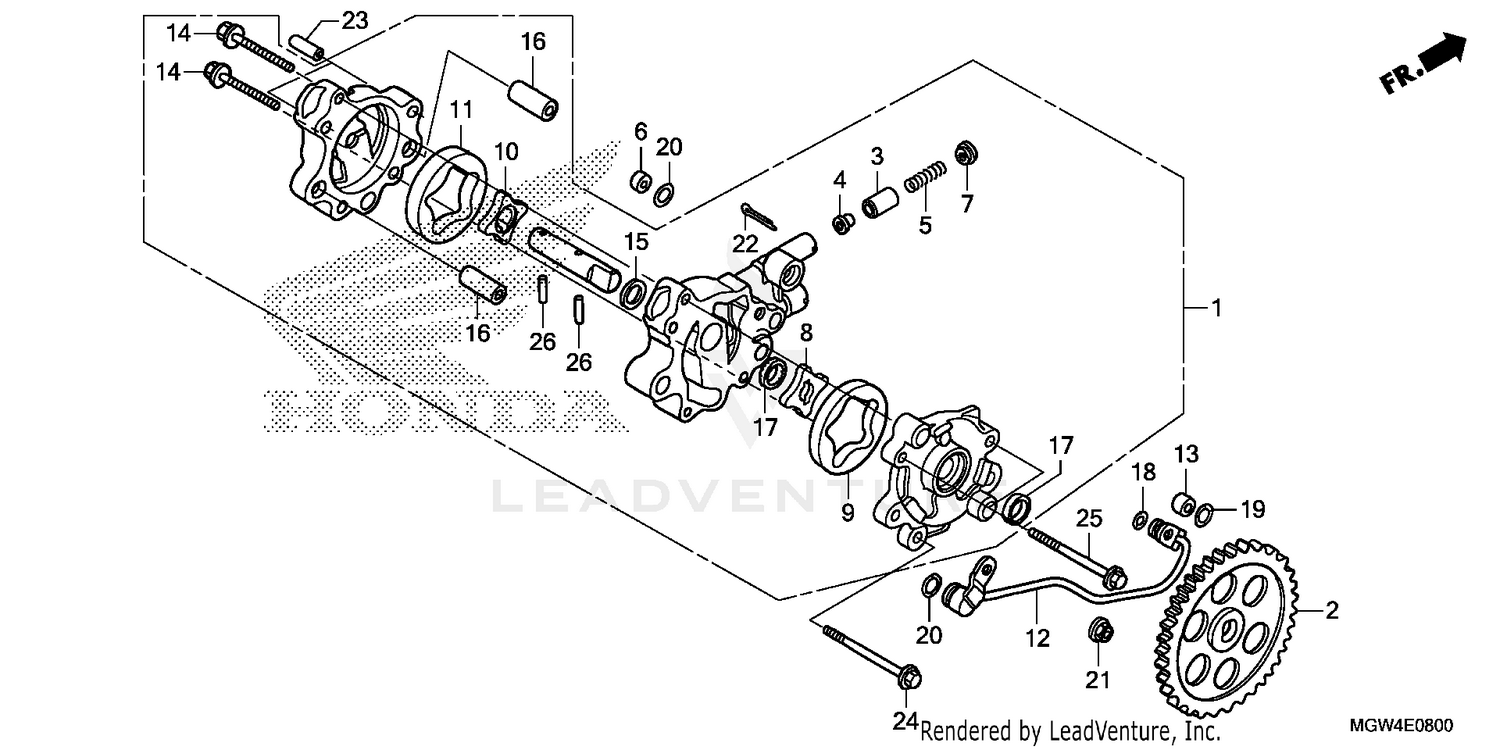

| Ref | Part Number | Description |
|---|
| 1 |
15100-MY6-670 |
PUMP ASSY., OIL Price: $208.27 |
| 2 |
15105-MN1-671 |
GEAR, OIL PUMP DRIVEN (47T) Price: $87.73 |
| 3 |
15106-MG3-000 |
VALVE, OIL LEAK STOPPER Price: $19.38 |
| 4 |
15107-MG3-000 |
OIL SEAL, LEAK STOPPER Price: $5.67 |
| 5 |
15108-MG3-000 |
SPRING, OIL LEAK STOPPER Price: $4.35 |
| 6 |
15109-MG3-000 |
ORIFICE (5.5MM) Price: $13.73 |
| 7 |
15111-MG3-000 |
SEAT B, SPRING Price: $3.33 |
| 8 |
15115-MG3-000 |
ROTOR A, OIL PUMP (INNER) Price: $19.35 |
| 9 |
15116-MG3-000 |
ROTOR A, OIL PUMP (OUTER) Price: $31.18 |
| 10 |
15121-MG3-000 |
ROTOR (INNER) Price: $23.20 |
| 11 |
15122-MG3-000 |
ROTOR (OUTER) Price: $35.78 |
| 12 |
15510-MK2-000 |
PIPE, OIL Price: $58.62 |
| 13 |
17958-197-300 |
HOLDER Price: $4.84 |
| 14 |
90014-ZE6-000 |
BOLT, FLANGE (6X35) (CT200) Price: $2.60 |
| 15 |
90456-333-000 |
WASHER, THRUST (11MM) Price: $3.04 |
| 16 |
90701-MG3-000 |
PIN, DOWEL (8X24) Price: $4.35 |
| 17 |
91208-MN1-771 |
OIL SEAL (11X15X3) (KOYO) Price: $10.49 |
| 18 |
91301-473-003 |
O-RING (7X1.7) Price: $3.11 |
| 19 |
91302-K95-AA1 |
O-RING (9.6X1.9) Price: $2.15 |
| 20 |
91306-MG3-000 |
O-RING (1.5X9.5) Price: $2.43 |
| 21 |
94050-06080 |
NUT, FLANGE (6MM) Price: $0.68 |
| 22 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-03200. Price: $1.08 |
| 23 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 24 |
96001-06055-00 |
BOLT, FLANGE (6X55) Price: $1.85 |
| 25 |
96001-06060-00 |
BOLT, FLANGE (6X60) Price: $2.27 |
