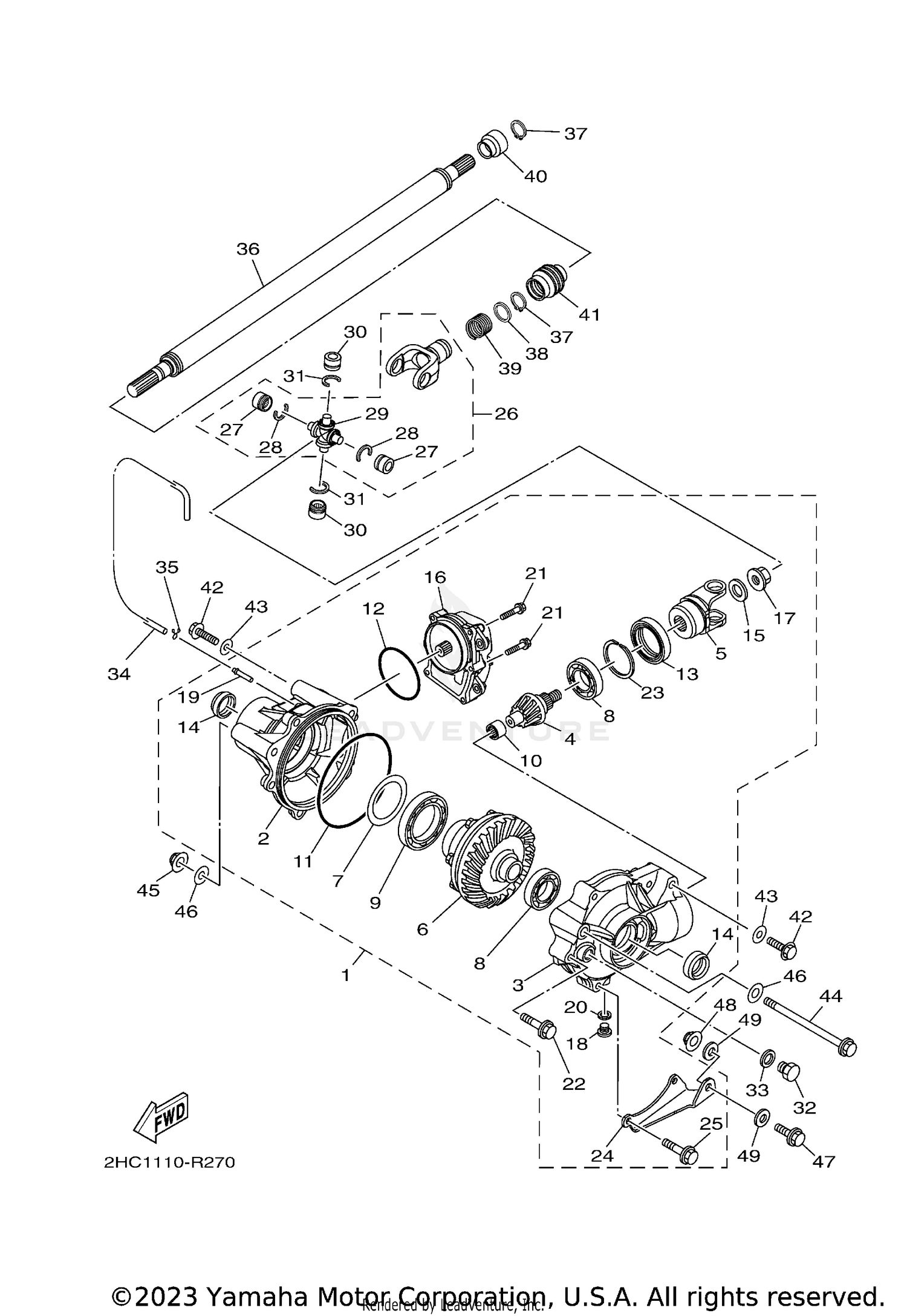

| Ref | Part Number | Description |
|---|
| 1 |
2HC-46160-12-00 |
FRONT AXLE GEAR CASE COMP. This part replaces 2HC-46160-11-00. Price: $2,003.99 |
| 2 |
1XD-46162-00-00 |
HOUSING, BEARING 2 Price: $426.99 |
| 3 |
2HC-46161-00-00 |
HOUSING, SHAFT DRIVE 2 Price: $199.99 |
| 4 |
2HC-46141-10-00 |
PINION, DRIVE 2 Price: $349.99 |
| 5 |
4S1-46146-01-00 |
YOKE, JOINT 2 Price: $179.99 |
| 6 |
2HC-46470-10-00 |
LIMITED SLIP DIFF. ASSY Price: $1,110.99 |
| 8 |
93306-00612-00 |
BEARING This part replaces 93306-00613-00. Price: $51.99 |
| 9 |
3B4-46164-00-00 |
BEARING 1 Price: $93.99 |
| 10 |
3B4-46166-00-00 |
BEARING 3 Price: $30.99 |
| 11 |
3B4-46134-00-00 |
O-RING 1 Price: $19.99 |
| 12 |
3B4-46135-00-00 |
O-RING 2 Price: $5.99 |
| 13 |
93105-46001-00 |
OIL SEAL Price: $23.99 |
| 14 |
3B4-46163-00-00 |
SEAL, OIL 1 Price: $19.99 |
| 15 |
90201-14021-00 |
WASHER, PLATE Price: $6.49 |
| 16 |
1HP-4616A-00-00 |
SERVO MOTOR COMP Price: $585.99 |
| 17 |
4WV-46145-11-00 |
NUT 1 This part replaces 4WV-46145-10-00. Price: $13.49 |
| 18 |
90340-10001-00 |
PLUG, STRAIGHT SCREW Price: $6.49 |
| 19 |
5GH-46293-00-00 |
TUBE Price: $7.49 |
| 20 |
90430-10003-00 |
GASKET Price: $9.49 |
| 21 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 22 |
95817-08040-00 |
BOLT, FLANGE This part replaces 95812-08040-00. Price: $7.49 |
| 23 |
3B4-46142-00-00 |
RING, HOLE SNAP 1 Price: $11.99 |
| 24 |
99999-04573-00 |
PLATE COVER This part replaces 2HC-46114-00-00. Price: $44.99 |
| 25 |
2HC-12228-00-00 |
BOLT Price: $4.00 |
| 26 |
2HC-46107-00-00 |
CROSS JOINT COMP. 2 Price: $220.99 |
| 27 |
93399-99948-00 |
BEARING Price: $60.99 |
| 28 |
93440-20088-00 |
CIRCLIP, OUTER Price: $9.49 |
| 29 |
5GT-46187-00-00 |
SPIDER Price: $117.99 |
| 30 |
93399-99948-00 |
BEARING Price: $60.99 |
| 31 |
93440-20088-00 |
CIRCLIP, OUTER Price: $9.49 |
| 32 |
90340-14029-00 |
PLUG, STRAIGHT SCREW Price: $4.60 |
| 33 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 34 |
90445-07047-00 |
HOSE (L1500) Price: $9.49 |
| 35 |
90467-07029-00 |
CLIP Price: $2.60 |
| 36 |
2HC-G6109-04-00 |
DRIVE SHAFT COMP. This part replaces 2HC-G6109-03-00. Price: $44.99 |
| 37 |
99009-19400-00 |
CIRCLIP Price: $9.49 |
| 38 |
90201-20266-00 |
WASHER, PLATE (T=1.0) Price: $10.49 |
| 39 |
90501-235L9-00 |
SPRING, COMPRESSION Price: $13.49 |
| 40 |
5GT-46137-00-00 |
SEAL 2 Price: $30.99 |
| 41 |
5GT-46136-00-00 |
SEAL 1 Price: $18.99 |
| 42 |
90105-10255-00 |
BOLT, FLANGE Price: $9.49 |
| 43 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 44 |
90105-12066-00 |
BOLT, FLANGE Price: $13.49 |
| 45 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 46 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
| 47 |
90101-10038-00 |
BOLT Price: $8.49 |
| 48 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
