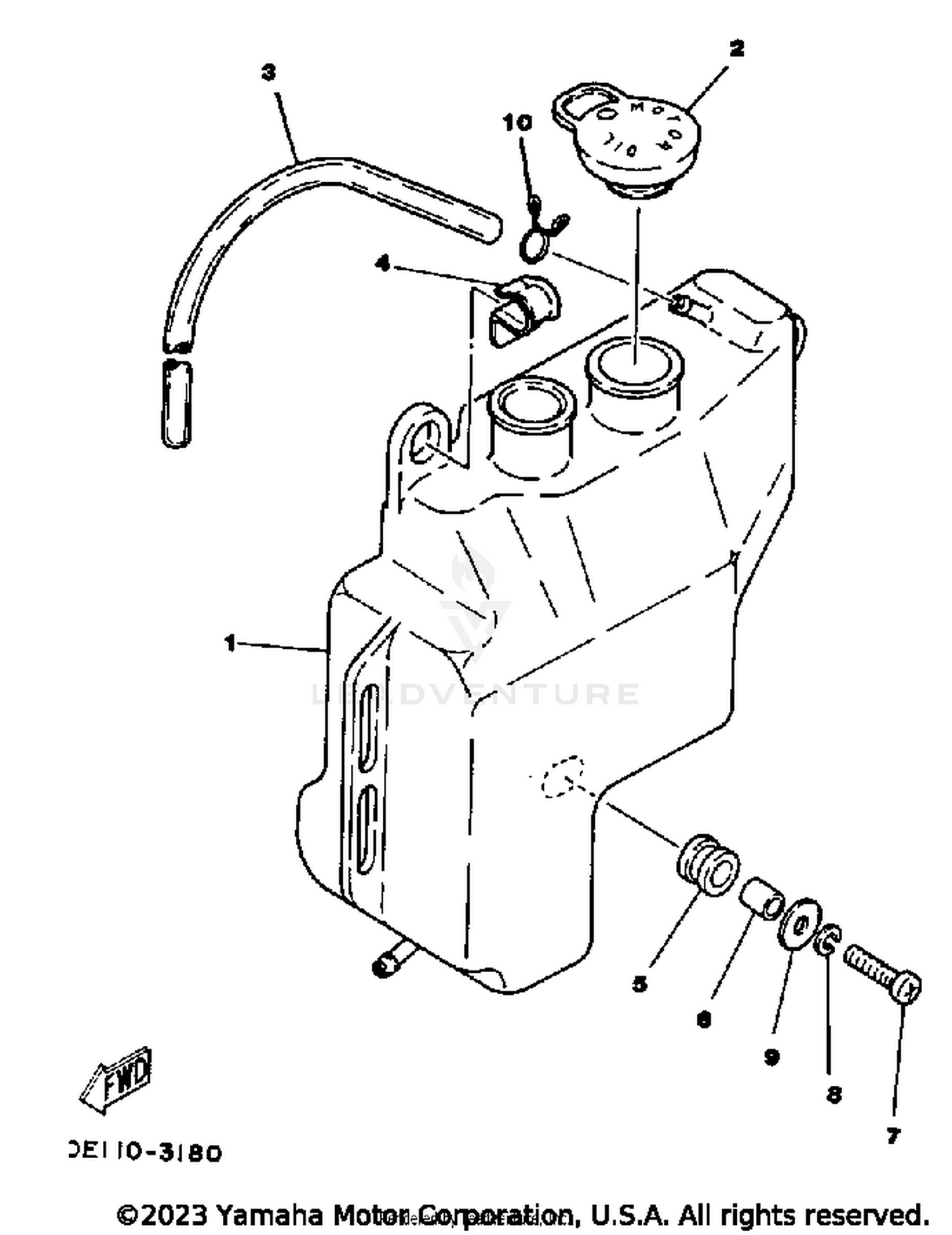

OIL TANK
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3X3-21751-00-00 | TANK, OIL Price: $33.80 |
| 2 | 1T9-21771-01-00 | BODY, CAP This part replaces 1T9-21771-00-00. Price: $8.49 |
| 3 | 90445-090F6-00 | HOSE (L675) This part replaces 90445-09111-00. Price: $34.99 |
| 4 | 90462-06044-00 | CLAMP Price: $1.15 |
| 5 | 90480-13238-00 | GROMMET Price: $4.00 |
| 6 | 90387-06026-00 | COLLAR Price: $9.49 |
| 7 | 98517-06025-00 | SCREW, PAN HEAD This part replaces 98511-06025-00. Price: $4.05 |
| 8 | 92995-06100-00 | WASHER, PAN HEAD Price: $3.45 |
| 9 | 90201-06057-00 | WASHER, PLATE This part replaces 90201-06059-00. Price: $6.49 |
