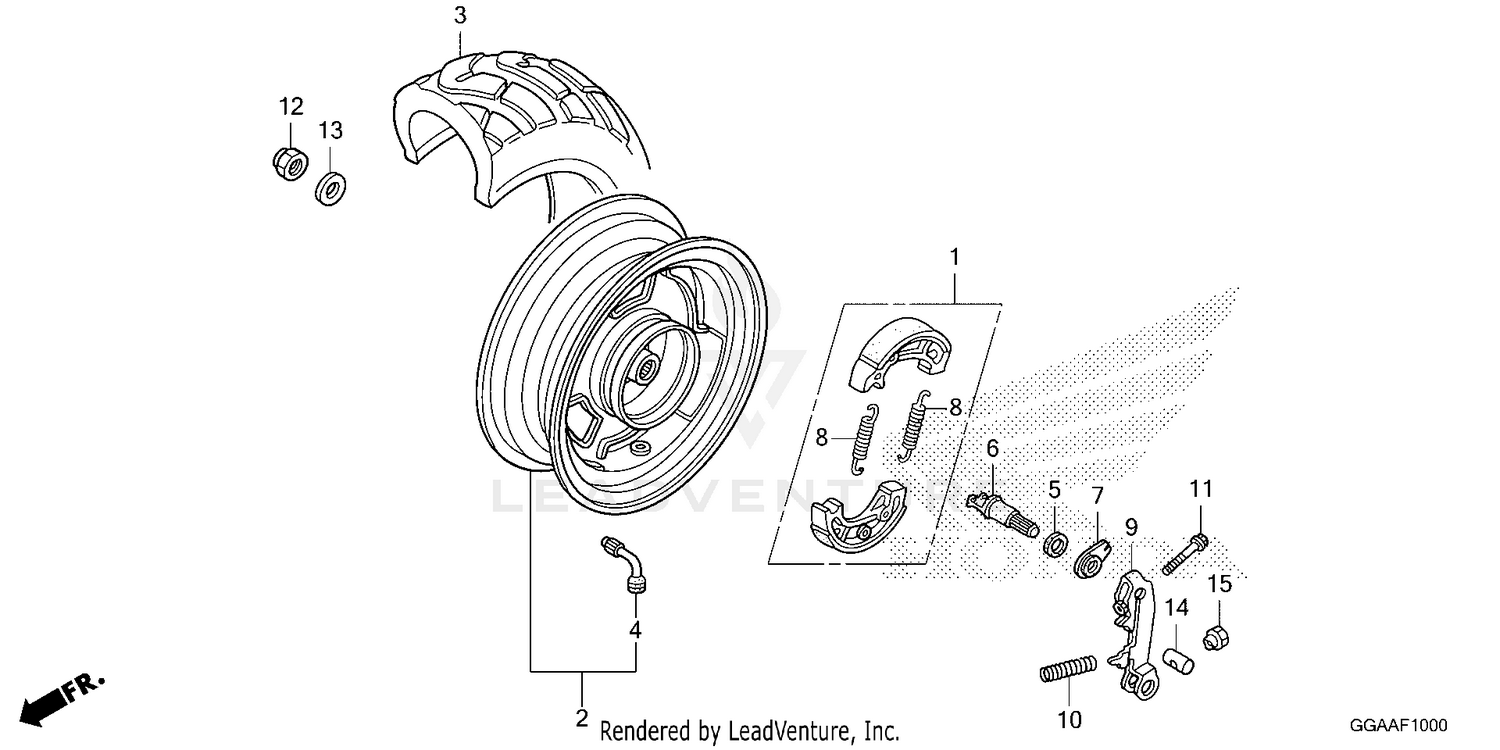

| Ref | Part Number | Description |
|---|
| 1 |
06430-GCW-000 |
SHOE SET, BRAKE (ASK) Price: $36.44 |
| 2 |
42650-GGA-305ZA |
WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 42650-GEZ-672ZA. Price: $184.09 |
| 3 |
42711-GEZ-675 |
TIRE This part replaces 42711-GEZ-674. Price: $75.02 |
| 4 |
42753-GEZ-019 |
VALVE, RIM (KENDA) Price: $10.96 |
| 5 |
43134-196-000 |
SEAL, BRAKE CAM Price: $2.93 |
| 6 |
43141-GR0-003 |
CAM, RR. BRAKE Price: $19.29 |
| 7 |
43145-GN2-000 |
INDICATOR, RR. BRAKE This part replaces 43145-GK8-000. Price: $4.89 |
| 8 |
43151-GC4-000 |
SPRING, BRAKE SHOE Price: $6.00 |
| 9 |
43410-GEZ-000 |
ARM, RR. BRAKE Price: $13.67 |
| 10 |
43472-KG8-000 |
SPRING, RR. BRAKE ARM Price: $4.69 |
| 11 |
90112-GG2-900 |
BOLT, FLANGE (5X25) Price: $5.27 |
| 12 |
90305-197-013 |
NUT, AXLE (14MM) Price: $7.71 |
| 13 |
90501-GAH-000 |
WASHER (26X14X2.8) Price: $8.33 |
| 14 |
95015-31001 |
JOINT A, BRAKE ARM Price: $1.68 |
