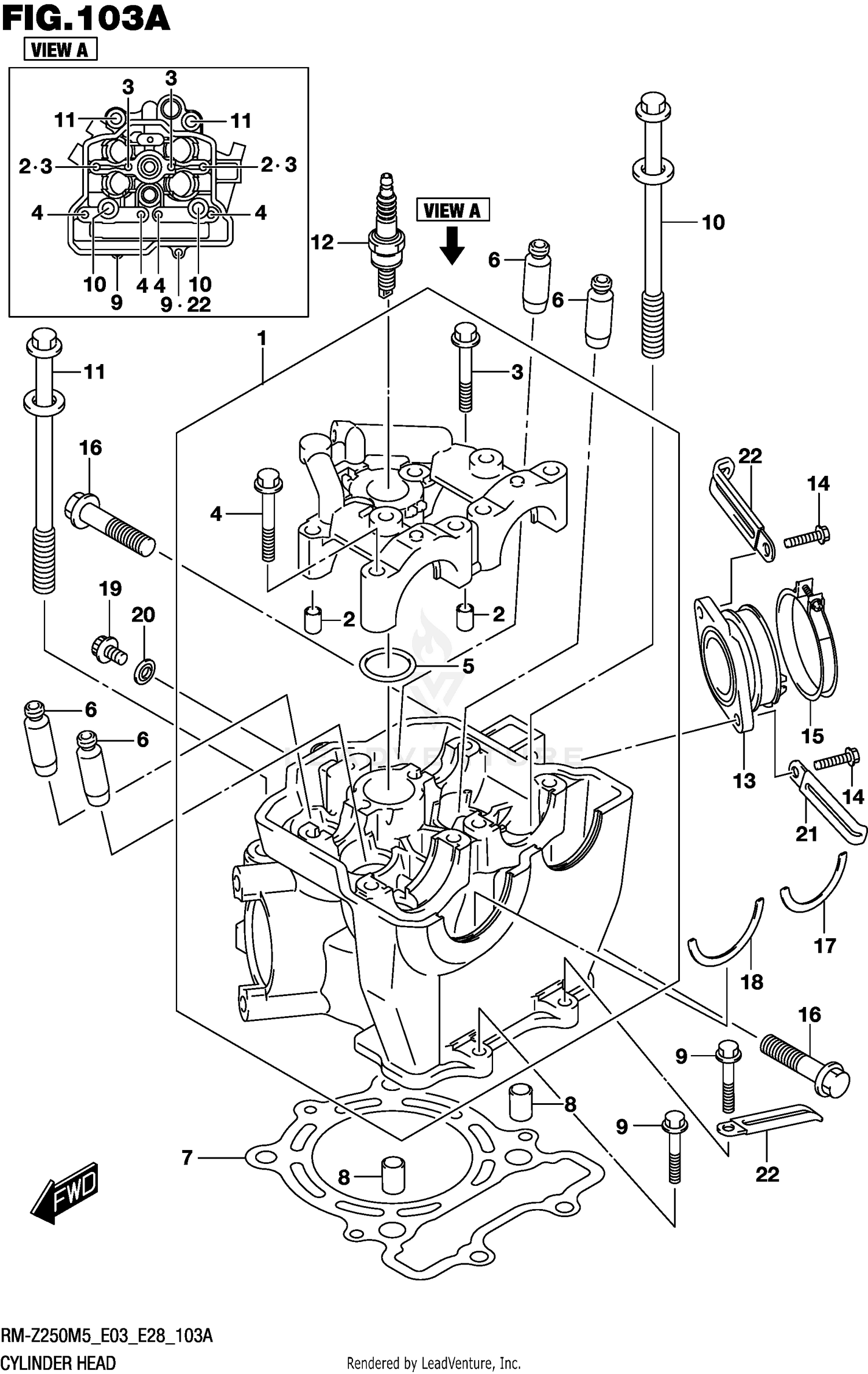

CYLINDER HEAD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-46K00 | HEAD ASSY,CYLINDER Price: $751.49 |
| 8 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 9 | 01547-0625A | BOLT Price: $2.45 |
| 10 | 11117-10H00 | BOLT,CYLINDER HEAD (10X124) Price: $18.41 |
| 11 | 11117-10H10 | BOLT,CYLINDER HEAD (10X124) Price: $20.53 |
| 12 | 09482-00584 | PLUG,SPARK (CR8EIB-10) Price: $14.36 |
| 13 | 13101-46K01 | PIPE ASSY,INTAKE Price: $66.23 |
| 14 | 01547-0620A | BOLT Price: $2.45 |
| 15 | 13170-35G01 | CLAMP,INTAKE PIPE Price: $16.89 |
| 16 | 09103-10342 | BOLT (10X32) Price: $4.74 |
| 17 | 12749-49H00 | C-RING Price: $4.64 |
| 18 | 12749-49H10 | C-RING Price: $5.23 |
| 20 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 21 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
