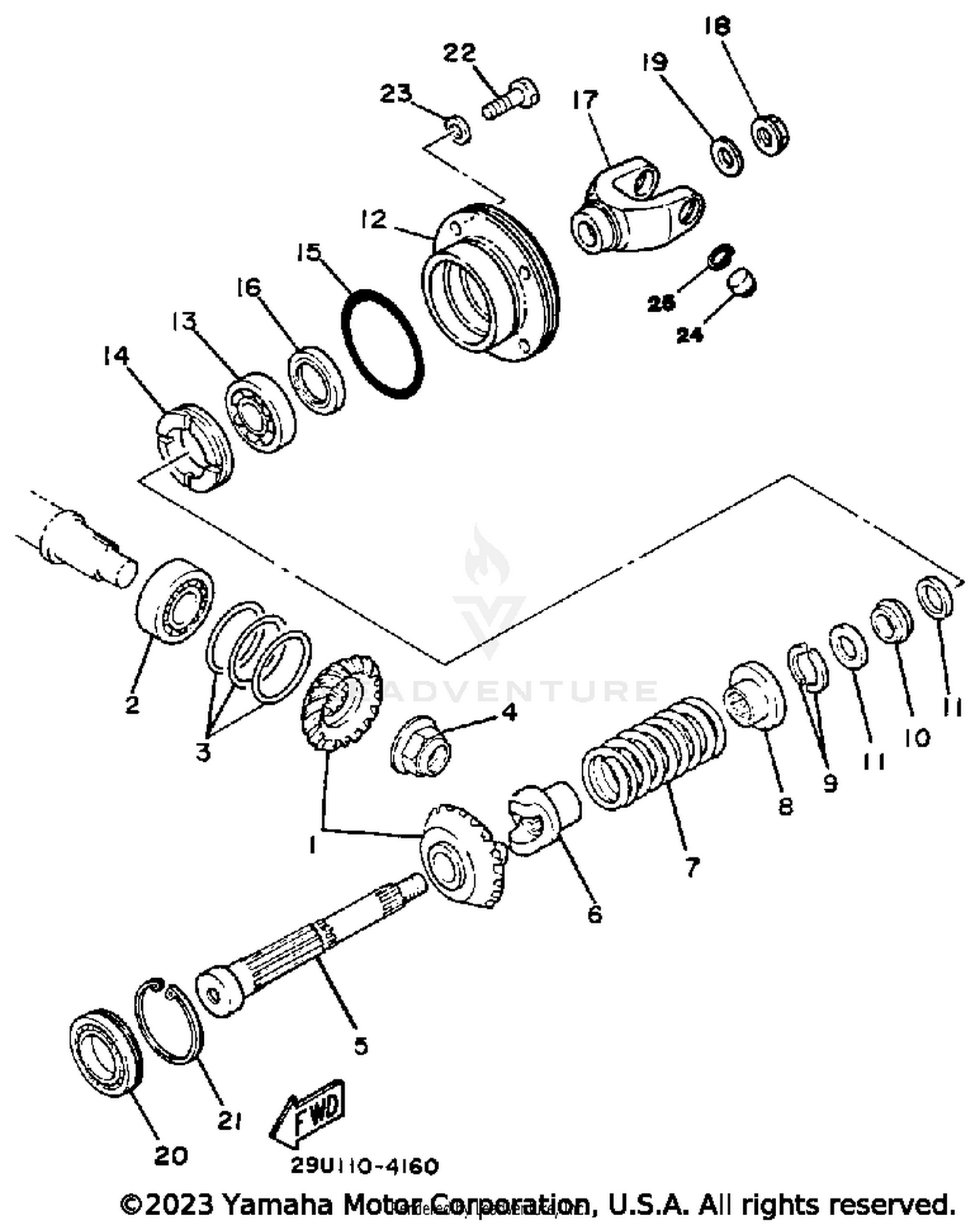

| Ref | Part Number | Description |
|---|
| 1 |
24W-Y1754-00-00 |
MIDDLE GEAR COMP Price: $247.99 |
| 2 |
93306-30442-00 |
BEARING (4ED) This part replaces 93306-30432-00. Price: $74.99 |
| 4 |
90179-16651-00 |
NUT This part replaces 90179-16417-00. Price: $16.99 |
| 5 |
24W-17553-00-00 |
SHAFT, MDL DRIVEN Price: $79.99 |
| 6 |
24W-17527-01-00 |
CAM, DRIVEN (24W-17527-00) Price: $33.99 |
| 7 |
90501-60737-00 |
SPRING,COMPRESSION Price: $16.49 |
| 8 |
24W-17524-00-00 |
HOLDER Price: $18.17 |
| 9 |
3H5-17529-00-00 |
WASHER, THRUST Price: $8.49 |
| 10 |
24W-46129-00-00 |
SPACER,EXPANSION Price: $21.99 |
| 11 |
90201-173G4-00 |
WASHER,PLATE Price: $4.37 |
| 12 |
29U-17551-00-00 |
HOUSING,BEARING Price: $108.99 |
| 13 |
93306-30302-00 |
BEARING (B6303) Price: $49.99 |
| 14 |
90179-50416-00 |
NUT,SPEC'L SHAPE Price: $6.49 |
| 15 |
93210-56589-00 |
O-RING Price: $9.49 |
| 16 |
93101-26117-00 |
OIL SEAL,S-TYPE Price: $6.49 |
| 17 |
29U-17556-01-00 |
YOKE,JOINT Price: $200.99 |
| 18 |
90179-12657-00 |
NUT This part replaces 90179-12421-00. Price: $6.49 |
| 19 |
90201-12027-00 |
WASHER, PLATE This part replaces 90201-125F7-00. Price: $9.49 |
| 20 |
93316-00604-00 |
BEARING Price: $43.99 |
| 21 |
93440-55122-00 |
CIRCLIP,OUTER Price: $8.49 |
| 22 |
97013-08025-00 |
BOLT, KICK CRANK Price: $9.49 |
| 23 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 24 |
93399-99920-00 |
BEARING Price: $35.99 |
