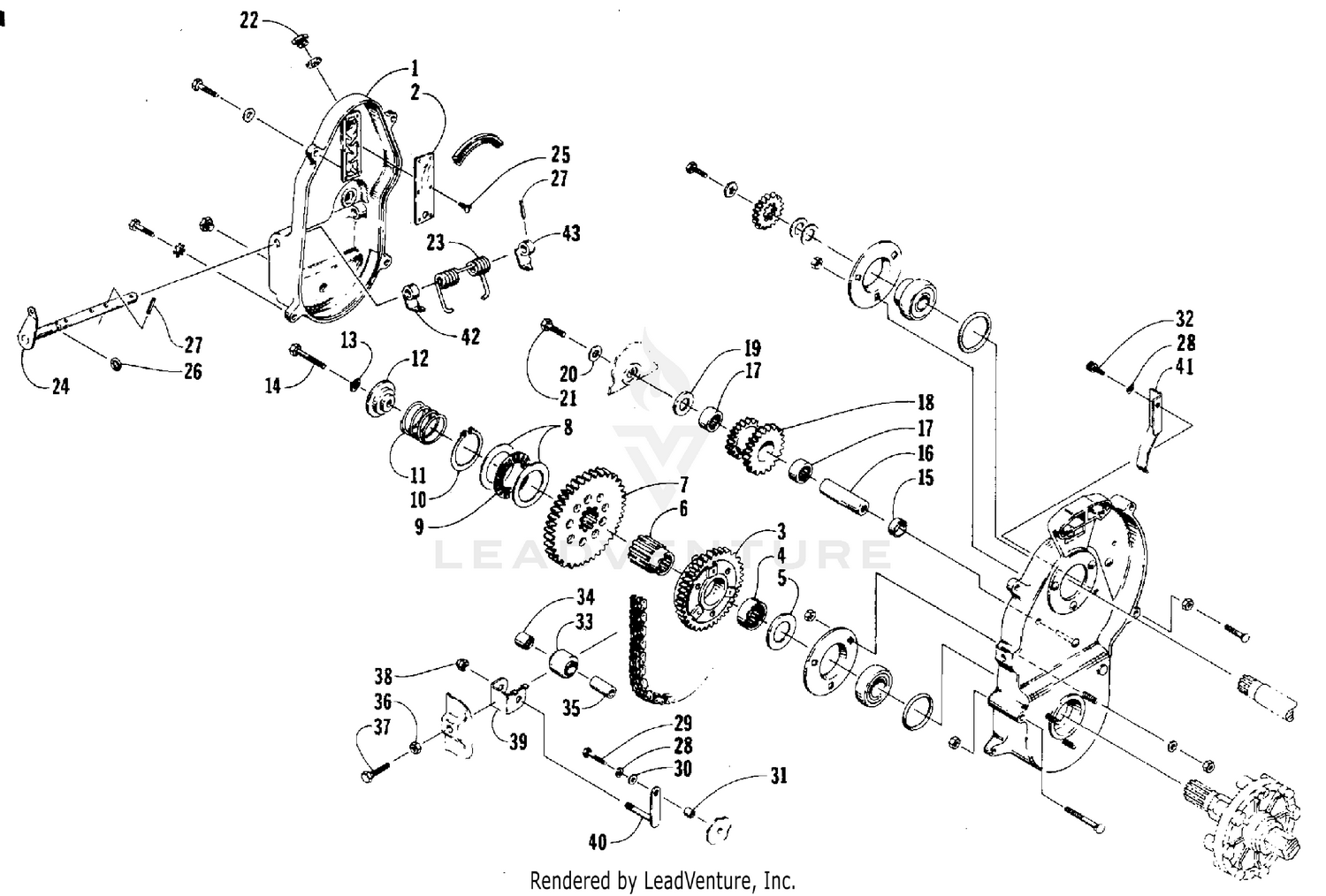

DRIVE/REVERSE DROPACASE ASSEMBLY [55280]

Parts (42)

Ref	Part Number	Description
1	0602-228	COVER,DROPCASE-REV-MACH Price: $89.95
2	1602-151	Cover, Oil Vent Price: $46.95
3	0702-065	GEAR SET,39T REPLACEMENT Price: $433.14
3	0702-066	GEAR SET,35T REPLACEMENT Price: $499.95
4	0602-016	Bearing Price: $25.95
5	0602-012	Spacer Price: $17.63
6	0602-013	SHAFT, DRIVE EXTENSION Price: $130.95
7	0602-100	GEAR, REVERSE - 55T Price: $284.95
8	0602-023	Washer, Thrust Price: $16.92
9	0602-022	Bearing, Thrust Price: $23.53
10	0602-024	Ring, Retaining Price: $1.19
11	0602-103	Spring, Return Price: $6.32
12	1602-047	Retainer, Extension Shaft Price: $66.95
13	8051-277	Washer, Lock Price: $1.70
14	8002-229	Screw, Cap Price: $1.70
15	0602-093	SPACER,REV SHAFT-.647X.812X.300 THICK Price: $8.21
16	0602-094	Shaft, Reverse Price: $45.95
17	0602-018	Bearing Price: $20.56
18	0702-002	IDLER,REVERSE W/BG Price: $340.06
19	0602-031	DRIVE, ADAPTER (INC. 21) Price: $8.95
20	8050-242	Washer Price: $2.26
21	8002-130	SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y Price: $0.84
22	0602-113	PLUG, DROPCASE - UPPER W/VENT Price: $1.95
23	0602-019	FORK, SHIFT Price: $47.95
24	0702-017	SHAFT, SHIFT FORK Price: $12.95
25	0623-081	Screw, Self-Tapping Price: $0.35
26	0602-021	Seal, O-Ring Price: $0.55
27	8070-314	Pin, Spring Price: $1.20
28	8051-217	Washer, Lock Price: $0.29
29	8002-040	Screw, Cap Price: $0.44
30	8050-217	Washer, Flat Price: $0.24
31	0107-234	Spacer Price: $15.67
32	8005-490	SCREW, SOCKET HEAD Price: $0.79
33	0702-067	ROLLER,CHAIN TIGHTENER-ASSY Price: $109.95
35	0602-095	SHAFT, CHAIN ROLLER Price: $23.95
36	0123-150	Nut Price: $0.48
37	0123-731	SCREW, CAP Price: $0.59
38	8041-366	Nut, Lock Price: $0.35
39	0602-091	Bracket, Chain Roller Price: $32.95
40	0702-022	PIN, LINK - THD. Price: $24.95
41	0602-132	BRACKET,CHAIN BACKING Price: $22.38
42	0702-032	RETURN, SHIFT FORK - R.H. Price: $6.95
