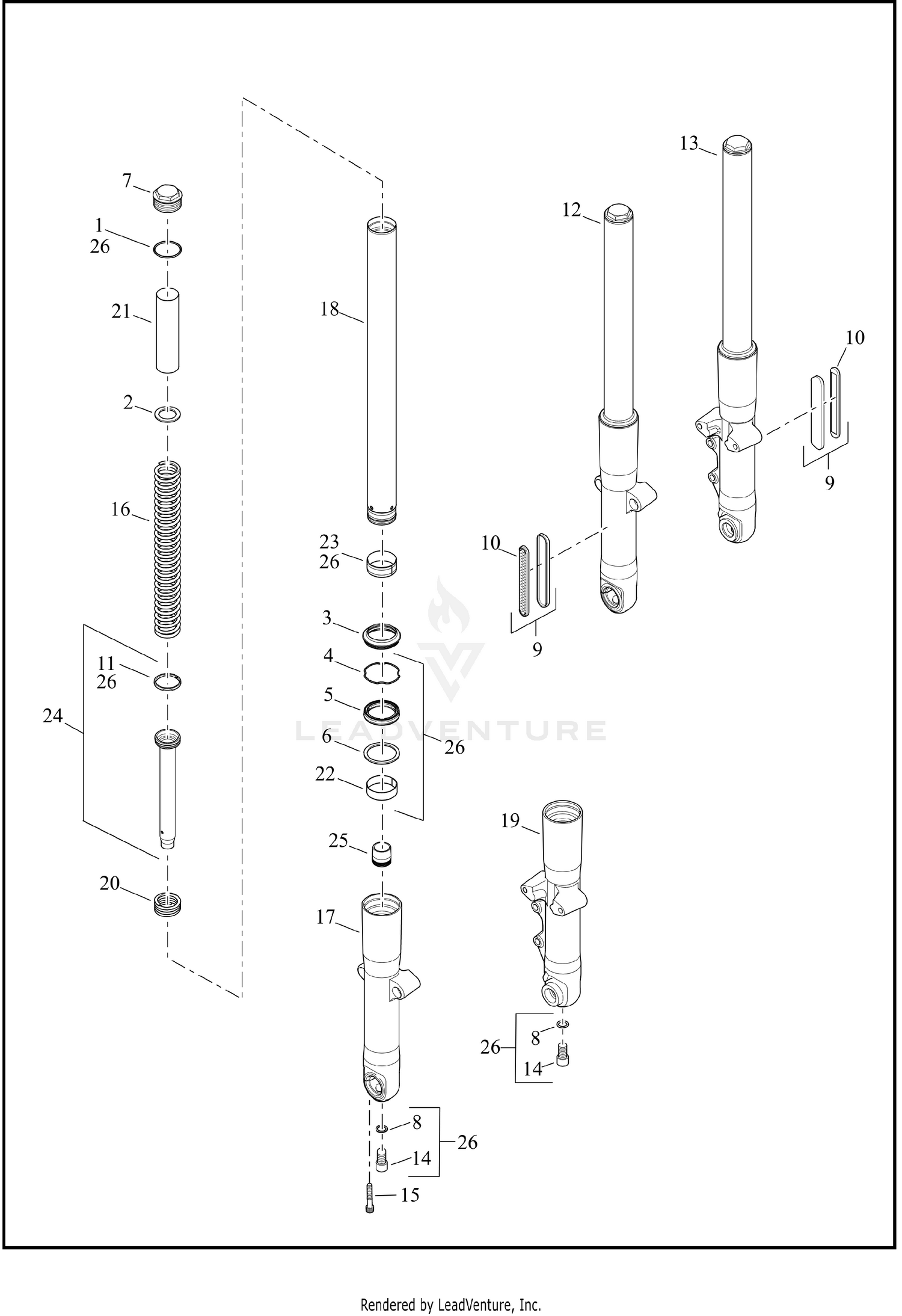

| Ref | Part Number | Description |
|---|
| 1 |
46508-01 |
O-RING Price: $2.04 |
| 2 |
46509-01 |
WASHER Price: $1.22 |
| 3 |
46512-01A |
DUST SEAL,FORK(PO) Price: $8.75 |
| 4 |
46513-01 |
RING STOPPER Price: $2.76 |
| 5 |
46514-01A |
OIL SEAL,FORK(PO) Price: $8.45 |
| 6 |
46515-01 |
SPACER SEAL Price: $5.36 |
| 8 |
46615-06 |
CU PACKING Price: $1.02 |
| 11 |
22000031 |
PISTON RING Price: $1.75 |
| 14 |
45500118 |
HSHCS,M14X1.25-25(PO) Price: $10.60 |
| 15 |
45500132 |
HSHCS,M8X1.25-45 Price: $1.17 |
| 16 |
45500892 |
SPRING,FR TLSCP FORK,COMPRESSION Price: $62.92 |
| 20 |
45500396 |
SPRING,FR TLSCP FORK,REBOUND Price: $11.02 |
| 21 |
45500398 |
FR TLSCP FORK SUB-CMPNT,SPRING COLLAR Price: $11.02 |
| 22 |
45500421 |
FR TLSCP FORK SUB-CMPNT,GUIDE BUSHING Price: $13.92 |
| 23 |
45500424 |
FR TLSCP FORK SUB-CMPNT,SLIDER BUSHING Price: $14.47 |
| 25 |
45500512 |
FR TLSCP FORK SUB-CMPNT,OIL LOCK PIECE Price: $23.72 |
