Home / POWERSPORTS / SNOWMOBILE / 2013 / 2013 BEARCAT Z1 XT INTERNATIONAL BLUE [S2013BCNWTOSL] / HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [97519]

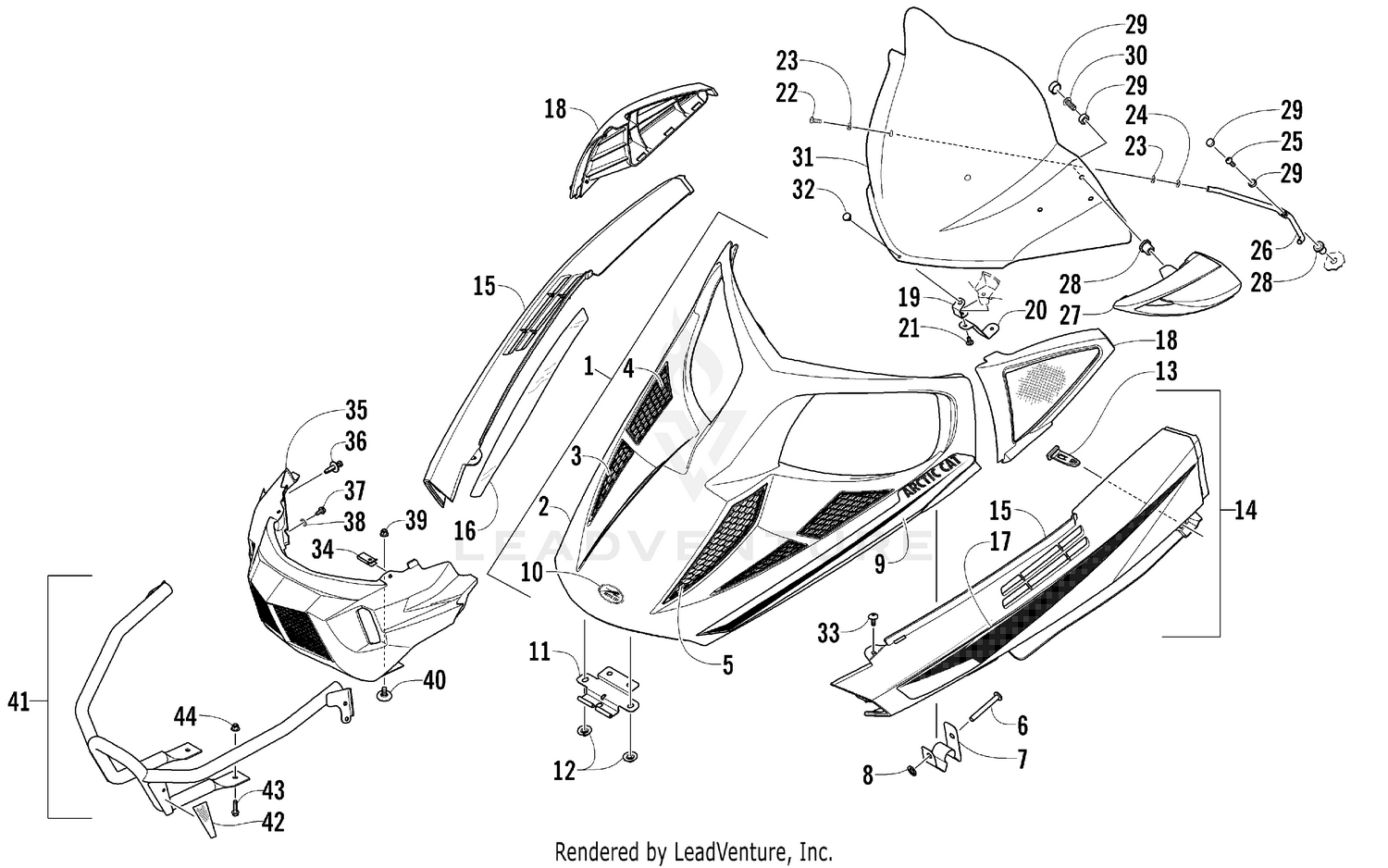

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [97519]

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [97519]

Parts (47)

RefPart NumberDescription
3 4606-624 Vent, Hood - Outer Front - Right - Black Price: $21.77
3 4606-625 Vent, Hood - Outer Front - Left - Black Price: $1.79
4 4606-640 Vent, Hood - Outer Rear - Right - Black Price: $21.77
4 4606-641 Vent, Hood - Outer Rear - Left - Black Price: $21.77
5 4606-614 Vent, Hood Lid - Inner - Right Hand - Mold (Black) Price: $25.78
5 4606-615 Vent, Hood Lid - Inner - Left Hand - Mold (Black) Price: $27.95
6 1623-610 Pin, Retaining Price: $26.95
7 5706-084 Clip, Hood Hold-Down - Right Price: $18.13
7 5706-085 Clip, Hood Hold-Down - Left Price: $18.13
8 1623-409 Retainer, Pushnut Price: $0.19
9 9611-756 Decal, “Arctic Cat” - Right Price: $0.67
9 9611-757 Decal, “Arctic Cat” - Left Price: $0.67
10 9611-751 Decal, "Arctic Cat" Price: $39.14
11 6606-027 Bracket, Hinge Price: $24.20
12 1623-469 Nut, Stamped Price: $1.32
13 4606-926 Strap, Hold-Down Price: $4.84
15 4706-950 Spar, Front - w/o Decals - Right - Black Price: $564.36
15 4706-951 Spar, Front - w/o Decals - Left - Black Price: $234.95
16 4606-934 Foil, Spar - Right Price: $1.70
17 9611-754 Decal, Front Spar - Right Price: $90.67
17 9611-755 Decal, Front Spar - Left Price: $80.95
18 4706-690 Bezel, Intake - Right Blue Price: $71.95
18 4706-691 Bezel, Intake - Left Blue Price: $61.95
19 4606-961 Bracket, Windshield - Hold-Down Price: $19.35
20 5606-277 Bracket, Windshield Price: $33.95
21 1623-129 Screw, Self-Tapping Price: $0.29
22 1623-902 Screw, Machine Price: $11.89
23 1623-837 Washer, Rubber Price: $10.66
24 8050-242 Washer Price: $2.26
25 0623-121 Screw, Machine Price: $5.21
26 5706-073 SUPPORT,WINDSHIELD-PTD BLK Price: $15.71
28 0623-845 Nut, Expansion Price: $2.66
29 0124-054 Cap, Snap - Washer Price: $1.32
30 0623-902 Screw, Machine Price: $1.08
31 6606-263 Windshield Price: $208.95
32 1623-677 Rivet, Plastic Price: $1.45
33 0623-797 Screw, Self-Tapping Price: $0.42
34 1623-030 Clip, U-Nut Price: $1.08
35 4706-686 Fascia, Front Black Price: $128.95
36 0623-362 Rivet, Reinstallable Price: $0.71
37 0623-966 Screw, Self-Tapping Price: $1.20
38 8053-242 Washer, External Tooth Lock Price: $1.53
39 8427-602 Nut, Hex Price: $0.23
40 1623-775 SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y Price: $1.92
42 9611-386 Decal, Reflector - Right - Amber Price: $20.75
42 9611-387 Decal, Reflector - Left - Amber Price: $22.41
43 8408-025 SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y Price: $3.38
