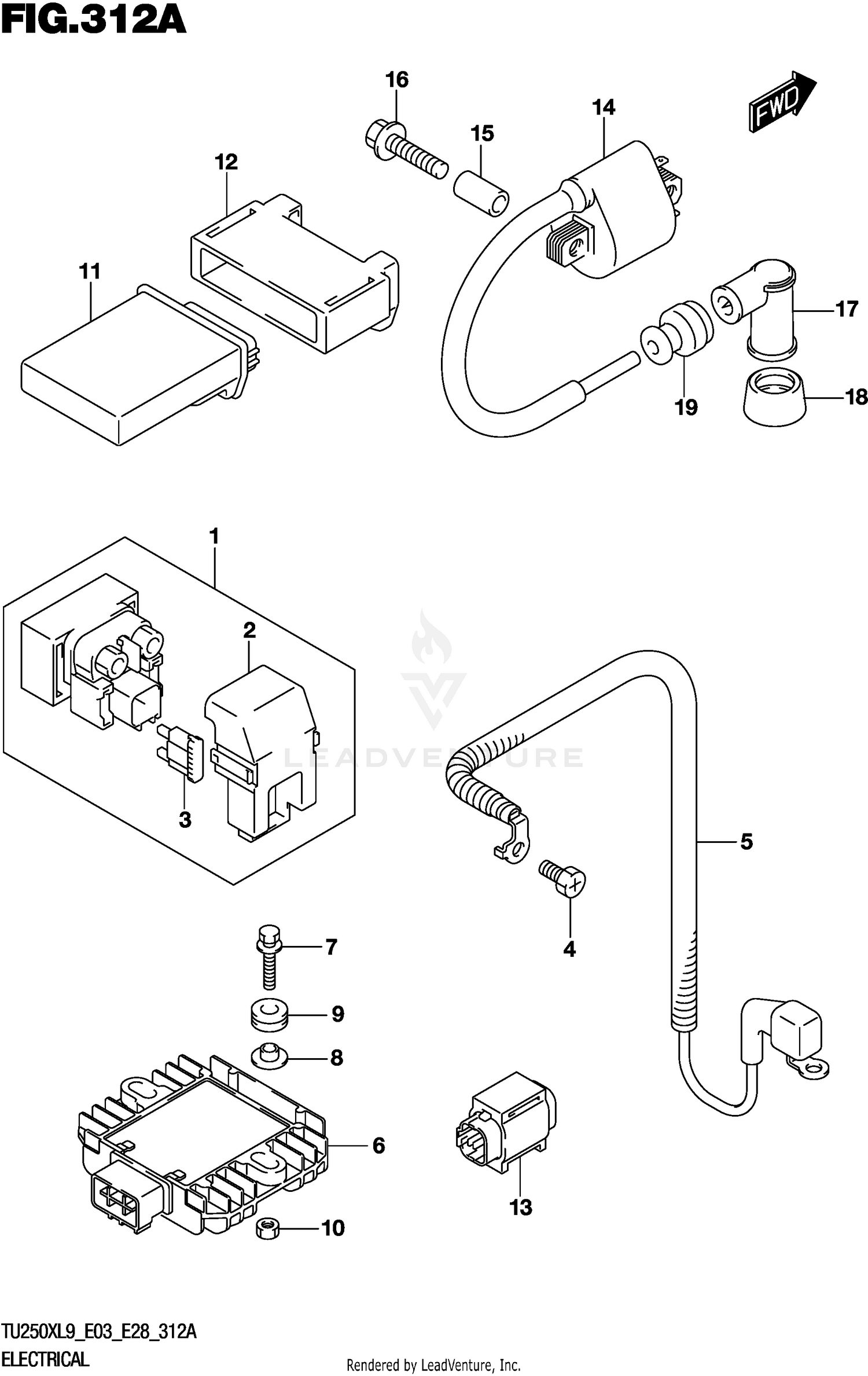

ELECTRICAL
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-06G02 | RELAY ASSY, STARTING MOTOR This part replaces 31800-06G00. Price: $83.16 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 33810-26G20 | WIRE Price: $35.60 |
| 6 | 32800-20H00 | RECTIFIER ASSY Price: $341.23 |
| 7 | 09116-06103 | BOLT (6X30) Price: $3.31 |
| 8 | 09180-06325 | SPACER (6.2X8.4X6.9) Price: $4.68 |
| 9 | 09320-08066 | CUSHION (8.4X18X6) Price: $10.04 |
| 10 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 11 | 32920-26G32 | CONTROL UNIT,FI This part replaces 32920-26G31. Price: $420.21 |
| 12 | 32980-26G10 | CUSHION Price: $9.12 |
| 13 | 33960-06G10 | SENSOR ASSY, FUEL CUT Price: $111.08 |
| 14 | 33410-26G01 | COIL ASSY,IGNITION Price: $129.31 |
| 15 | 09180-06174 | SPACER (6.2X12X14) Price: $6.87 |
| 16 | 01547-0630B | BOLT Price: $3.28 |
| 17 | 33510-97313 | CAP, SPARK PLUG This part replaces 33510-22010. Price: $18.20 |
| 18 | 33541-38210 | SEAL, SPARK PLUG CAP Price: $5.94 |
