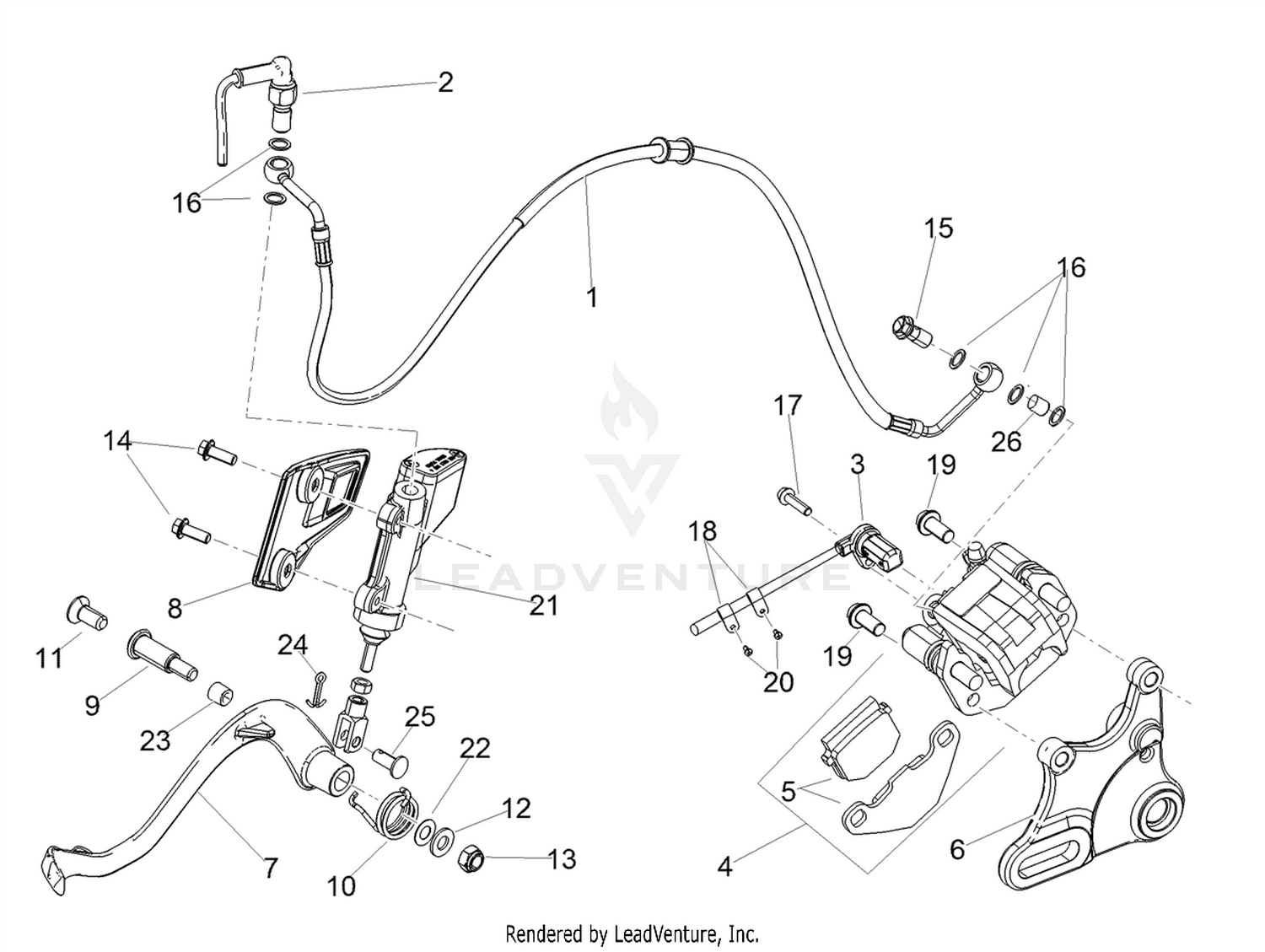

Rear brake system
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2R000361 | Rear brake hose Price: $14.74 |
| 2 | 2R000379 | Stop switch Price: $23.38 |
| 3 | 859792 | ABS sensor Price: $33.80 |
| 4 | 2R000372 | Brake caliper Price: $206.00 |
| 5 | 2R000504 | Brake pads couple Price: $72.83 |
| 6 | 2B004224 | Caliper support bracket Price: $35.11 |
| 7 | 865585 | Brake lever Price: Call Us |
| 8 | 863552 | Cover Price: Call Us |
| 9 | 2R000475 | Fixing pin Price: $7.89 |
| 10 | 00H01102072 | Spring Price: Call Us |
| 11 | 2R000480 | Lever screw Price: $0.53 |
| 12 | 2R000419 | Washer Price: $0.09 |
| 13 | 2R000441 | Nut Price: $0.29 |
| 15 | 2R000377 | Oil pipe screw Price: $1.20 |
| 16 | 2R000375 | Washer Price: $0.29 |
| 17 | 2B002567 | Flanged hexagon screw Price: $0.18 |
| 18 | 864114 | Fairlead Price: Call Us |
| 19 | 2B002417 | Screw w/ flange Price: $2.70 |
| 21 | 2R000490 | Rear master cylinder Price: $77.18 |
| 22 | 00005527540 | Washer Price: $2.70 |
| 23 | 2R000476 | Bush Price: $1.62 |
| 24 | 2R000541 | Split pin Price: $0.48 |
| 25 | 2R000540 | Pin Price: $0.05 |
